Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

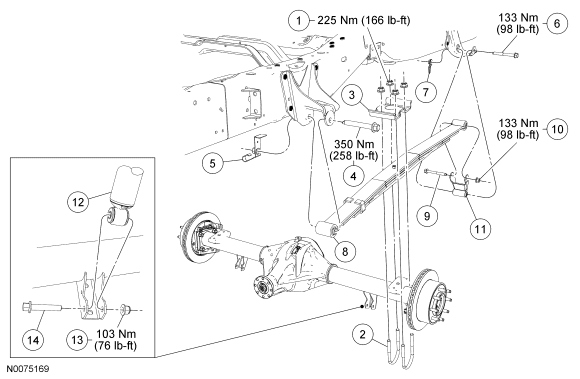

| Item | Part Number | Description |
|---|---|---|
| 1 | W520116 | U-bolt nut (4 required) |
| 2 | N803914 | U-bolt (2 required) (E-150, E-250 and E-350 Van and wagon) |
| 2 | 5705 | U-bolt (2 required) (E-450) |
| 2 | N804419 | U-bolt (2 required) (E-350 Regular cab and cutaway) |
| 3 | 5798 | U-bolt plate |
| 4 | W713561 | Leaf spring front bracket bolt |
| 5 | N807044 | Leaf spring front bracket flag nut (RH side) |
| 5 | 2B615 | Leaf spring front bracket flag nut (LH side) |
| 6 | N806568 | Leaf spring shackle-to-bracket bolt |
| 7 | N805408 | Leaf spring shackle-to-bracket flag nut |
| 8 | 5560 | Leaf spring |
| 9 | W707529 | Leaf spring-to-shackle bolt |
| 10 | W520115 | Leaf spring-to-shackle nut |
| 11 | 5776 | Leaf spring shackle |
| 12 | 18125 | Shock absorber |
| 13 | W520214 | Shock absorber lower nut |
| 14 | W708737 | Shock absorber lower bolt |
