Wheel Speed Sensor Ring - Rear: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

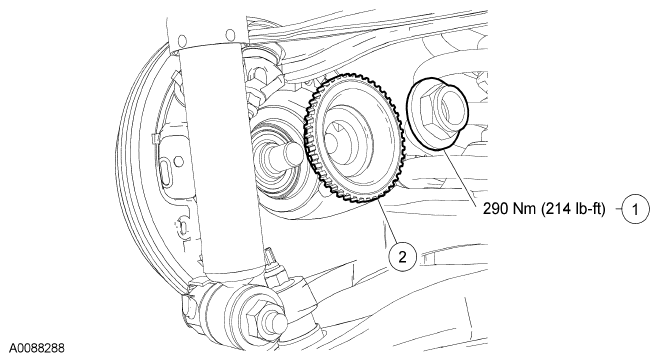

Fig 1: Rear Wheel Speed Sensor Ring And Hub Nut With Torque Specification
G06094617Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 W705967 Rear wheel hub nut
2 2C1869 Sensor ring
