Front Impact Severity Sensor: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

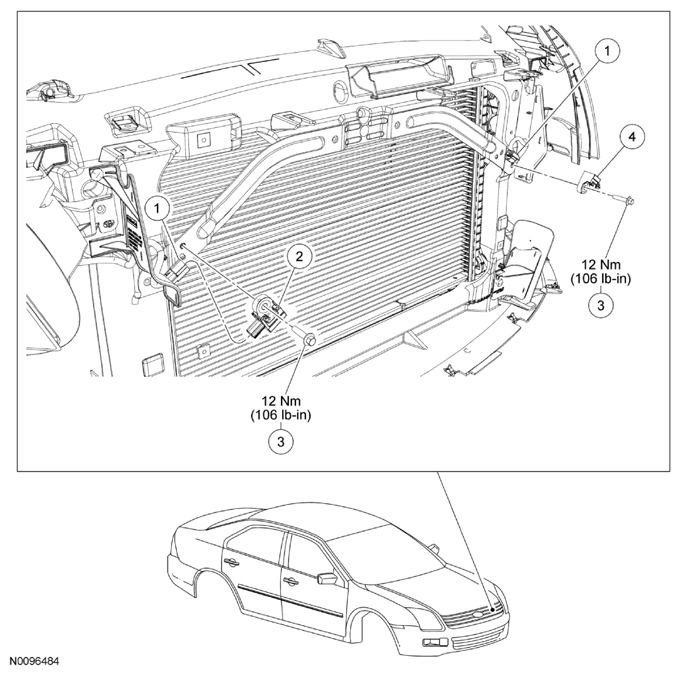

Courtesy of FORD MOTOR CO. ITEM DESCRITPION
| Item |
Part Number |
Description |
| 1 |
- |
Front impact severity sensor electrical connectors (part of 14290) |
| 2 |
14B006 |
RH front impact severity sensor |
| 3 |
W505256 |
Front impact severity sensor bolts |
| 4 |
14B006 |
LH front impact severity sensor |
