Steering Wheel: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

STEERING WHEEL SPECIAL TOOL

Remover, Differential Bearing 205-116 (T77F-4220-B1)

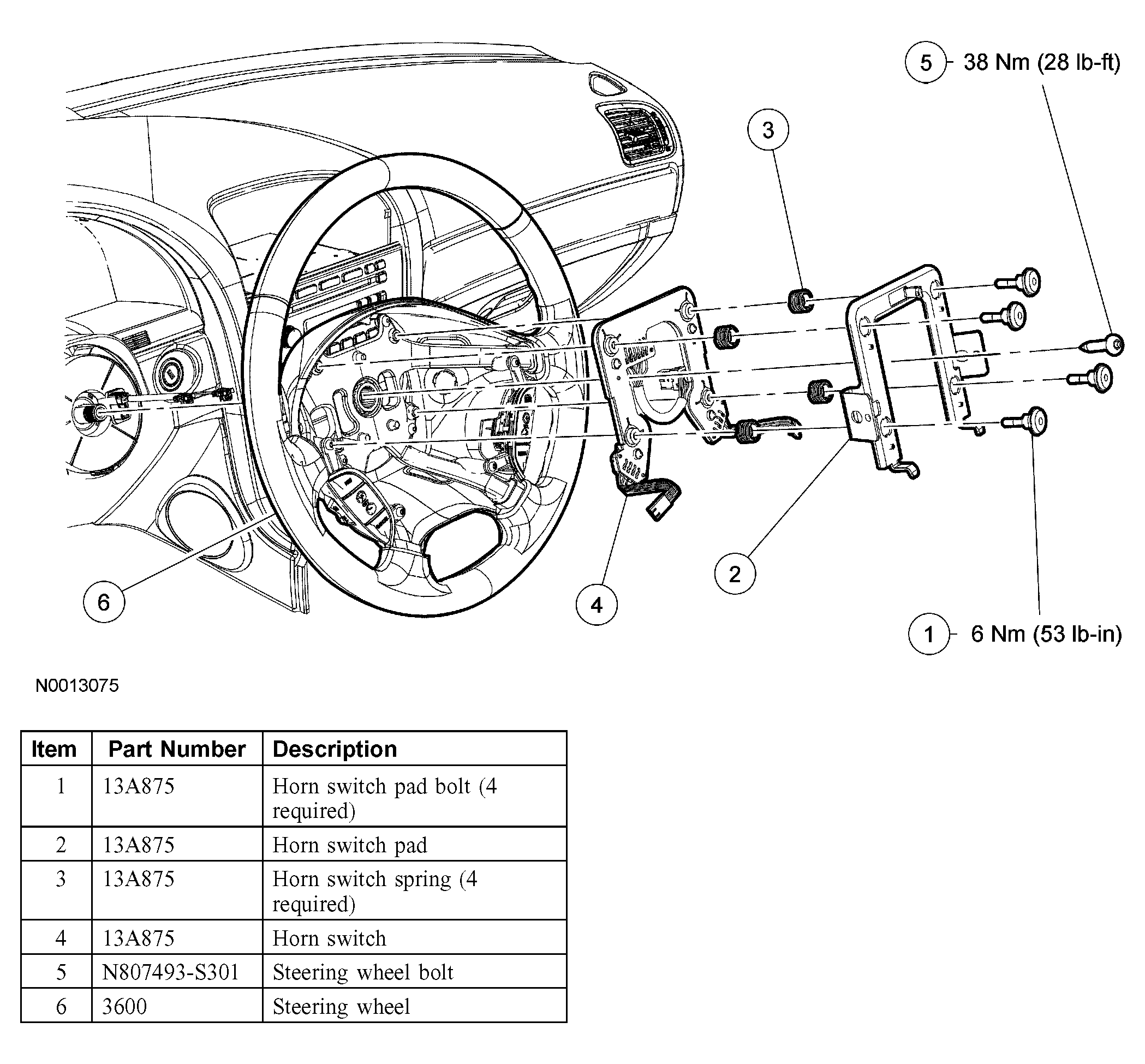

Fig 1: Identifying Steering Wheel Components

Courtesy of FORD MOTOR CO.
