Section 305 (Instrument Cluster)
›
Diagnosis And Testing
›
Instrument Cluster
›
Connector Circuit Reference
›
Jet Pump Module C434
Jet Pump Module C434
WARNING:
This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

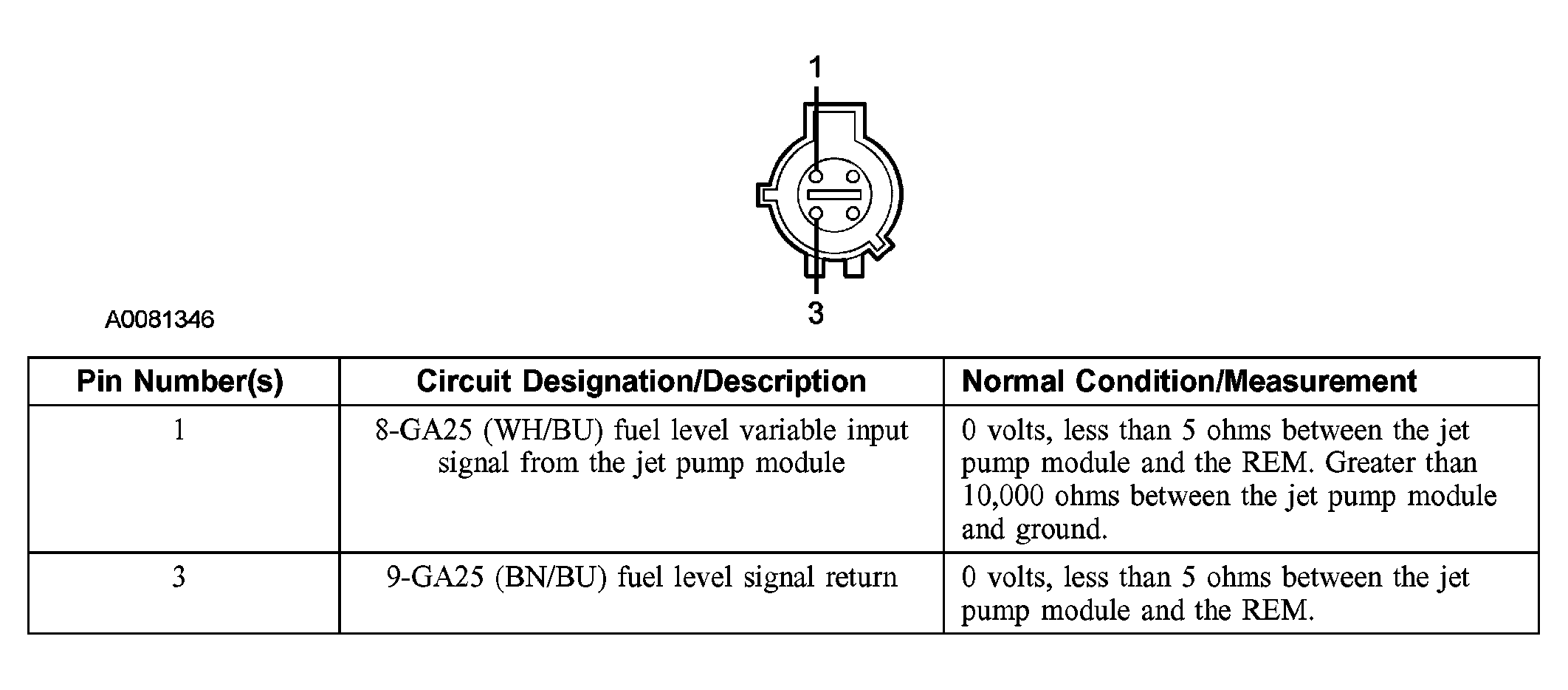

Fig 1: Identifying Jet Pump Module C434 Connector Pins
Courtesy of FORD MOTOR CO.
