Valve - Guide Reaming

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a hand-reaming kit to ream the valve guide.

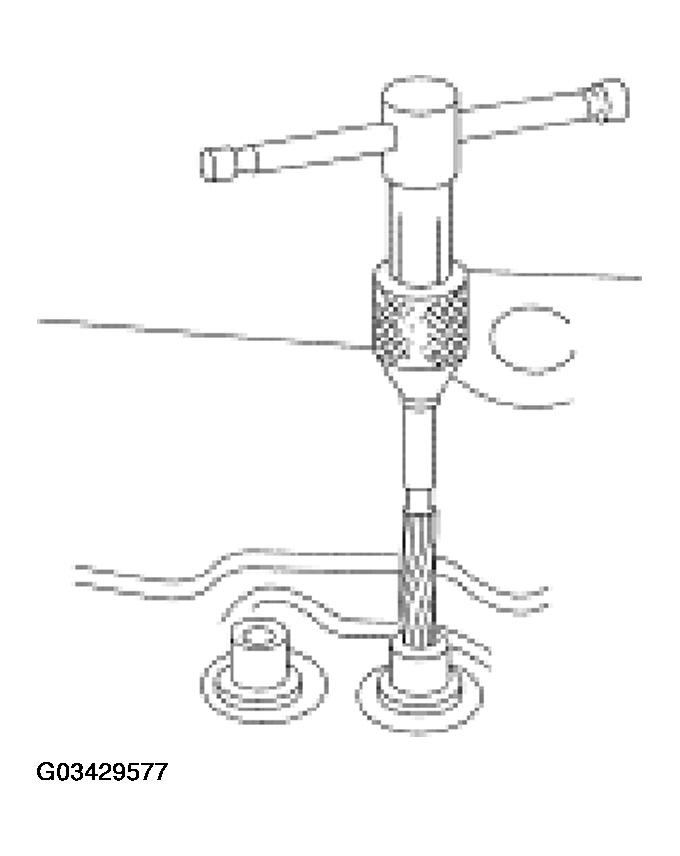

    Fig 1: Using Hand-Reaming Kit To Ream Valve Guide
    G03429577Courtesy of FORD MOTOR CO.
  2. Reface the valve seat.
  3. Clean the sharp edges left by reaming.
