Constant Control Relay Module (CCRM)

NOTE: CCRM is located on bracket, mounted behind engine coolant reservoir. See Figure, Figure or Fig 1 .

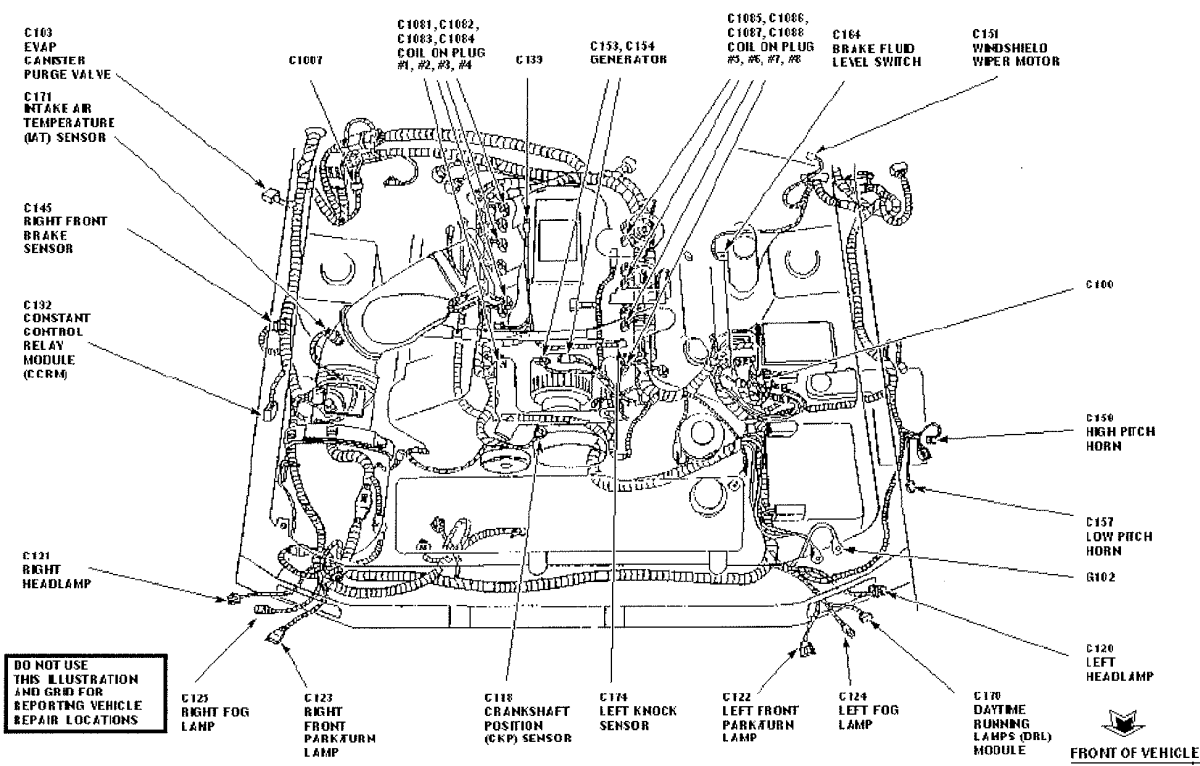

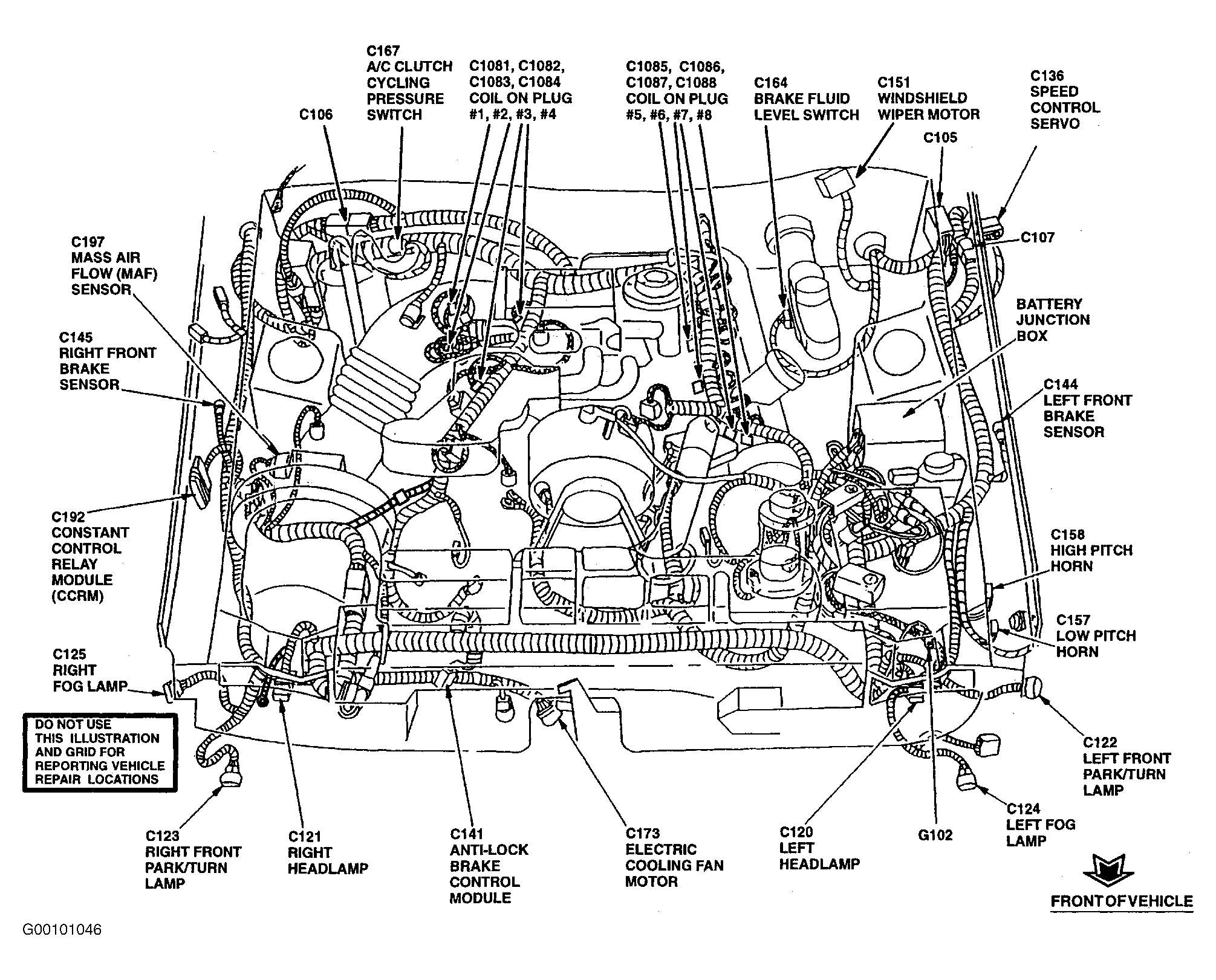

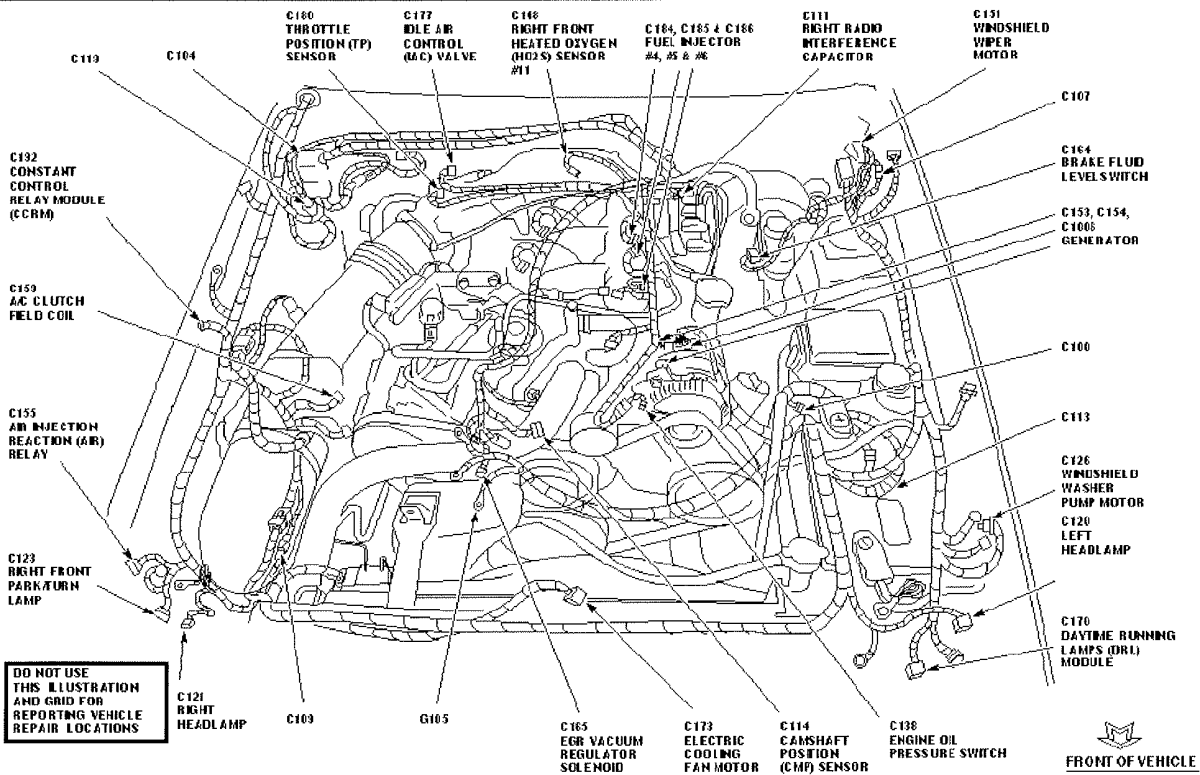

Fig 1: Locating Engine Compartment Electrical Component (4.6L - 4V)

Courtesy of FORD MOTOR CO.
