Battery Junction Box

NOTE: Battery junction box is located on driver's side of engine compartment, near master cylinder. See Fig 1, Fig 2 and Fig 3 .

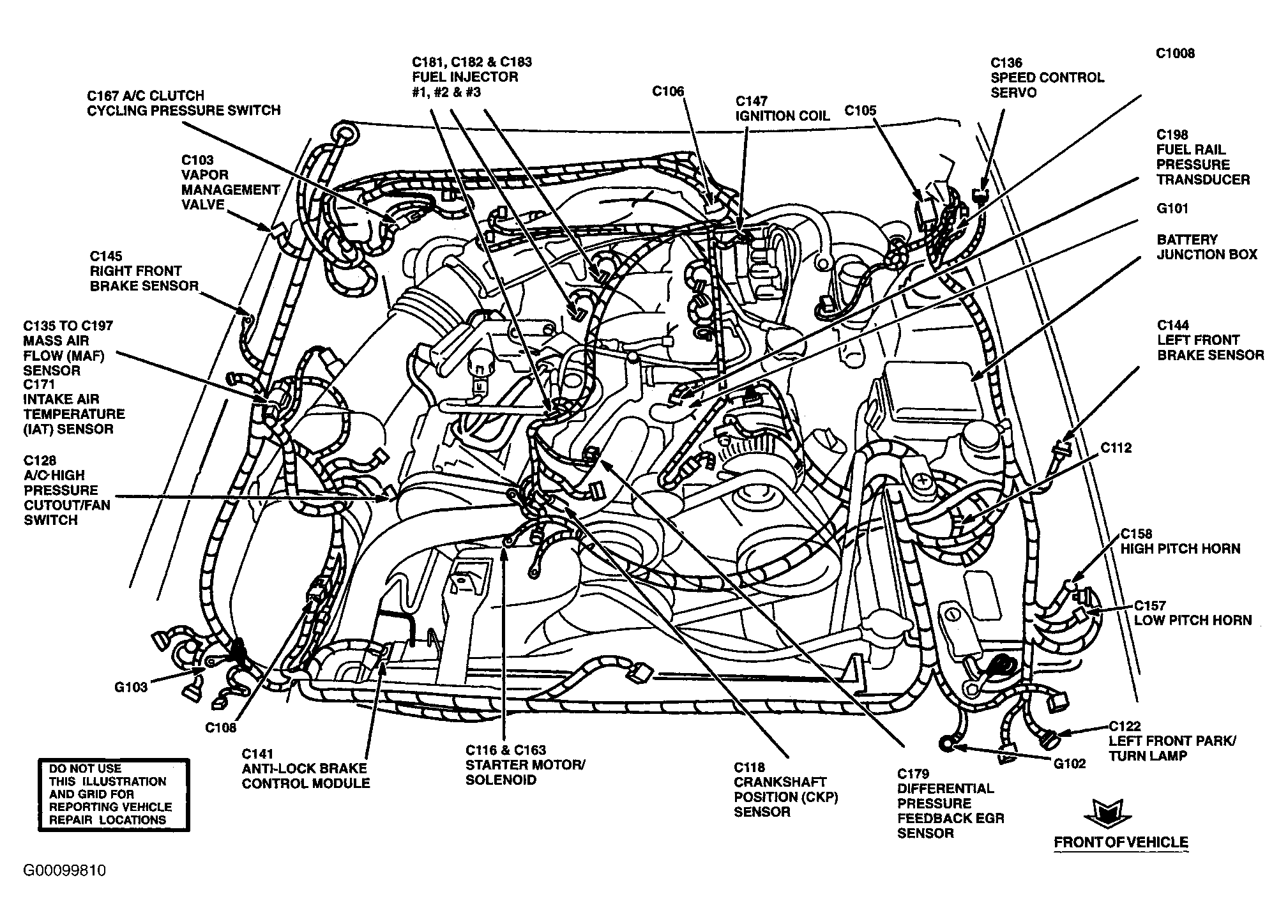

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.

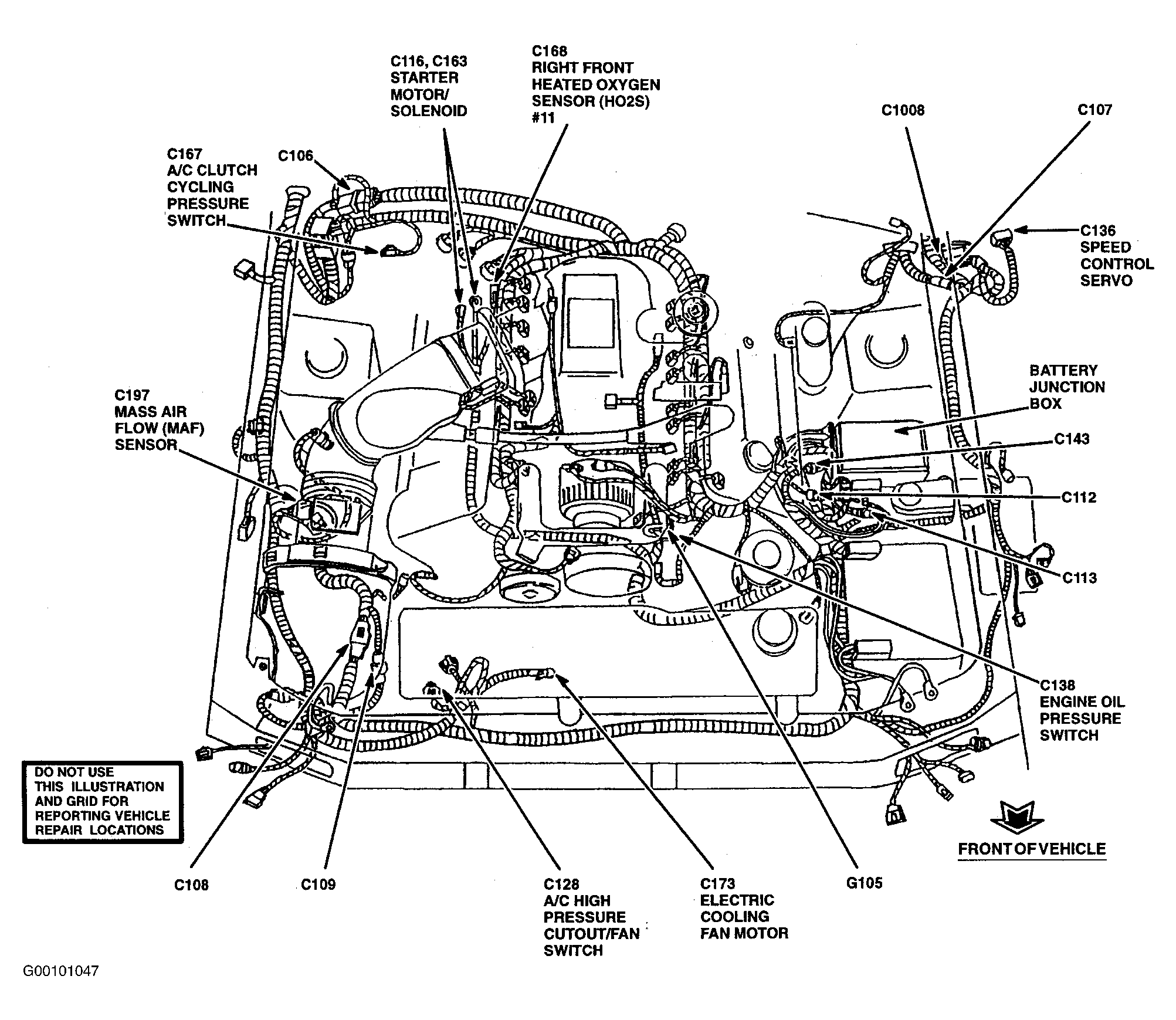

Fig 2: Locating Engine Compartment Electrical Component (4.6L - 2V)

Courtesy of FORD MOTOR CO.

Fig 3: Locating Engine Compartment Electrical Component (4.6L - 4V)

Courtesy of FORD MOTOR CO.

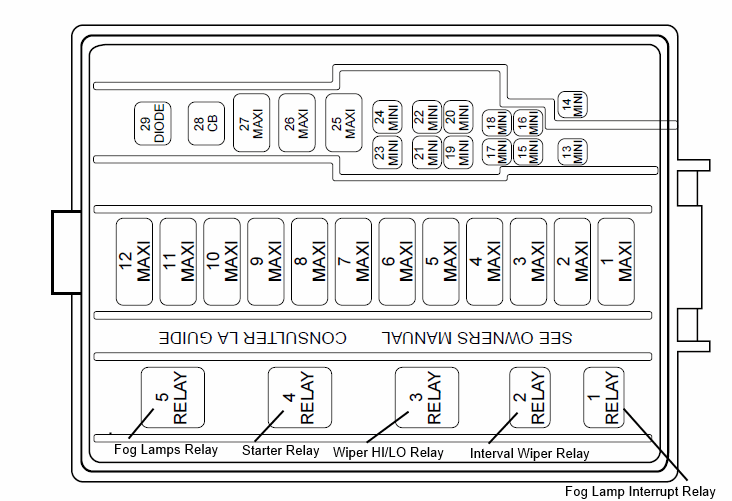

Fig 4: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

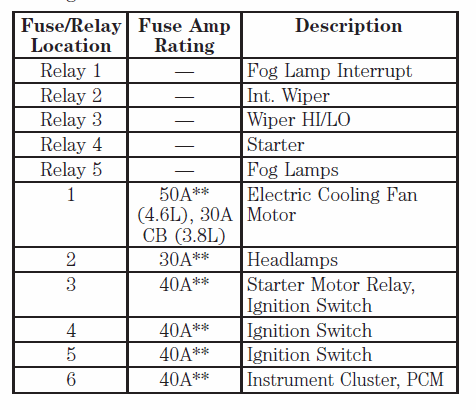

Fig 5: Engine Compartment Fuse Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

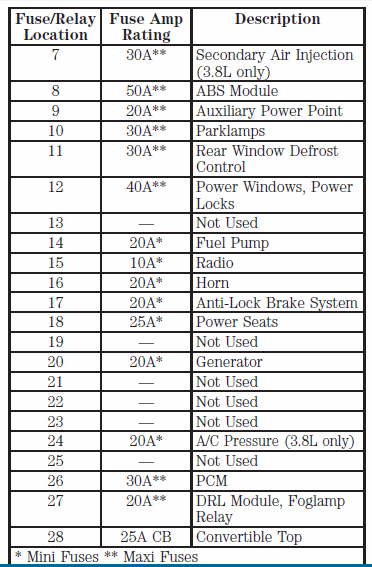

Fig 6: Engine Compartment Fuse Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
