Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

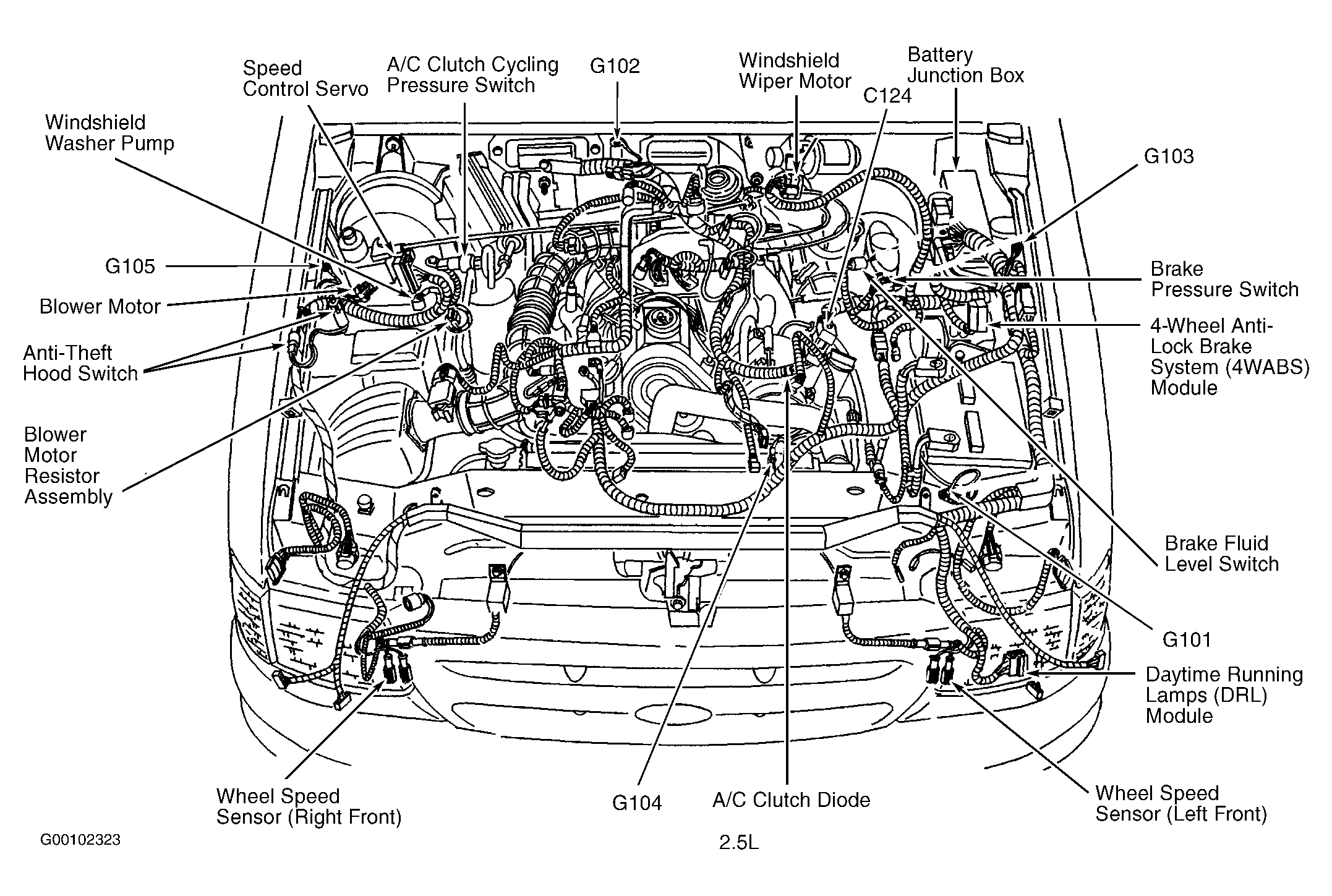

| Battery Junction Box (2.5L) | Left rear of engine compartment. See Figure . |

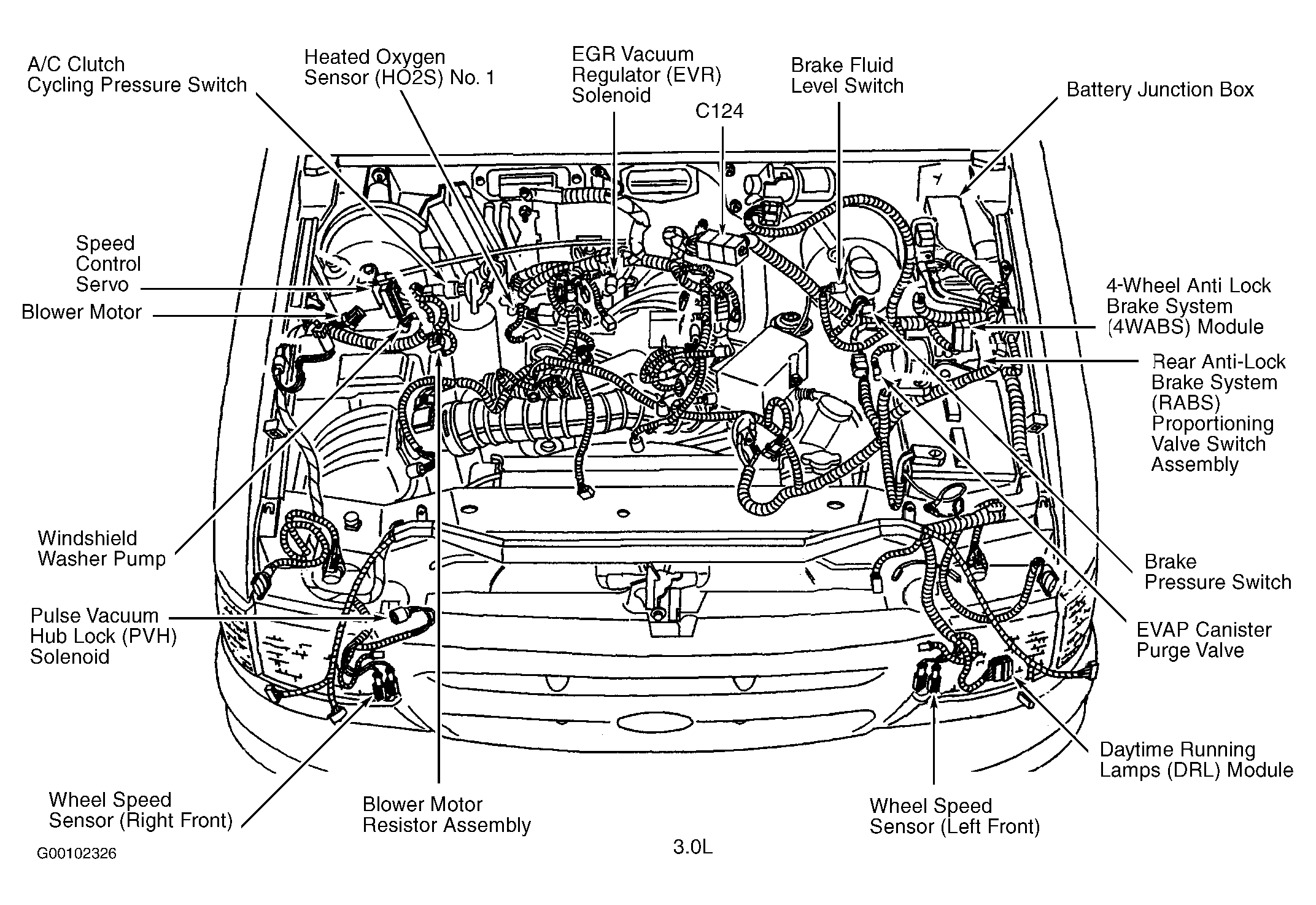

| Battery Junction Box (3.0L) | Left rear of engine compartment. See Figure . |

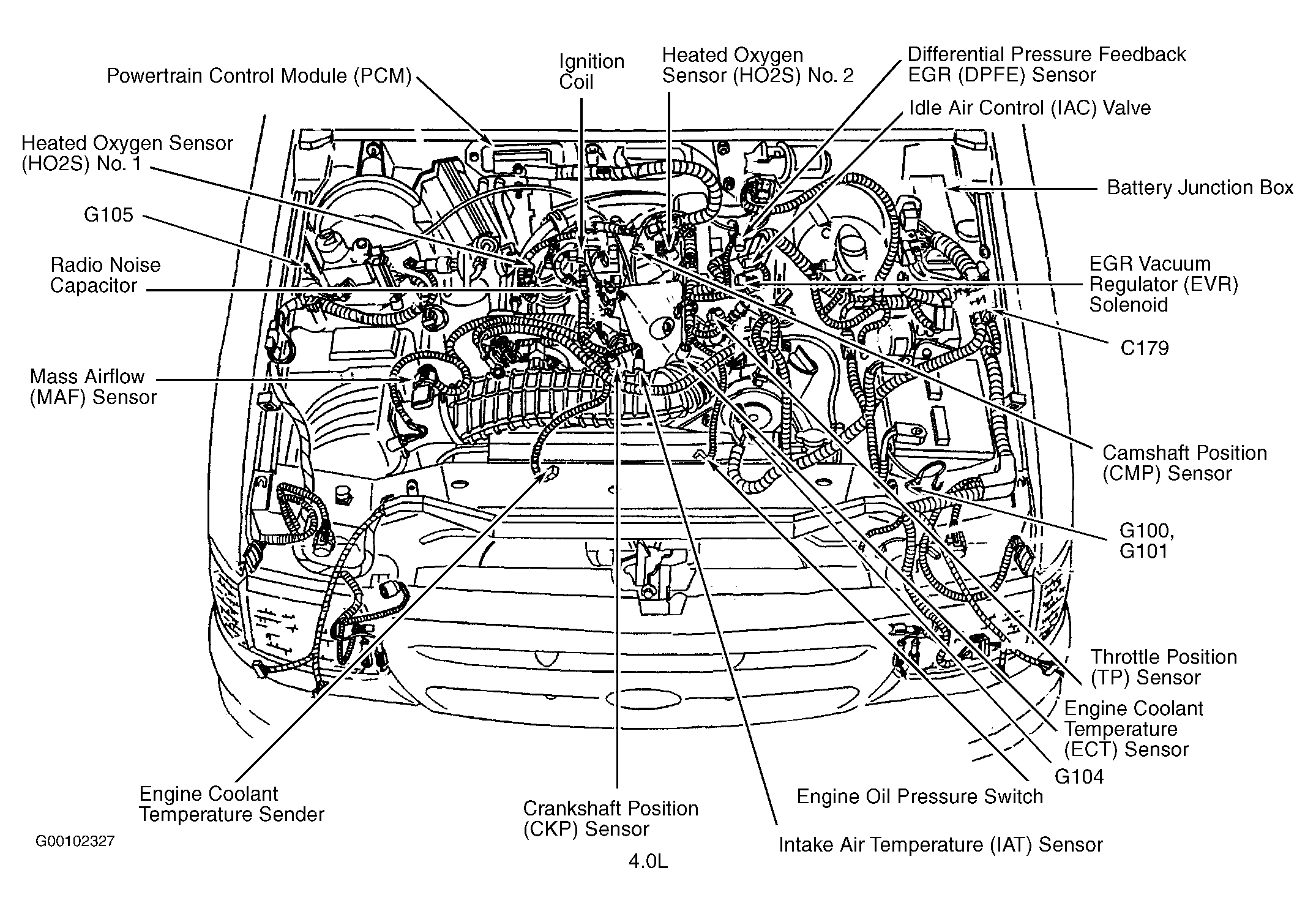

| Battery Junction Box (4.0L) | Left rear of engine compartment. See Figure . |

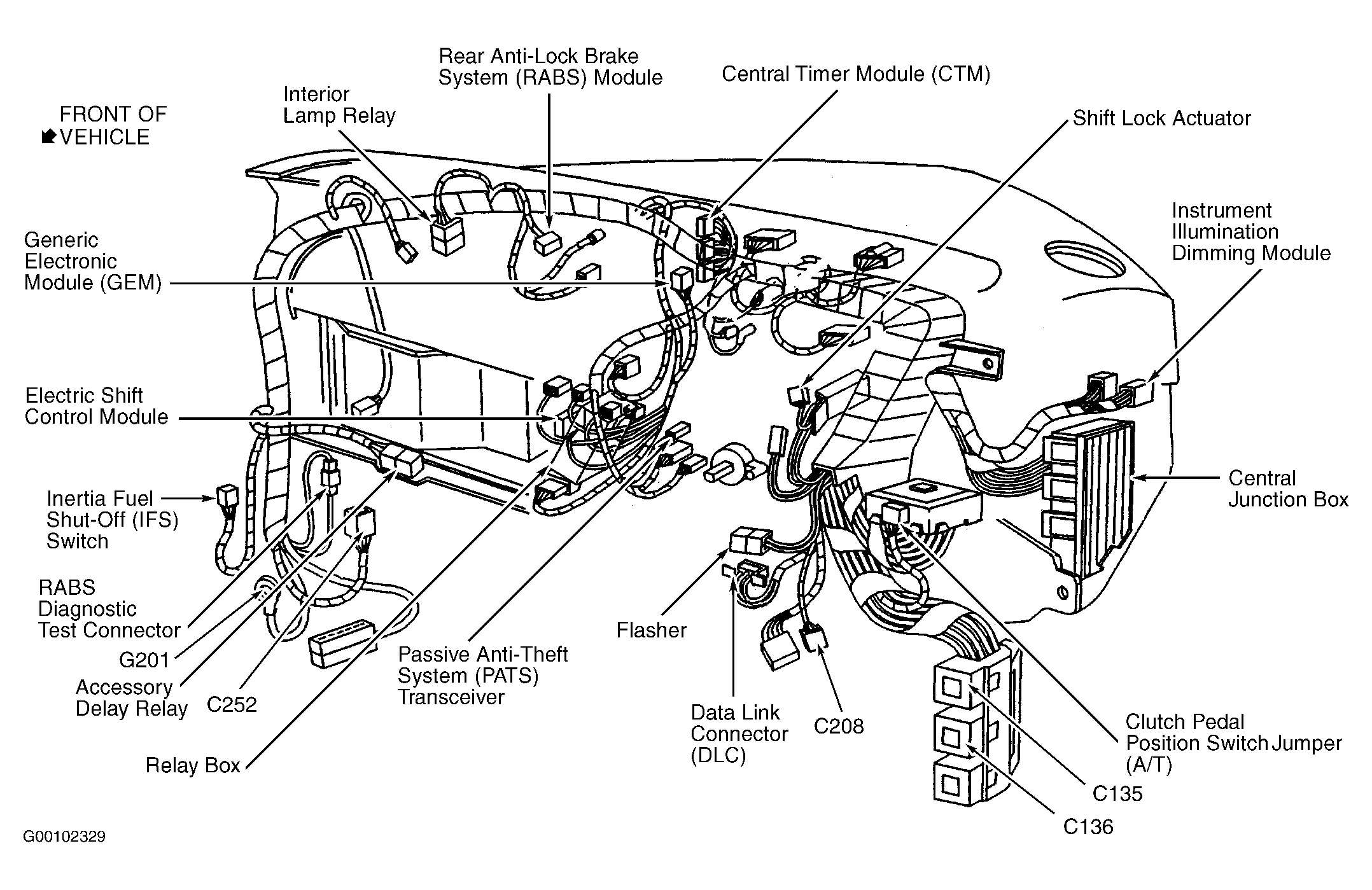

| Central Junction Box | Behind left side of dash. See Figure . |
| Relay Box | Behind dash, right of steering column. See Figure . |
