Component Locations
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Central Junction Box | Below Left Side Of Instrument Panel | ||
| Generic Electronic Module (GEM) | On Rear Of Central Junction Box | ||
| Integrated Control Panel (ICP) | Behind Instrument Panel, Near Air Conditioning/Heating Control Unit | ||

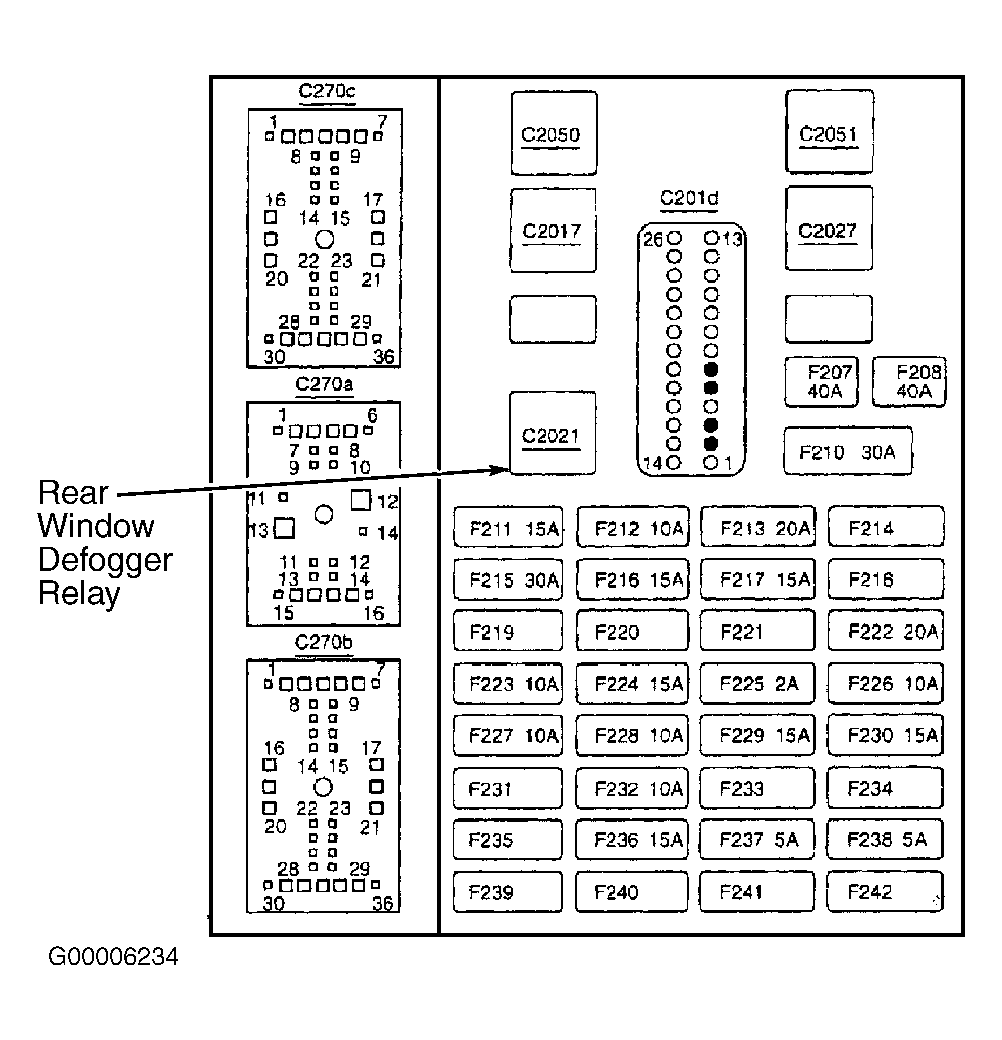

| Rear Window Defogger Relay (1) | In Central Junction Box | ||
|
|||
