Wiper/Washer Switch

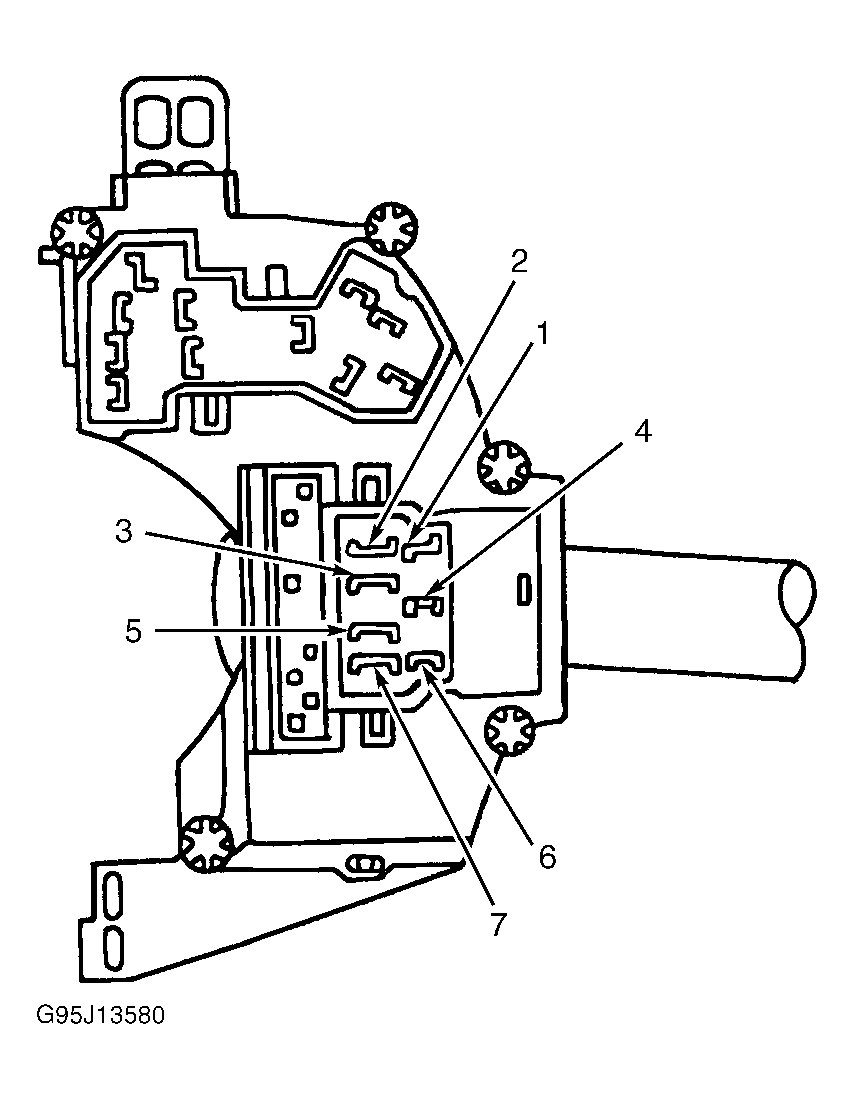

With wiper/washer switch in specified position, ensure indicated resistance exists between terminals listed. See WIPER/WASHER SWITCH TEST table. See Fig 1 . Replace multifunction switch if resistance is not within specification.
WIPER/WASHER SWITCH TEST
| Switch Position | Switch Terminals No. | (1) k/ohms | |||
|---|---|---|---|---|---|
| Wiper | |||||
| OFF | 1 & 4 | .953 | |||
| INT | 1 & 4 | 1.91 | |||
| LOW | 1 & 4 | .402 | |||
| HIGH | 1 & 4 | 0 | |||
| Interval | |||||
| 1 (MAX) | 4 & 6 | 2.67 | |||
| 2 | 4 & 6 | 1.91 | |||
| 3 | 4 & 6 | 1.37 | |||
| 4 | 4 & 6 | .953 | |||
| 5 | 4 & 6 | .634 | |||
| 6 | 4 & 6 | .402 | |||
| 7 | 4 & 6 | .249 | |||
| Washer | |||||
| OFF | 4 & 6 | Open Circuit | |||
| ON | 4 & 6 | Closed Circuit | |||
|
|||||
