Central Junction Box
NOTE:
Central junction box may also be referred to as passenger compartment fuse panel.
NOTE:

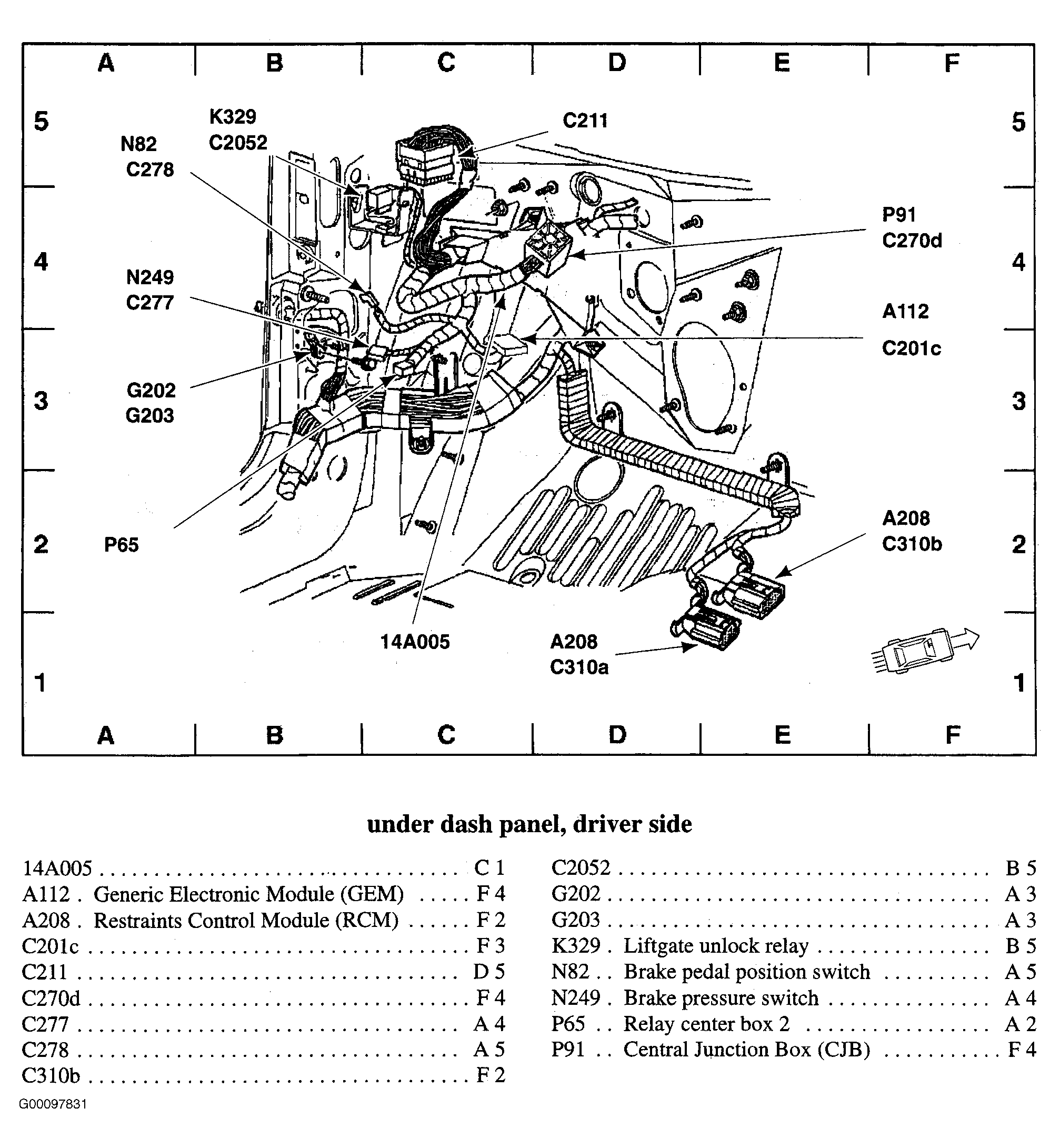

Central junction box is located under driver's side of instrument panel. See Fig 1.

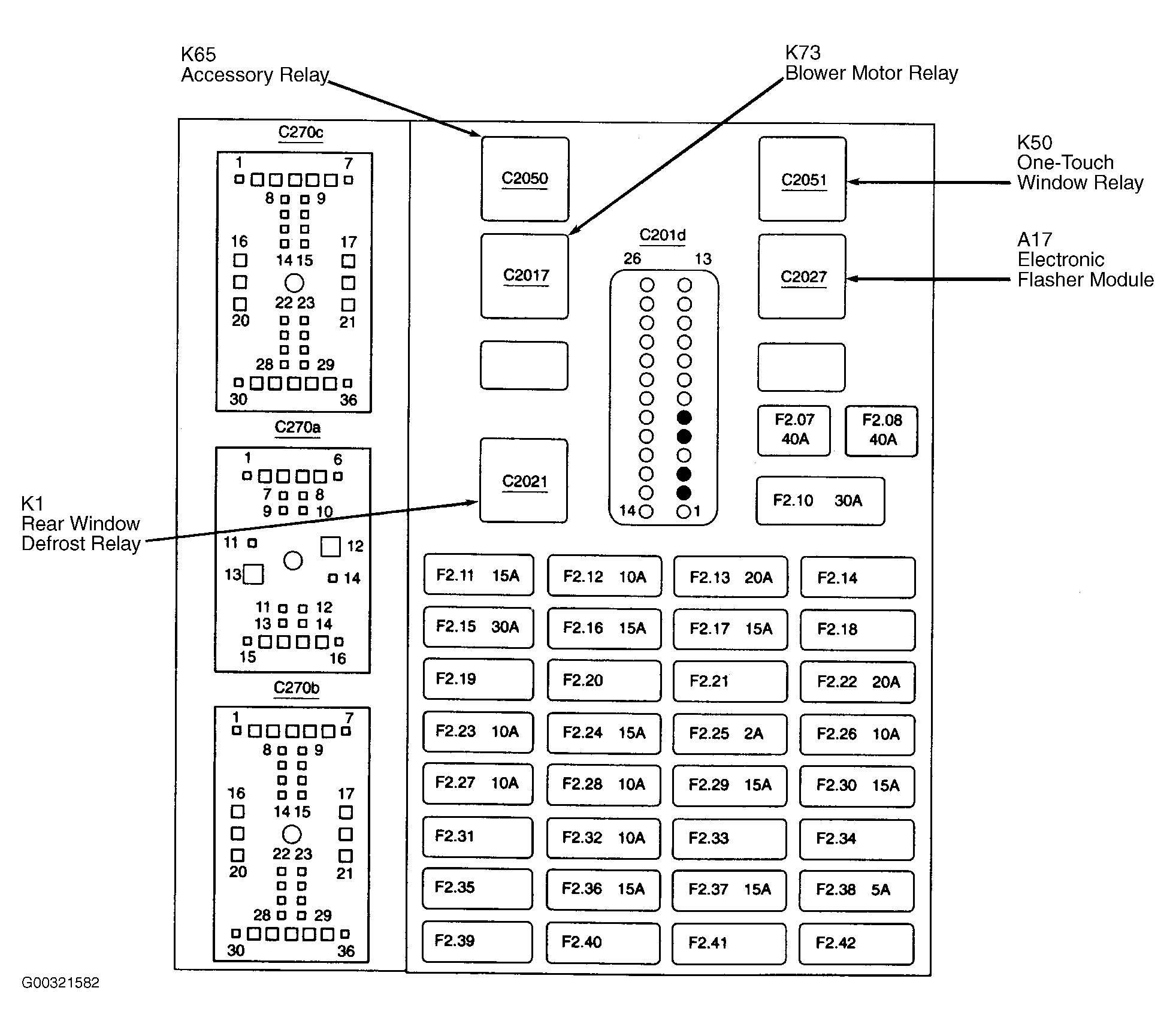

CENTRAL JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C2021 | K1 Rear Window Defrost Relay |
| C2050 | K65 Accessory Relay |
| C2017 | K73 Blower Motor Relay |
| C2051 | K50 One-Touch Window Relay |
CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.07 | 40 | Rear window defrost relay |
| F2.08 | 40 | Blower motor relay |
| F2.10 | 30 | Accessory relay, Adjustable pedal switch, Seat adjust switch |
| F2.11 | 15 | Windshield washer relay, Rear wiper motor assembly, Rear window washer pump motor, Generic Electronic Module (GEM) (14B205), Wireless interface module, Rear window wiper/washer switch, Integrated control panel |
| F2.12 | 10 | Integrated control panel, Heated mirrors |
| F2.13 | 20 | Cigar lighter, front (15055) |
| F2.14 | - | not used |
| F2.15 | 30 | Wiper run/park relay, Wiper high/low relay, Windshield wiper motor (17508) |
| F2.16 | 15 | Generic Electronic Module (GEM) (14B205), Remote Climate Control (RCC) module, Instrument cluster, Multifunction switch, Integrated control panel |
| F2.17 | 15 | Deactivator switch, Brake pedal position switch (13480) |
| F2.18 | - | not used |
| F2.19 | - | not used |
| F2.20 | - | not used |
| F2.21 | - | not used |
| F2.22 | 20 | Door lock relay, Door unlock relay, Driver door unlock relay, Luggage compartment lid release switch, Luggage compartment lid release relay, Liftgate unlock relay |
| F2.23 | 10 | Passive anti-theft transceiver module (15607), Restraints control module (14B321) |
| F2.24 | 15 | Fog lamp relay |
| F2.25 | 2 | PCM power relay |
| F2.26 | 10 | Interior lamps relay, Battery saver relay, Luggage compartment lamp (13A756), Exterior rear view mirror switch (17B676), Pulse stretcher module, Power antenna module |
| F2.27 | 10 | Generic Electronic Module (GEM) (14B205), Instrument cluster, Integrated control panel, Flexible fuel sensor module |
| F2.28 | 10 | Remote Climate Control (RCC) module, Blower motor relay |
| F2.29 | 15 | Main light switch (11654), Autolamp headlamp relay, Autolamp park relay |
| F2.30 | 15 | Data Link Connector (DLC) (14489), Horn relay |
| F2.31 | - | not used |
| F2.32 | 10 | Rear window defrost relay, Daytime Running Lamps (DRL) relay, Speed control servo (9C735), ABS control module (2C219), Brake shift interlock (3Z719), Traction control switch (2C418), Temperature blend door actuator (19E616), Function selector switch assembly |
| F2.33 | - | not used |
| F2.34 | - | not used |
| F2.35 | - | not used |
| F2.36 | 15 | Digital Transmission Range (DTR) sensor (7F293), Multifunction switch |
| F2.37 | 15A | Powertrain Control Module (PCM) (12A650), Digital Transmission Range (DTR) sensor (7F293) |
| F2.38 | 5 | Generic Electronic Module (GEM) (14B205) |
| F2.39 | - | not used |
| F2.40 | - | not used |
| F2.41 | - | not used |
| F2.42 | - | not used |
