In-Line Fuse (Sedan)

NOTE: In-line fuse is located behind luggage compartment lining, LH side. See Fig 1.

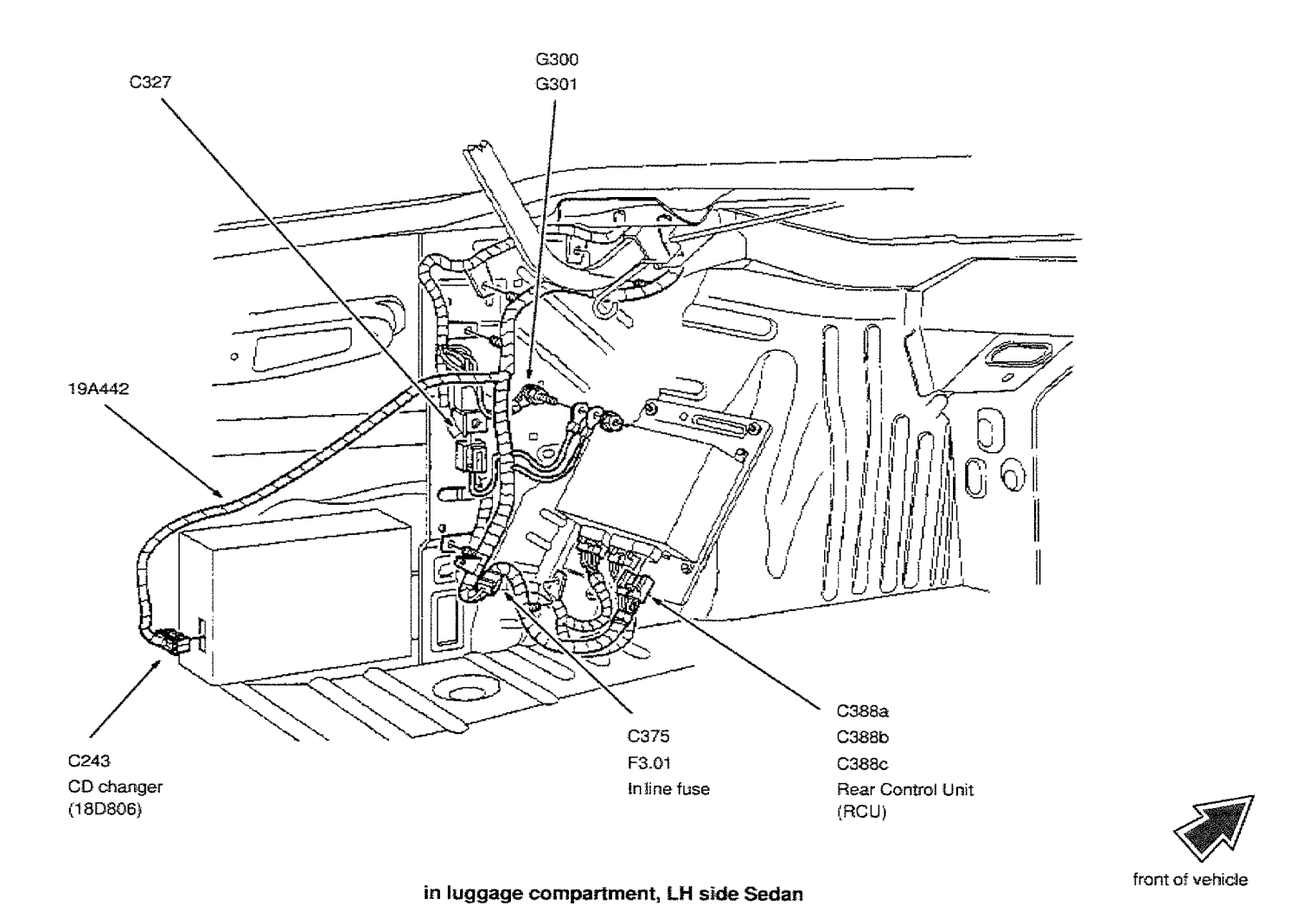

Fig 1: Left Side Of Luggage Compartment
G00530474Courtesy of FORD MOTOR CO.
