Power Steering Fluid Cooler: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

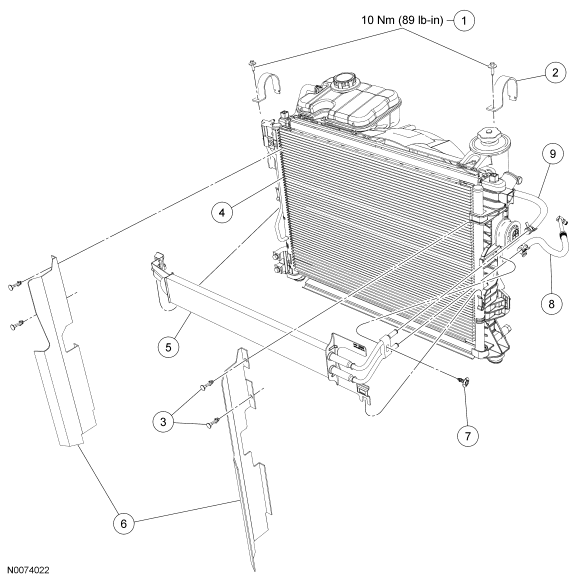

| Item | Part Number | Description |
|---|---|---|
| 1 | N606676 | Cooling module mounting bracket bolts (2 required) |
| 2 | 8125 | Cooling module mounting bracket (2 required) |
| 3 | N806799 | Cooling module side shield pin-type retainers (4 required) |
| 4 | 8005 | Radiator |
| 5 | 3D746 | Power steering fluid cooler |
| 6 | 19E572 | Cooling module side shields (2 required) |
| 7 | 41201 | Power steering fluid cooler pin-type retainer |
| 8 | 3A713A | Return hose |
| 9 | 3A713B | Return hose |
