Air Conditioning (A/C) Compressor - 3.0L, 3.5L: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |
NOTE:
3.0L shown in the illustration, 3.5L similar.

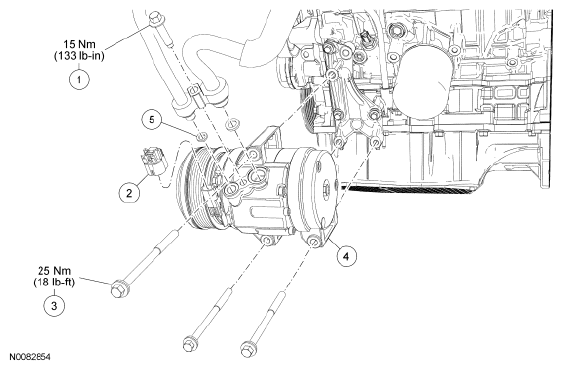

Fig 1: Exploded View Of Air Conditioning (A/C) Compressor Components With Torque Specifications - 3.0L
| Item | Part Number | Description |
|---|---|---|
| 1 | W701625 | A/C compressor manifold bolt |
| 2 | - | Field coil electrical connector (part of 12B637) |
| 3 | W710649 | A/C compressor bolt (3 required for 3.0L) (2 required for 3.5L) |
| 4 | 19703 | A/C compressor |
| 5 | 19B596 | Gasket seal (2 pieces from kit required) |
