Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

Fig 1: Removing/Installing Headlamp Assembly (1 Of 2)

Courtesy of FORD MOTOR CO.

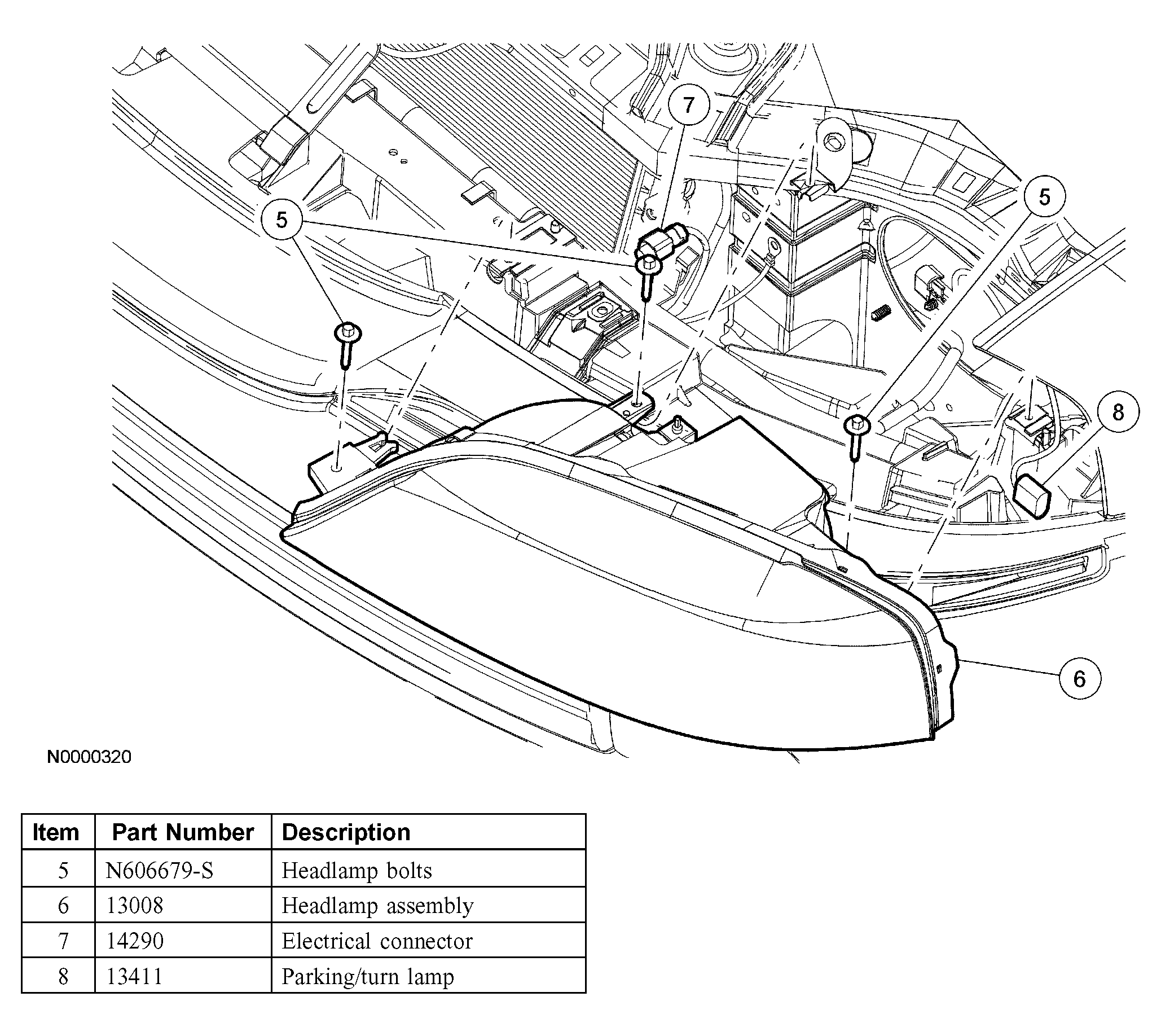

Fig 2: Removing/Installing Headlamp Assembly (2 Of 2)

Courtesy of FORD MOTOR CO.
