Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

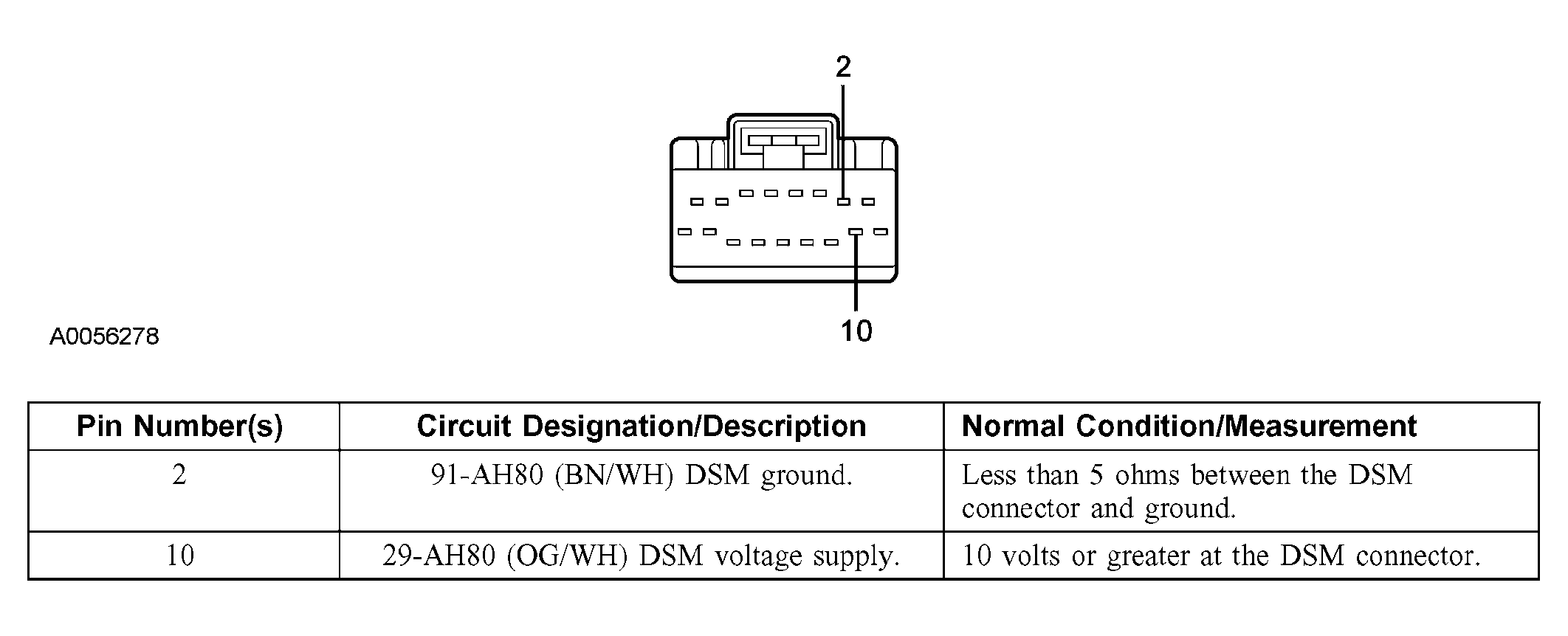

Fig 1: Identifying Driver Seat Module C341b - Connector Pinout

Courtesy of FORD MOTOR CO.

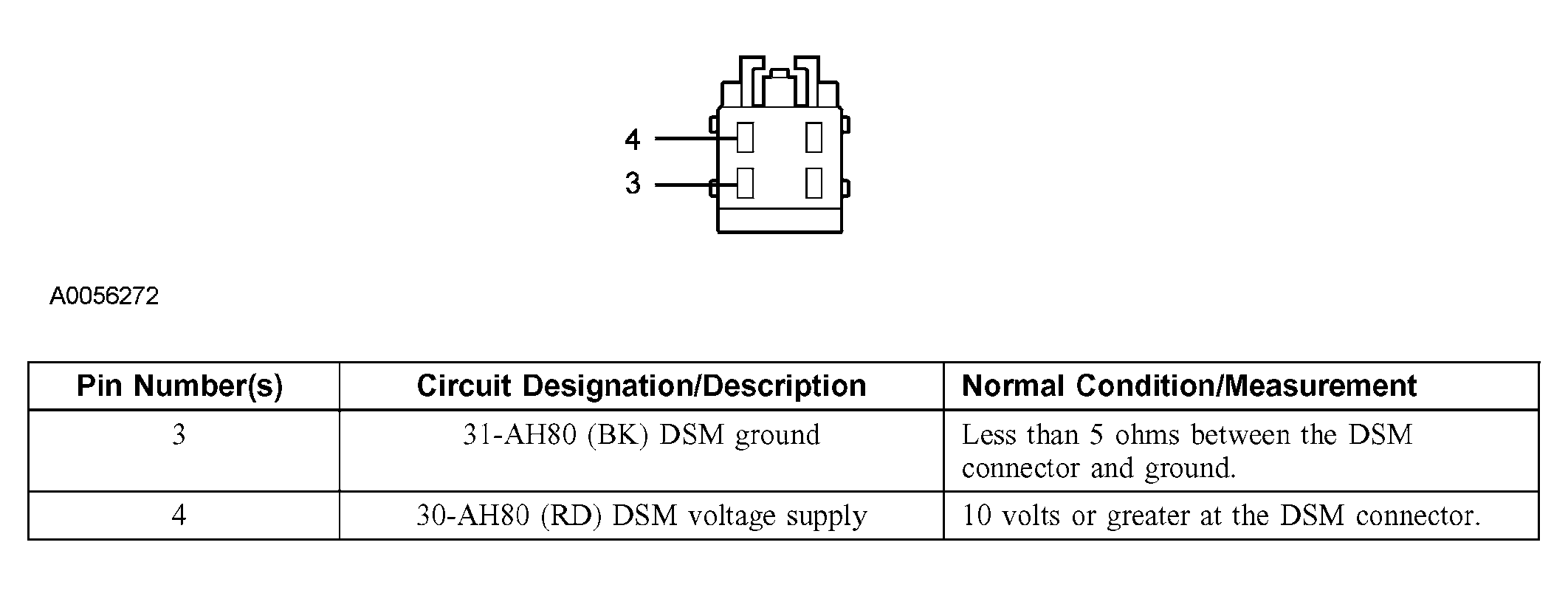

Fig 2: Identifying Driver Seat Module C341c - Connector Pinout

Courtesy of FORD MOTOR CO.
