Pinpoint Test H: The Traction Control Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

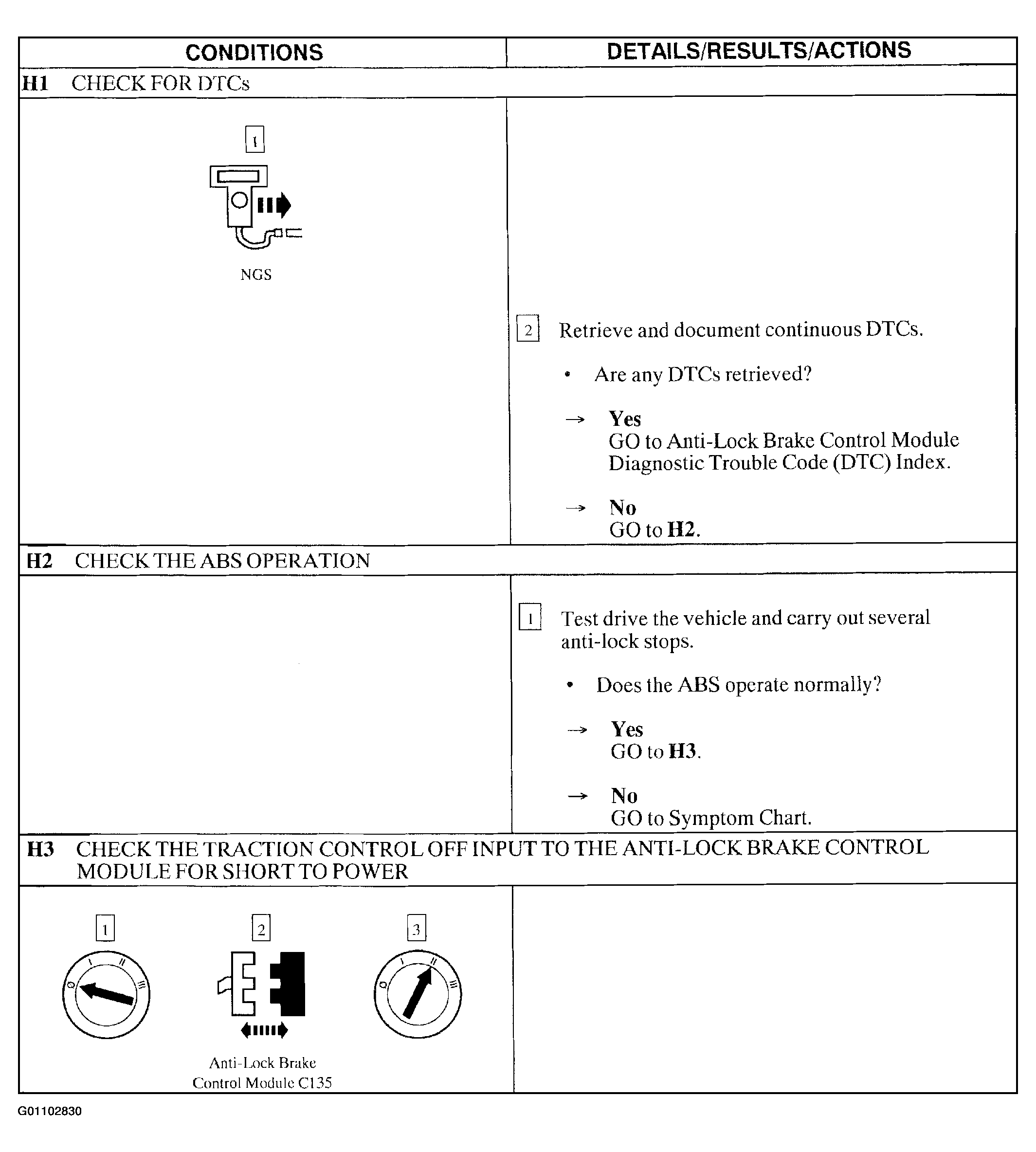

Fig 1: Pinpoint Test H (Steps H1-H3)

Courtesy of FORD MOTOR CO.

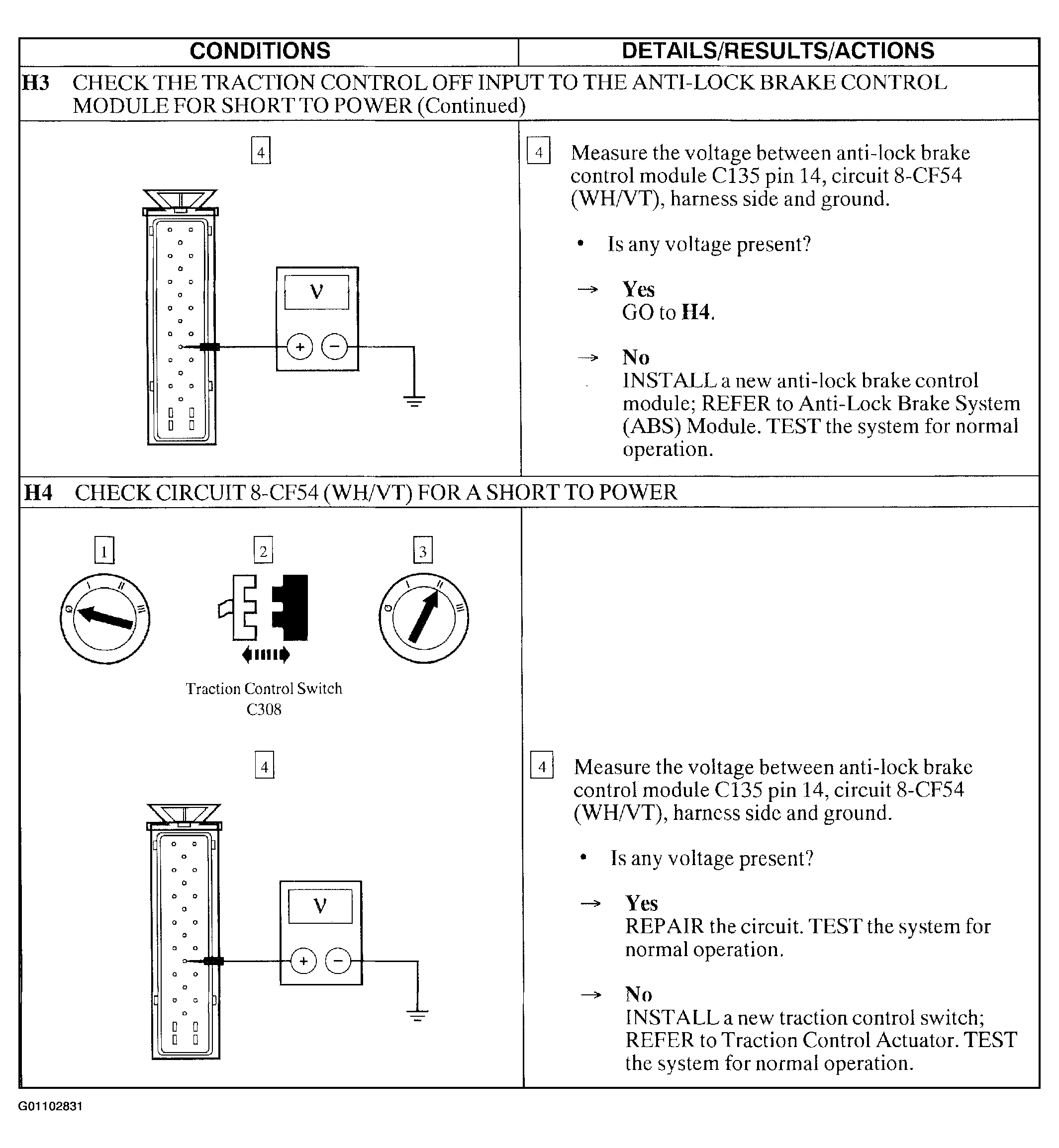

Fig 2: Pinpoint Test H (Steps H3 Cont. & H4)

Courtesy of FORD MOTOR CO.
