Section 61 (Keyless Entry/Computer Operated Locks)
›
Diagnosis And Testing
›
Keyless Entry
›
Pinpoint Test P: Panic Feature Is Inoperative
Pinpoint Test P: Panic Feature Is Inoperative
WARNING:
This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

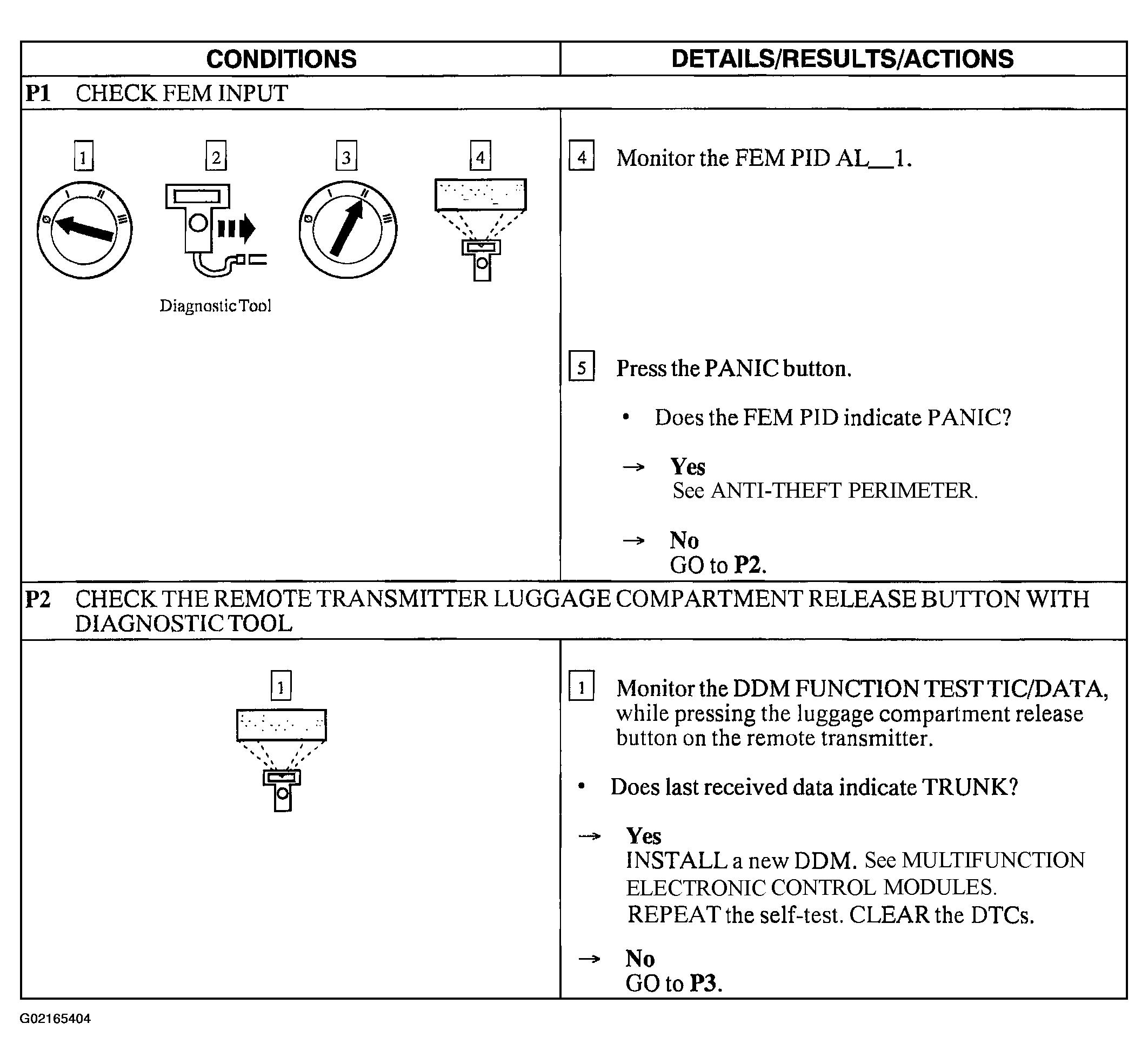

Fig 1: Pinpoint Test P: Panic Feature Is Inoperative (Steps P1-P2)
Courtesy of FORD MOTOR CO.

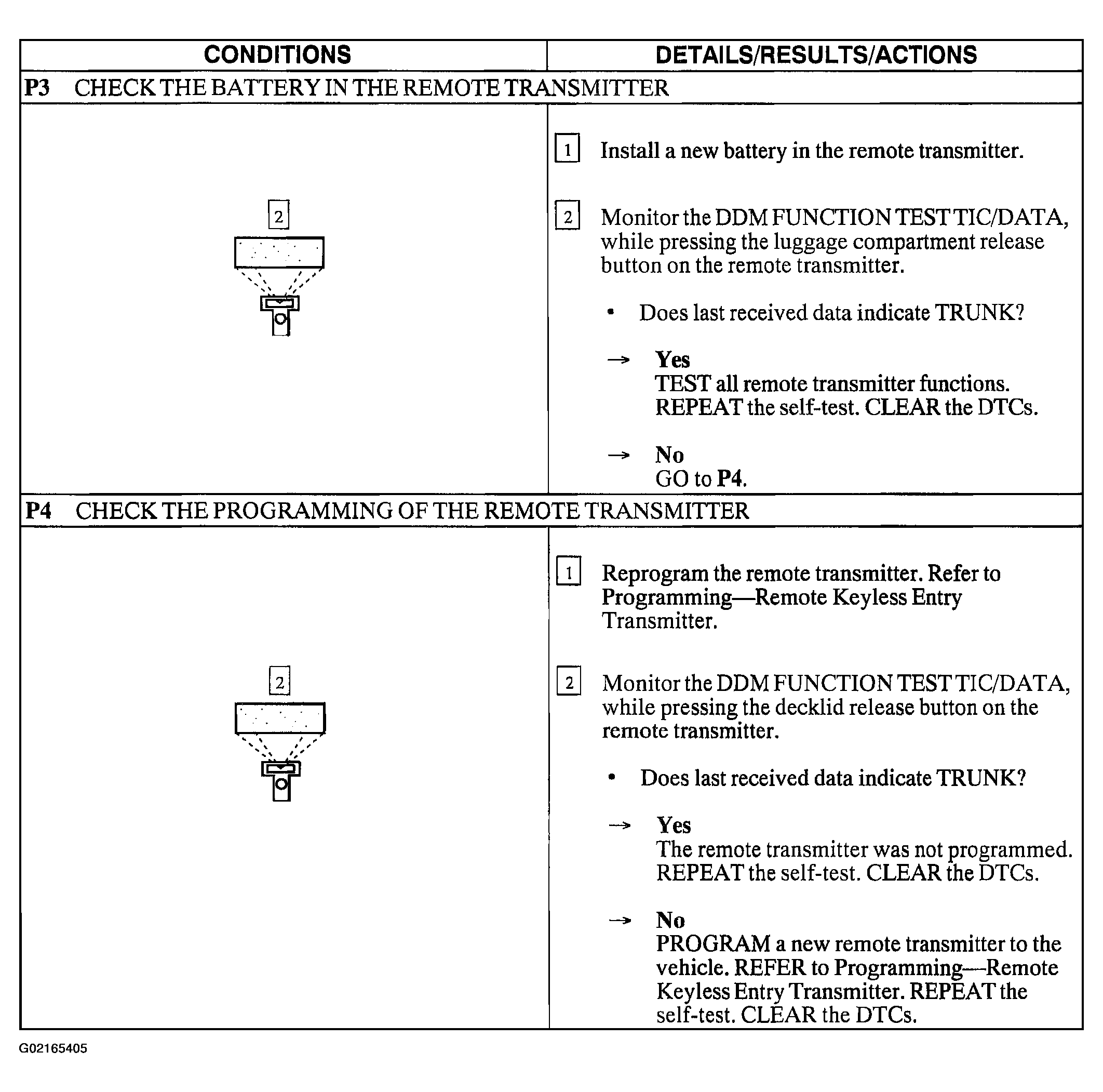

Fig 2: Pinpoint Test P: Panic Feature Is Inoperative (Steps P3-P4)
Courtesy of FORD MOTOR CO.
