Pinpoint Test R: No Communication With The Front Electronic Module (FEM)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

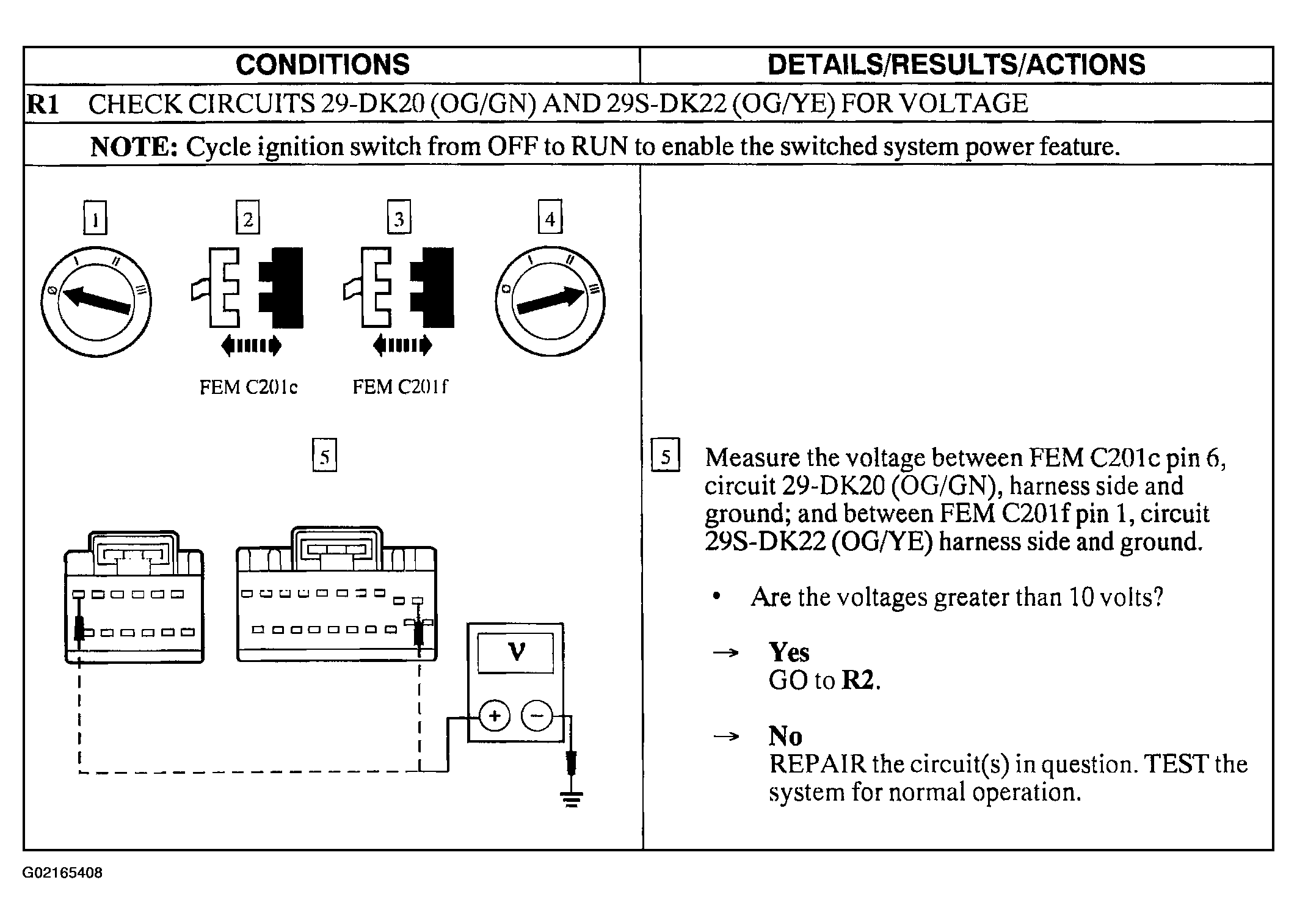

Fig 1: Pinpoint Test R: No Communication With The Front Electronic Module (FEM) (Step R1)

Courtesy of FORD MOTOR CO.

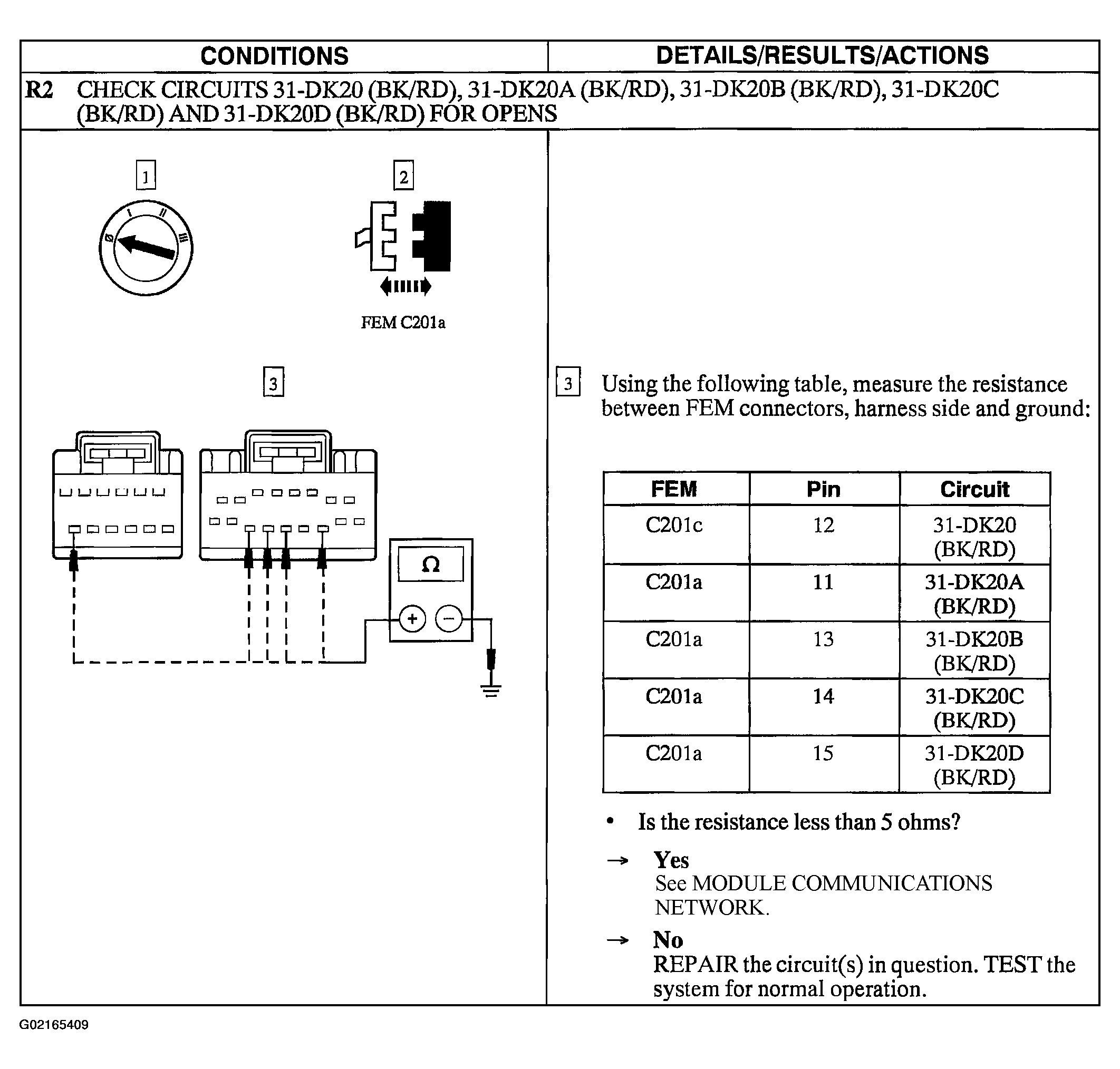

Fig 2: Pinpoint Test R: No Communication With The Front Electronic Module (FEM) (Step R2)

Courtesy of FORD MOTOR CO.
