Removal and Installation
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rain sensor module cover (17D550).
- Remove the rain sensor module 17D547.

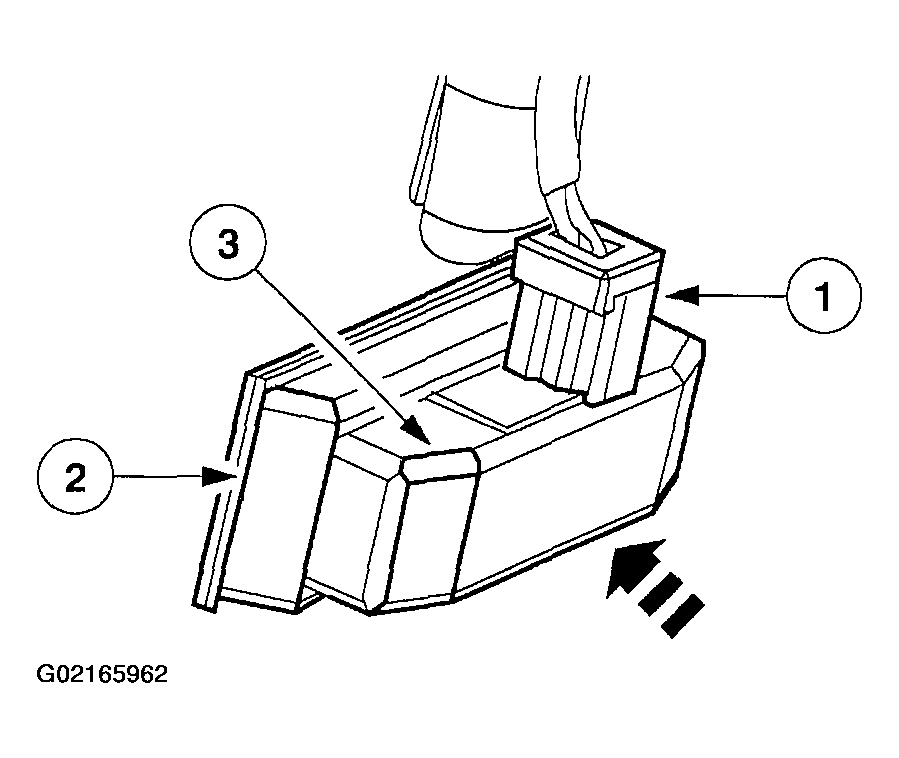

- Pull the latch on the connector away from the harness and disconnect the electrical connector.
- Release the rain sensor module retaining slides.
- Remove the rain sensor module.
NOTE: When removing the rain sensor module, it is necessary to apply inward pressure on the module prior to releasing the rain sensor module retaining slides. - To install, reverse the removal procedure.
NOTE:
To avoid damage to the rain sensor module cover, push up on the cover while rotating the top of the cover toward the rear of the vehicle.
NOTE:
Prior to installing the rain sensor module, the windshield glass area between the rain sensor module brackets must be cleaned.
NOTE:
When installing the rain sensor module, it is necessary to apply inward pressure on the module prior to locking the rain sensor module retaining slides in place.
