Central Junction Box

NOTE: Central junction box may also be referred to as fuse junction panel. Central junction box is located under the driver's side of the instrument panel. See Fig 1.

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

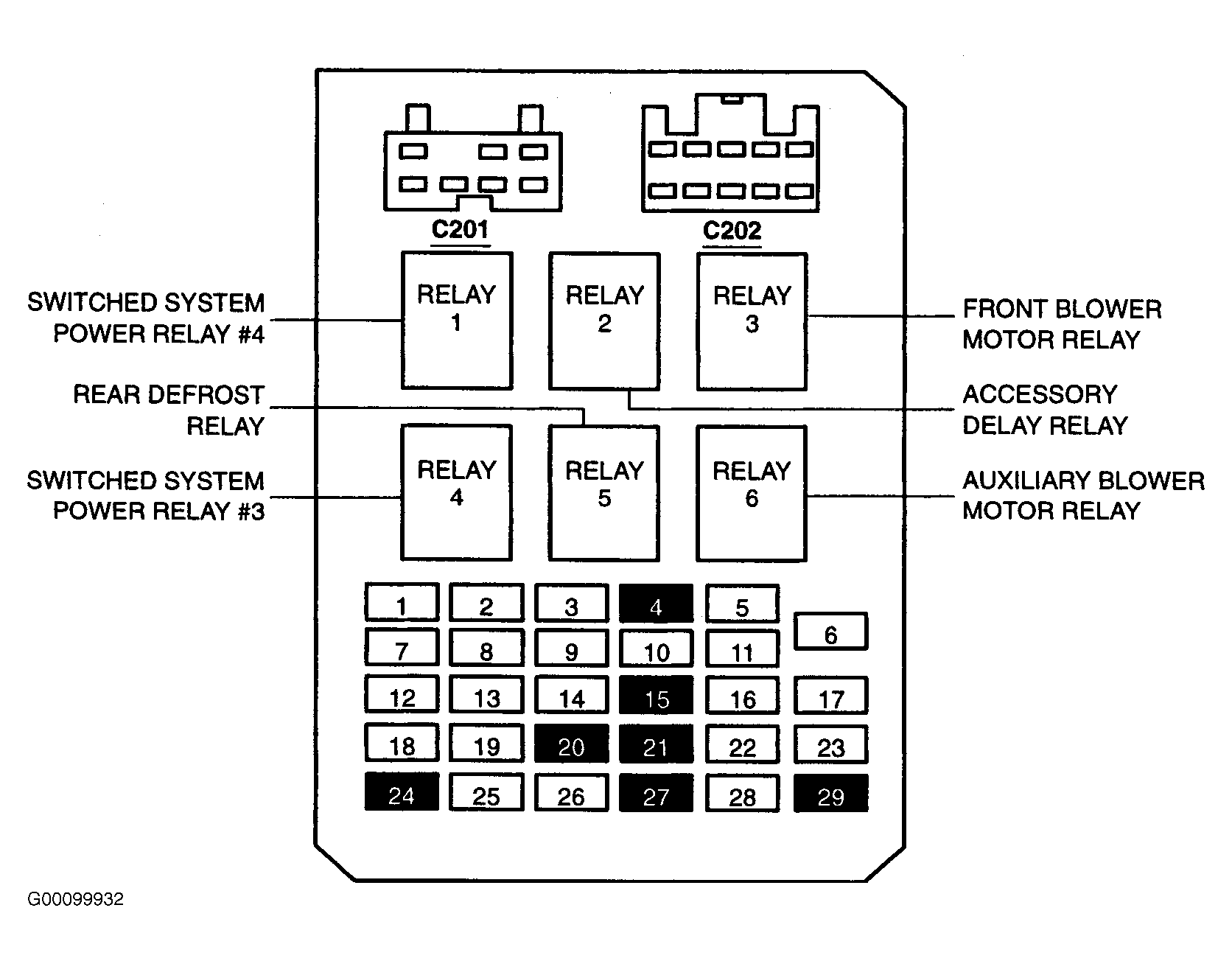

Fig 2: Identifying Central Junction Box Components

Courtesy of FORD MOTOR CO.

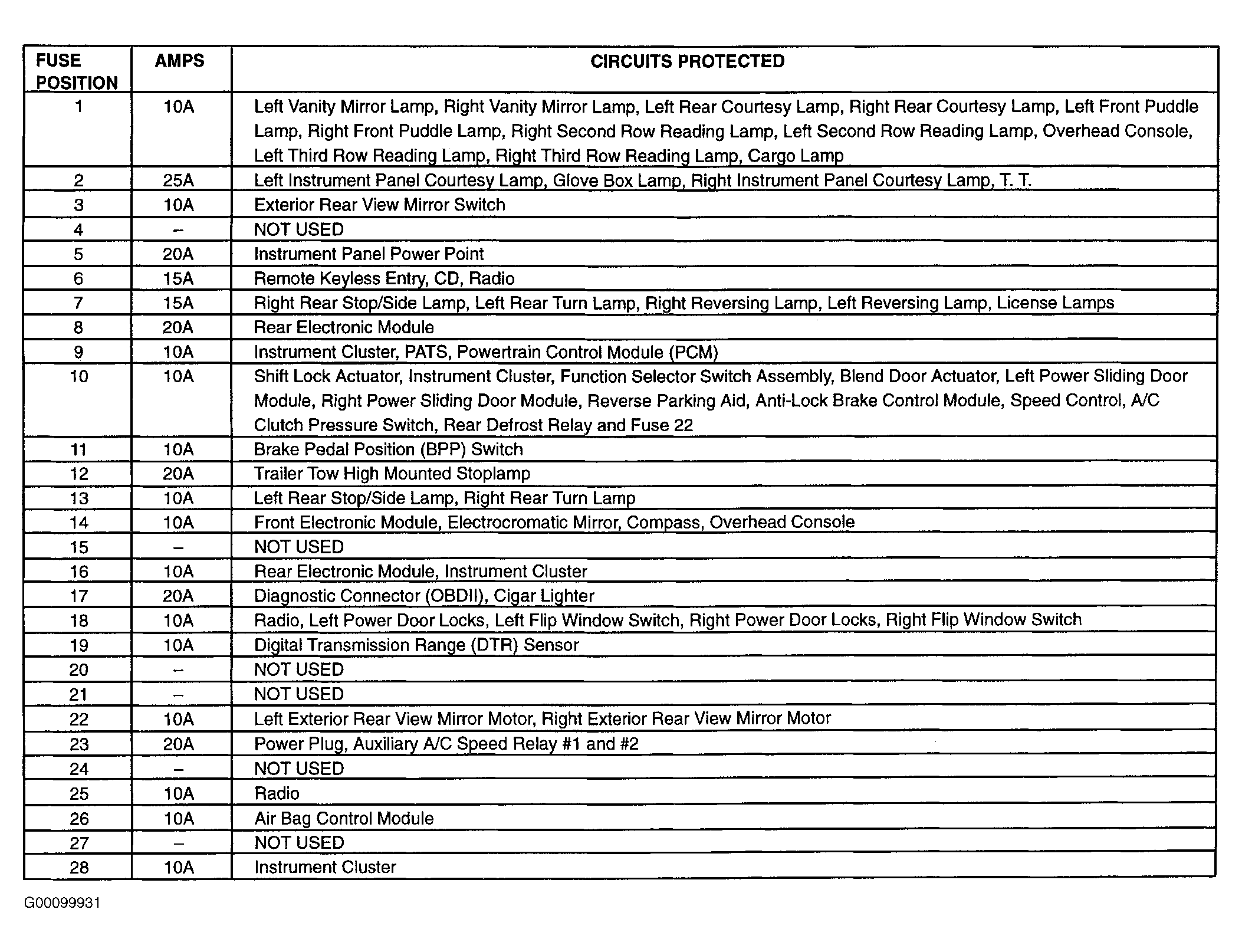

Fig 3: Central Junction Box Legend

Courtesy of FORD MOTOR CO.
