Verify System
To verify system, use prove out system procedure with Air Bag Simulator (105-R0012 and/or 418-133) in place of the air bag modules. See PROVE OUT SYSTEM .

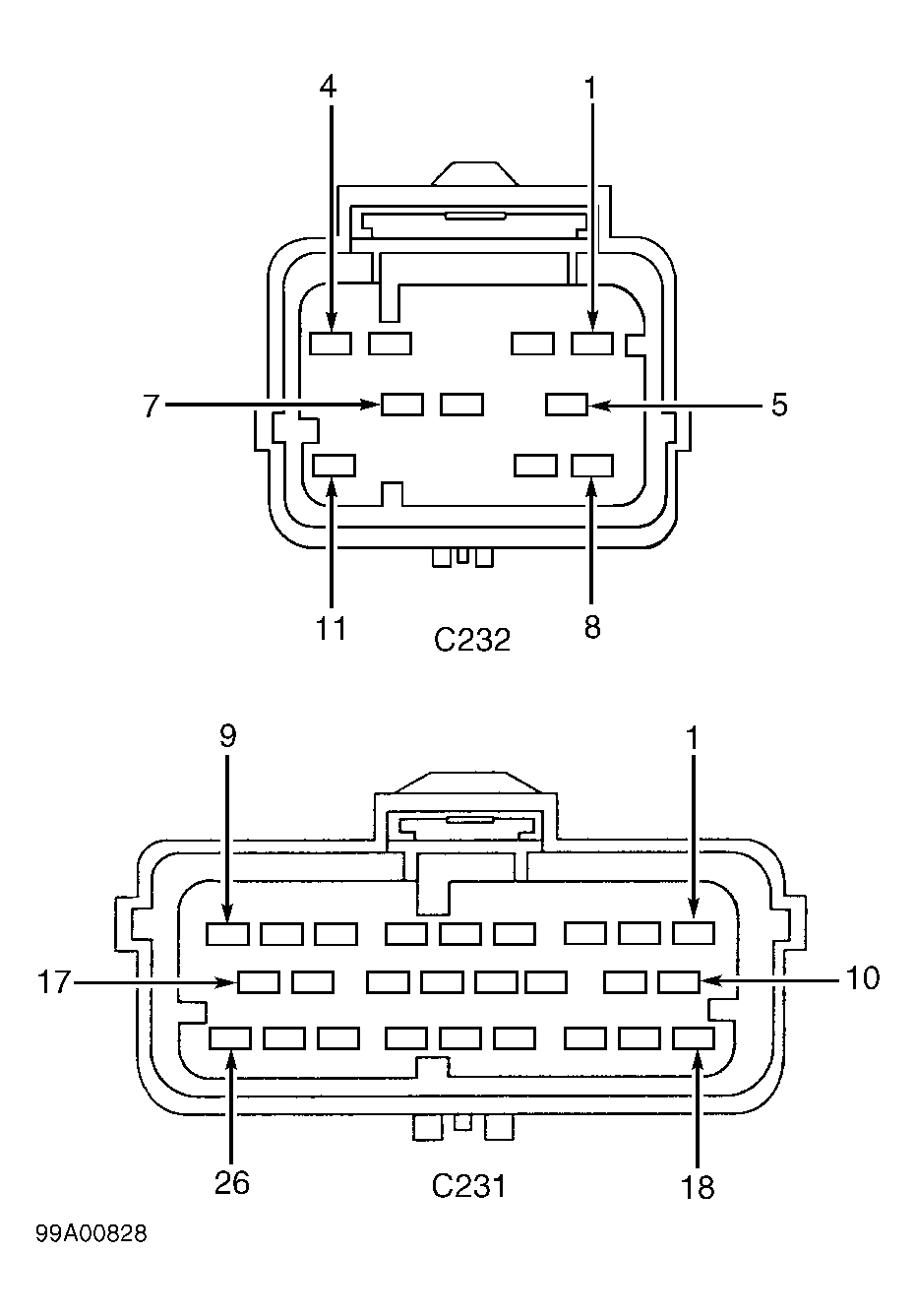

DIAGNOSTIC SYMPTOMS
| Condition | Go To Test |
|---|---|
| AIR BAG warning light on continuously | TEST A |
| Audible tone/DTCs retrieved | TEST AB TEST AC |
| No communication with RCM | TEST AF |
DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
| Fault Code/Flash Code | Go To Test | ||||||
|---|---|---|---|---|---|---|---|
| B1231/19 | TEST C | ||||||
| B1342/24 | TEST B | ||||||
| B1869(1) | TEST AD | ||||||
| B1870(1) | TEST AE | ||||||
| B1887/15 | TEST F | ||||||
| B1888/16 | TEST G | ||||||
| B1891/(2) | TEST AC | ||||||
| B1892/(2) | TEST AB | ||||||
| B1916/15 | TEST H | ||||||
| B1921/21 | TEST D | ||||||
| B1925/16 | TEST I | ||||||
| B1932/32 | TEST J | ||||||
| B1933/33 | TEST K | ||||||
| B1934/34 | TEST L | ||||||
| B1935/35 | TEST M | ||||||
| B1992/36 | TEST V | ||||||
| B1993/36 | TEST T | ||||||
| B1994/36 | TEST X | ||||||
| B1995/36 | TEST Z | ||||||
| B1996/37 | TEST W | ||||||
| B1997/37 | TEST U | ||||||
| B1998/37 | TEST Y | ||||||
| B1999/37 | TEST AA | ||||||
| B2440/43 | TEST O | ||||||
| B2441/42 | TEST P | ||||||
| B2444/48 | TEST N | ||||||
| B2445/49 | TEST Q | ||||||
| C1414/29 | TEST E | ||||||
| U2017/44 | TEST R | ||||||
| U2018/45 | TEST S | ||||||
| (3) | TEST AG | ||||||
|
|||||||
