Automatic Transmission - Overhaul - Ax4S: Identification: Notes
NOTE:
The AX4S transaxle was also known as AXOD-E.
The AX4S transaxle is identified by the code letter "L", shown on the Vehicle Certification Label under "TR". The label is located on the driver's door lock panel or door pillar.

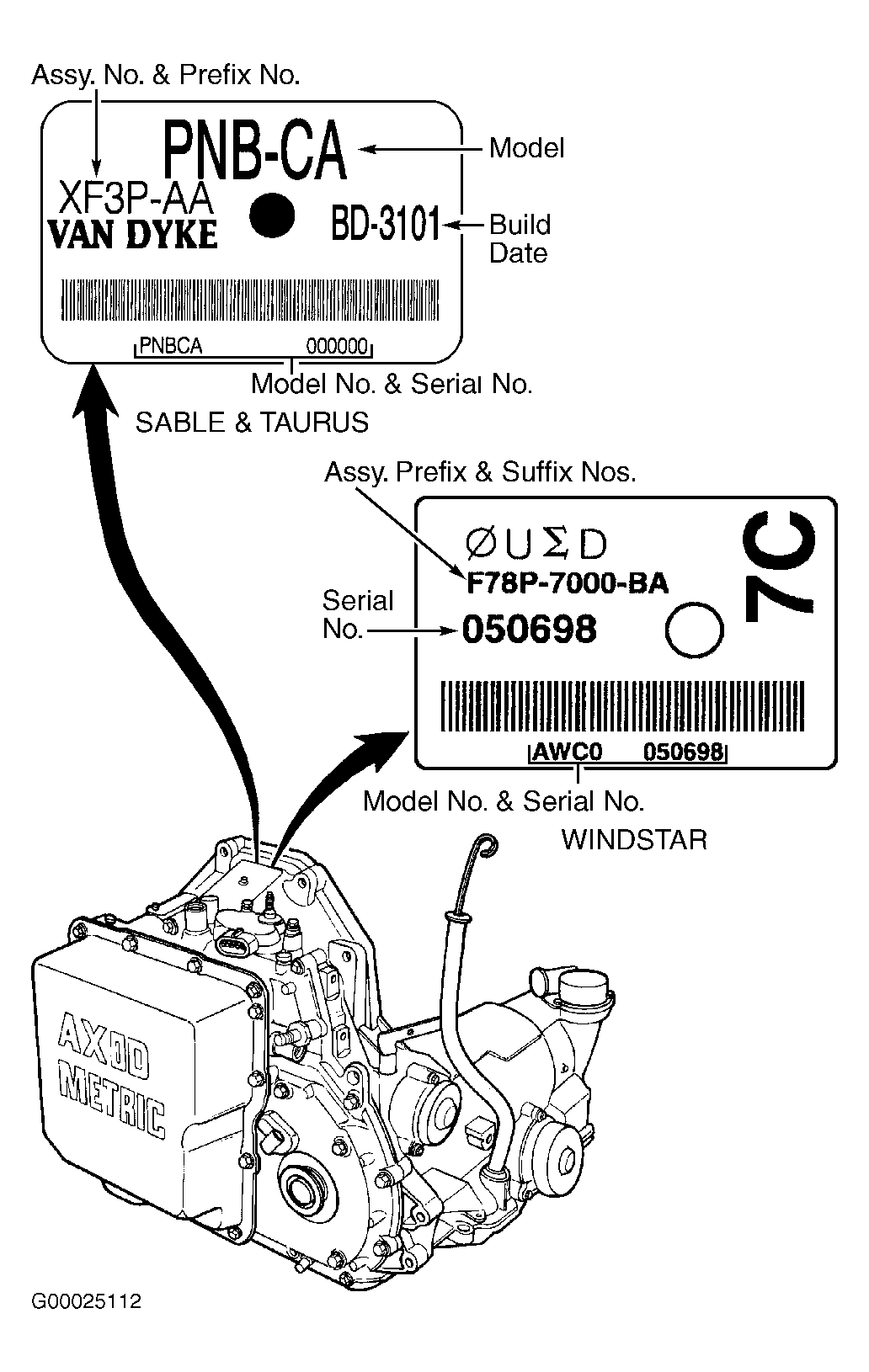

The transaxle also has an identification tag attached to the top of the torque converter housing. Use this information when servicing or ordering replacement parts. See Fig 1 .
