Mode 6 - 2000 Ford - Except Diesel
›
Rear Ho2S Monitor
Rear Ho2S Monitor

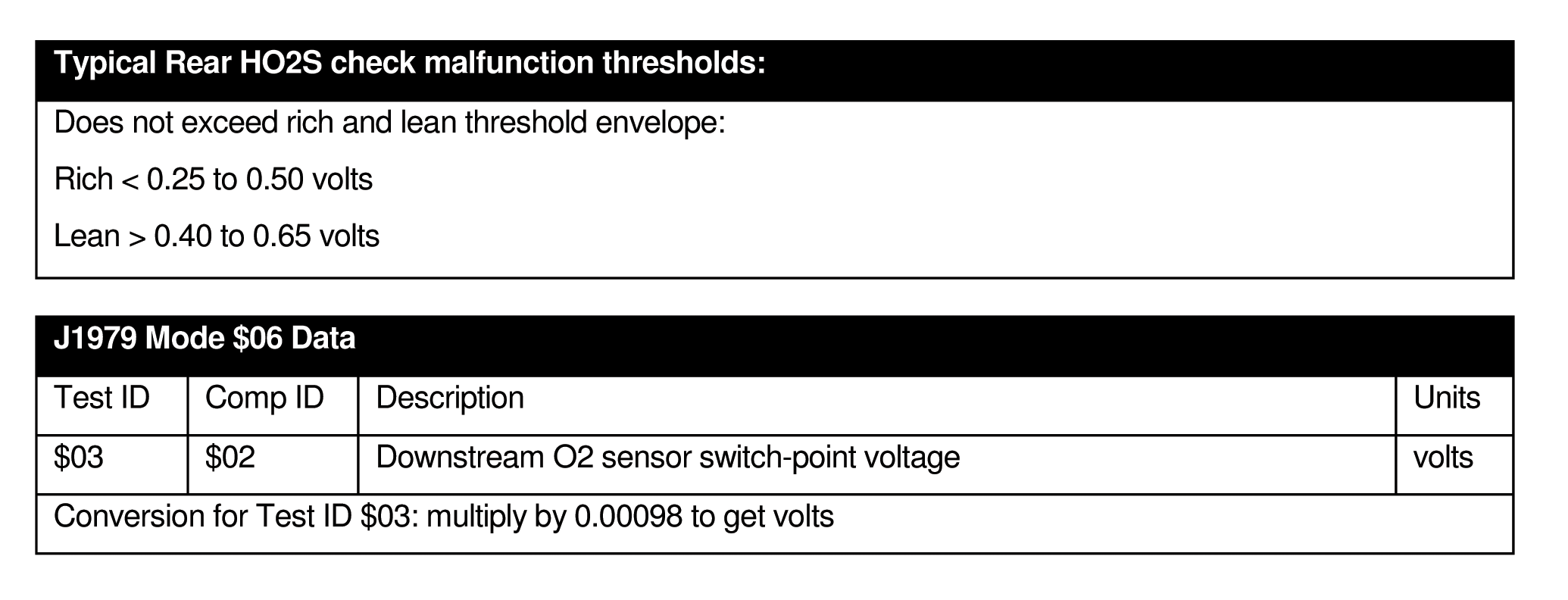

Fig 1: Mode $06 Data For Rear HO2S Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
