Section 1006 (Climate Control)
›
Removal And Installation
›
Blower Motor
›
Notes
Blower Motor: Notes
WARNING:
This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

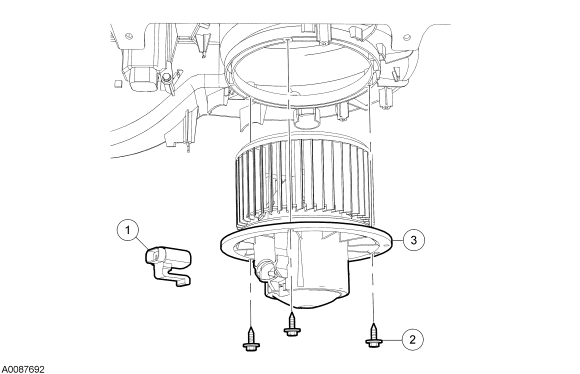

Fig 1: Exploded View Of Blower Motor
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Blower motor electrical connector
2
W701696
Blower motor screw (3 required)
3
19805
Blower motor
