Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

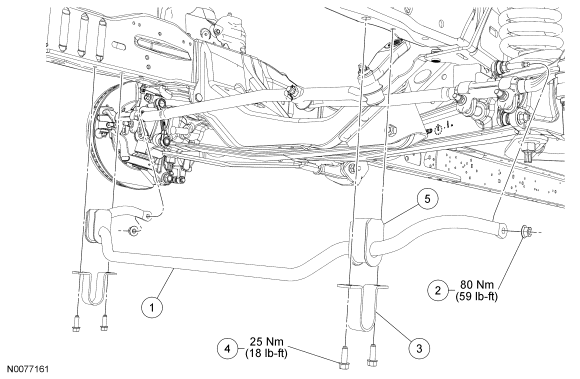

Fig 1: Exploded View Of Stabilizer Bar With Torque Specifications
GF0044625Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5482 Stabilizer bar
2 W710269 Stabilizer bar link lower nuts (2 required)
3 5486 Stabilizer bar bracket (2 required)
4 N801954 Stabilizer bar bracket bolt (4 required)
5 5484 Stabilizer bar bushing (2 required)
