Stabilizer Bar Link: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

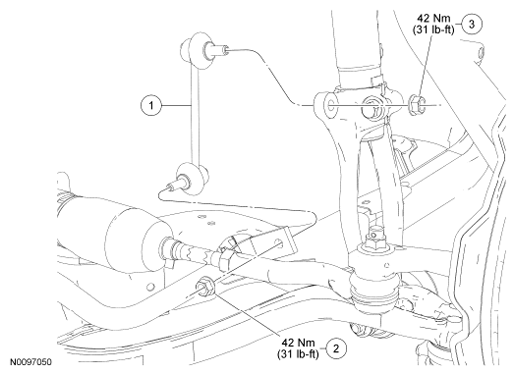

Fig 1: Identifying Stabilizer Bar Link Replacement Components With Torque Specifications
G06269413Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 3053 LH/3052 RH Stabilizer bar link
2 3C494 Stabilizer bar link lower nut
3 3C494 Stabilizer bar link upper nut
