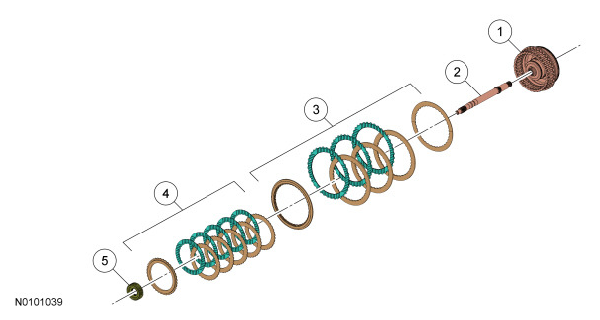

Input Shaft Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
7G384 |
Direct (3, 5, R)/Overdrive (O/D) (4, 5, 6) clutch hub |
| 2 |
7F213 |
Input shaft |
| 3 |
7B164 |
Direct (3, 5, R) clutch |
| 4 |
7B164 |
O/D (4, 5, 6) clutch |
| 5 |
7D491 |
Center planetary sun gear |
