Main Control Valve Body

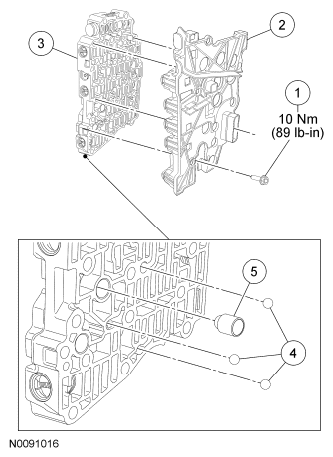

Fig 1: Main Control Valve Body Replacement Components (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

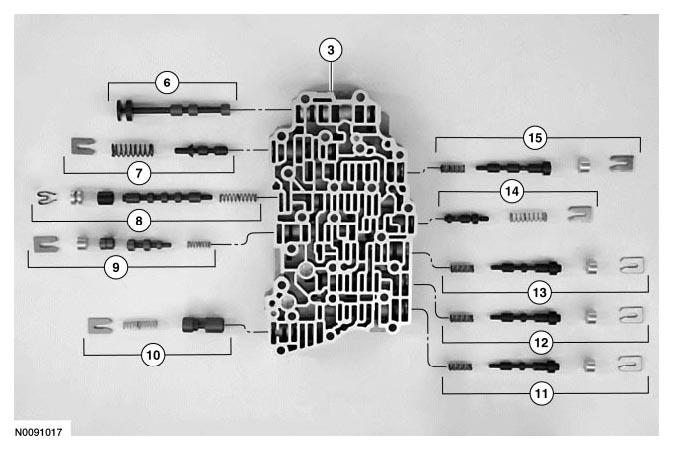

Fig 2: Identifying Main Control Valve Body Components (2 Of 2)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W500303	Solenoid body-to-valve body bolt
2	7G391	Solenoid body
3	7A100	Main control valve body
4	7E195	Check balls
5	7J191	Solenoid damper (Shift Solenoid A (SSA))
6	7C389	Manual valve
7	7G473	Solenoid pressure regulator valve assembly
8	7G179	Clutch bypass valve
9	7G307	Torque Converter Clutch (TCC) regulator valve
10	7B200	Control pressure regulator
11	7D102	Direct (3, 5, R) clutch regulator valve
12	7D102	Intermediate (2, 6) clutch regulator valve
13	7D102	Forward (1, 2, 3, 4) clutch regulator valve
14	7J187	Forward (1, 2, 3, 4) clutch latch valve
15	7D102	Low reverse/overdrive (4, 5, 6) clutch regulator valve
