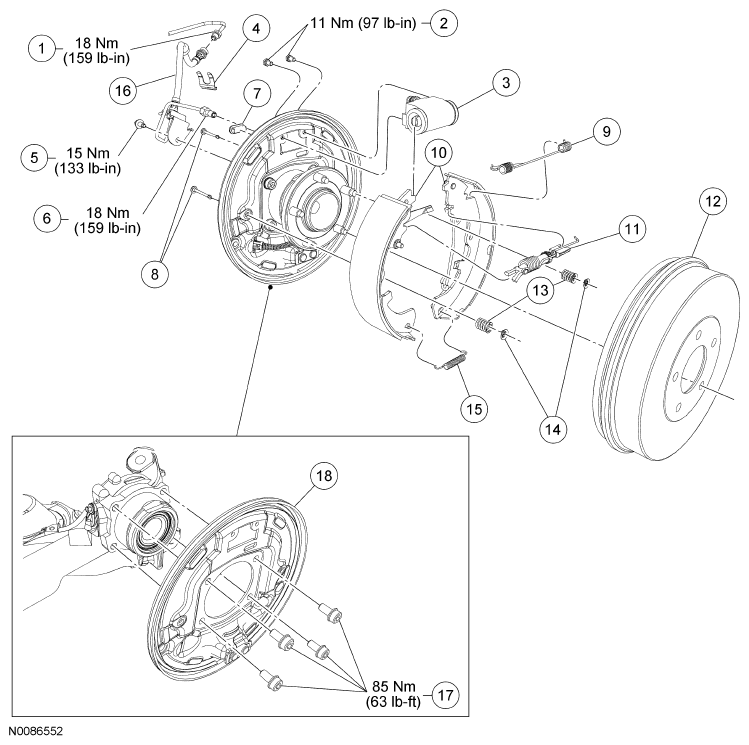

Drum Brake System - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake tube fitting (part of 2265 RH/2268 LH) |
| 2 | 2276 | Wheel cylinder bolts |
| 3 | 2261 | Wheel cylinder |
| 4 | 2B223 | Brake flexible hose clip |
| 5 | W500220 | Brake flexible hose bracket bolt |
| 6 | - | Brake flexible hose fitting (part of 2A361) |
| 7 | - | Plug (part of kit 2128) |
| 8 | - | Brake shoe retaining pins (part of kit 2A225) |
| 9 | - | Upper return spring (part of kit 2A225) |
| 10 | 2200 | Brake shoe (kit) |
| 11 | 2040 RH/2041 LH | Self-adjuster assembly |
| 12 | 1126 | Brake drum |
| 13 | - | Brake shoe retaining springs (part of kit 2A225) |
| 14 | - | Brake shoe retaining spring plates (part of kit 2A225) |
| 15 | - | Lower return spring (part of kit 2A225) |
| 16 | 2A442 | Brake flexible hose |
| 17 | 2216 | Backing plate bolts |
| 18 | 2211 RH/2212 LH | Backing plate |
- For additional information, refer to the appropriate procedure(s).
