Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

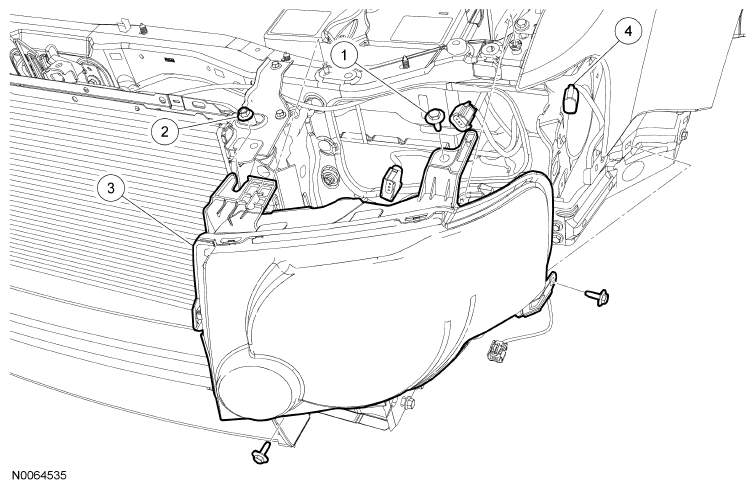

Fig 1: Identifying Headlamp Assembly With Nut, Bolts And Electrical Connectors

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Headlamp assembly bolts (3 required)
2	-	Headlamp assembly nut
3	13008	Headlamp assembly
4	-	Electrical connectors (part of 14290)
