Ignition Switch: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

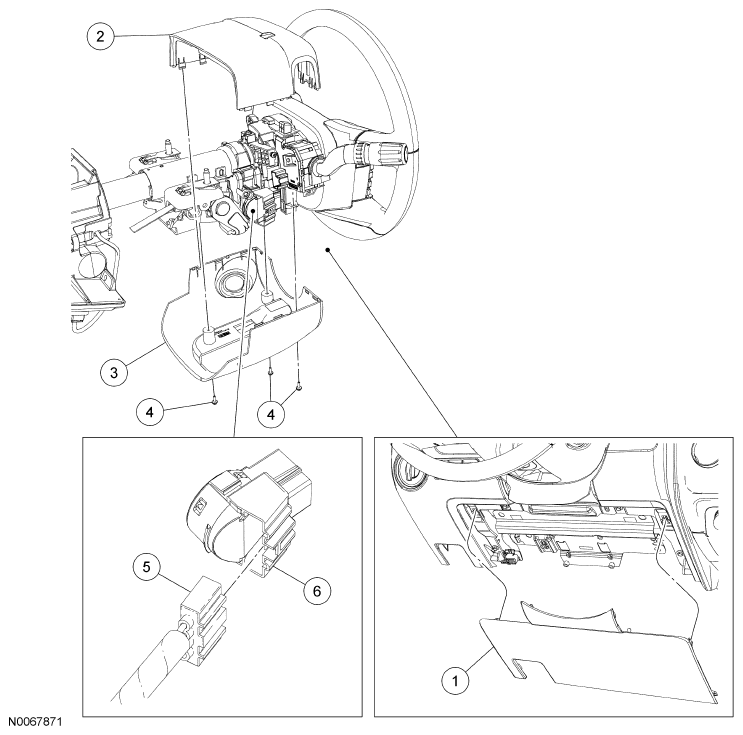

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
3524 |
Steering column opening trim |
| 2 |
3530 |
Upper steering column shroud |
| 3 |
3530 |
Lower steering column shroud |
| 4 |
W707658 |
Lower steering column shroud screws (3 required) |
| 5 |
- |
Ignition switch electrical connector (part of 14401) |
| 6 |
11572 |
Ignition switch |
