Steering Column Multifunction Switch: Notes
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

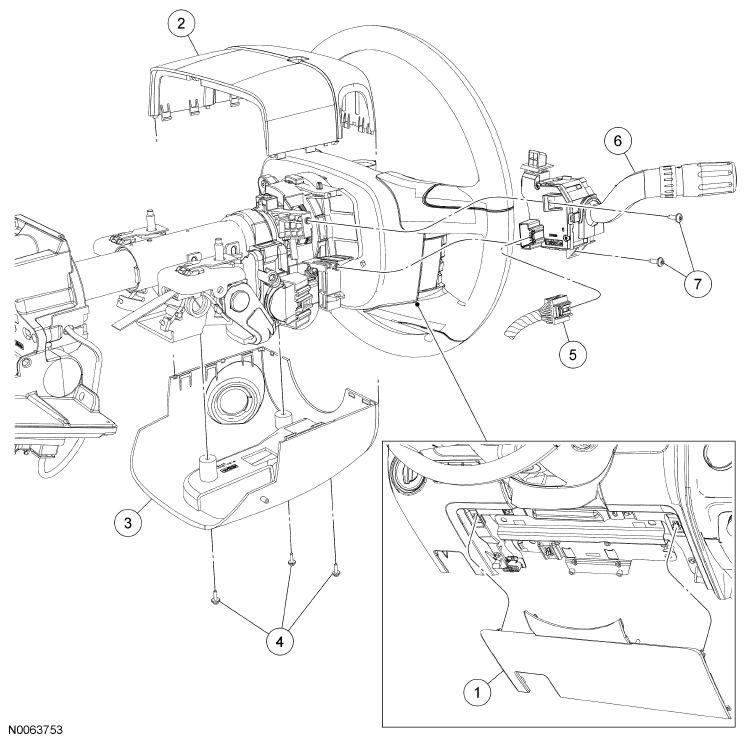

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3524 | Steering column opening trim |
| 2 | 3530 | Upper steering column shroud |
| 3 | 3530 | Lower steering column shroud |
| 4 | W707658 | Lower steering column shroud screws (3 required) |
| 5 | - | Multifunction switch electrical connector (part of 14401) |
| 6 | W503521 | Multifunction switch |
| 7 | W506943 | Multifunction switch screws (2 required) |
