Knock Sensor (KS): Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

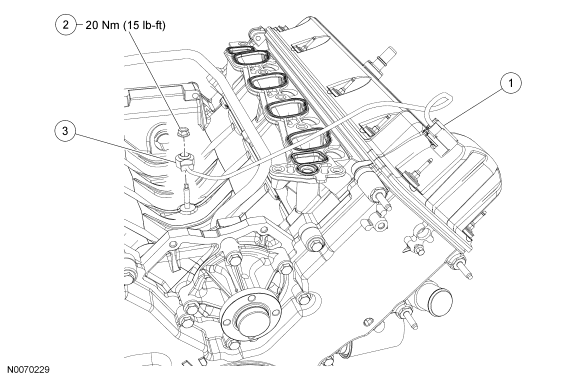

Fig 1: Exploded View Of Knock Sensor (KS) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Knock sensor (KS) electrical connector
2	N804178	KS nut
3	12A699	KS
