Passenger Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

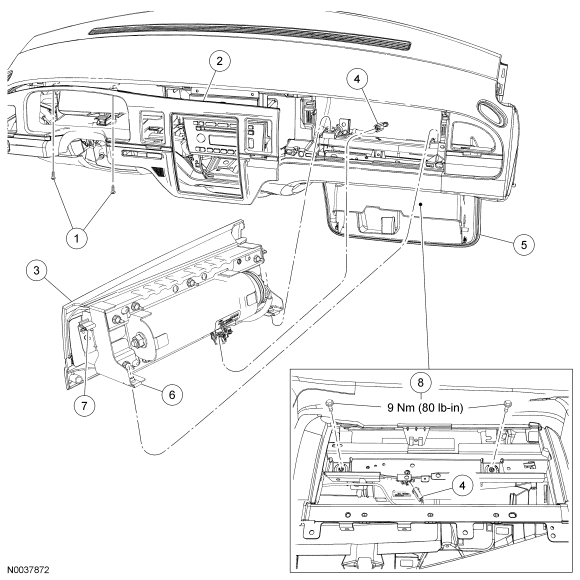

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Instrument cluster finish panel screws (2 required) |
| 2 | 044D70 | Instrument cluster finish panel |
| 3 | 044A74 | Passenger air bag module |
| 4 | - | Passenger air bag module electrical connectors (part of 14401) |
| 5 | 060T10 | Glove compartment |
| 6 | - | Passenger air bag module J-clip (2 required) (part of 044A74) |
| 7 | - | Passenger air bag module retaining clip (2 required) (part of 044A74) |
| 8 | N807122 | Passenger air bag module bolts (2 required) |
