Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

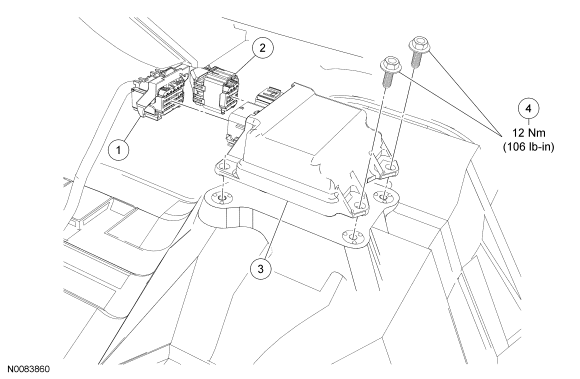

Fig 1: Large Restraint Control Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Large Restraints Control Module (RCM) connector (part of 14A005)
2	-	Small RCM connector (part of 14401)
3	14B321	RCM
4	W707935	RCM bolts (3 required)
