Stabilizer Bar Link: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

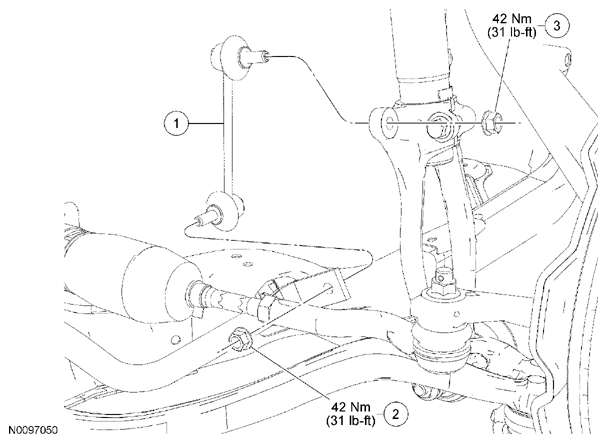

Fig 1: Exploded View Of Stabilizer Bar Link Components With Torque Specifications
G07784082Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 3053 LH/3052 RH Stabilizer bar link
2 3C494 Stabilizer bar link lower nut
3 3C494 Stabilizer bar link upper nut
