Coolant Control Valve Solenoid C1034

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

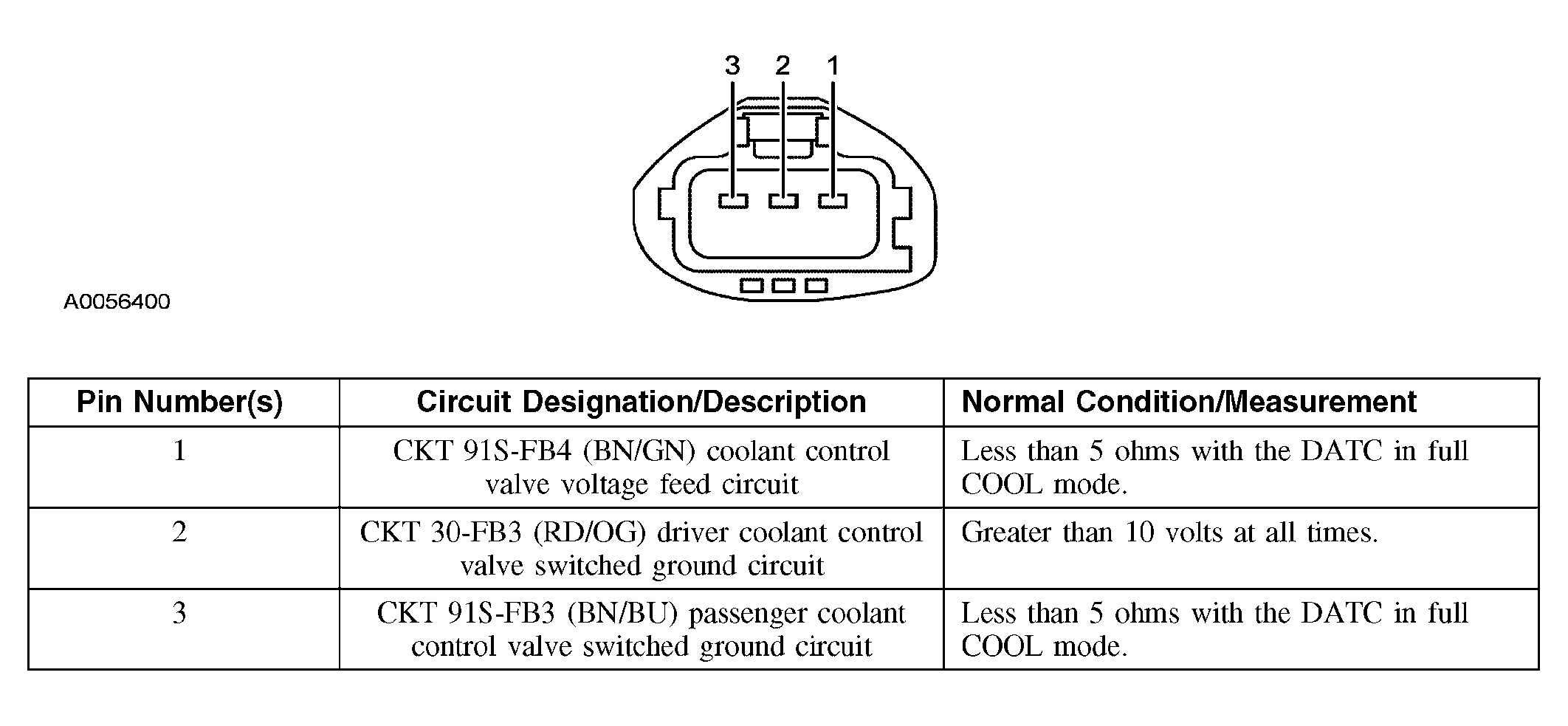

Fig 1: Identifying Coolant Control Valve Solenoid C1034 Connector Pins

Courtesy of FORD MOTOR CO.
