Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exploded View Of Passenger Air Bag Module Component (1 Of 2)

Courtesy of FORD MOTOR CO.

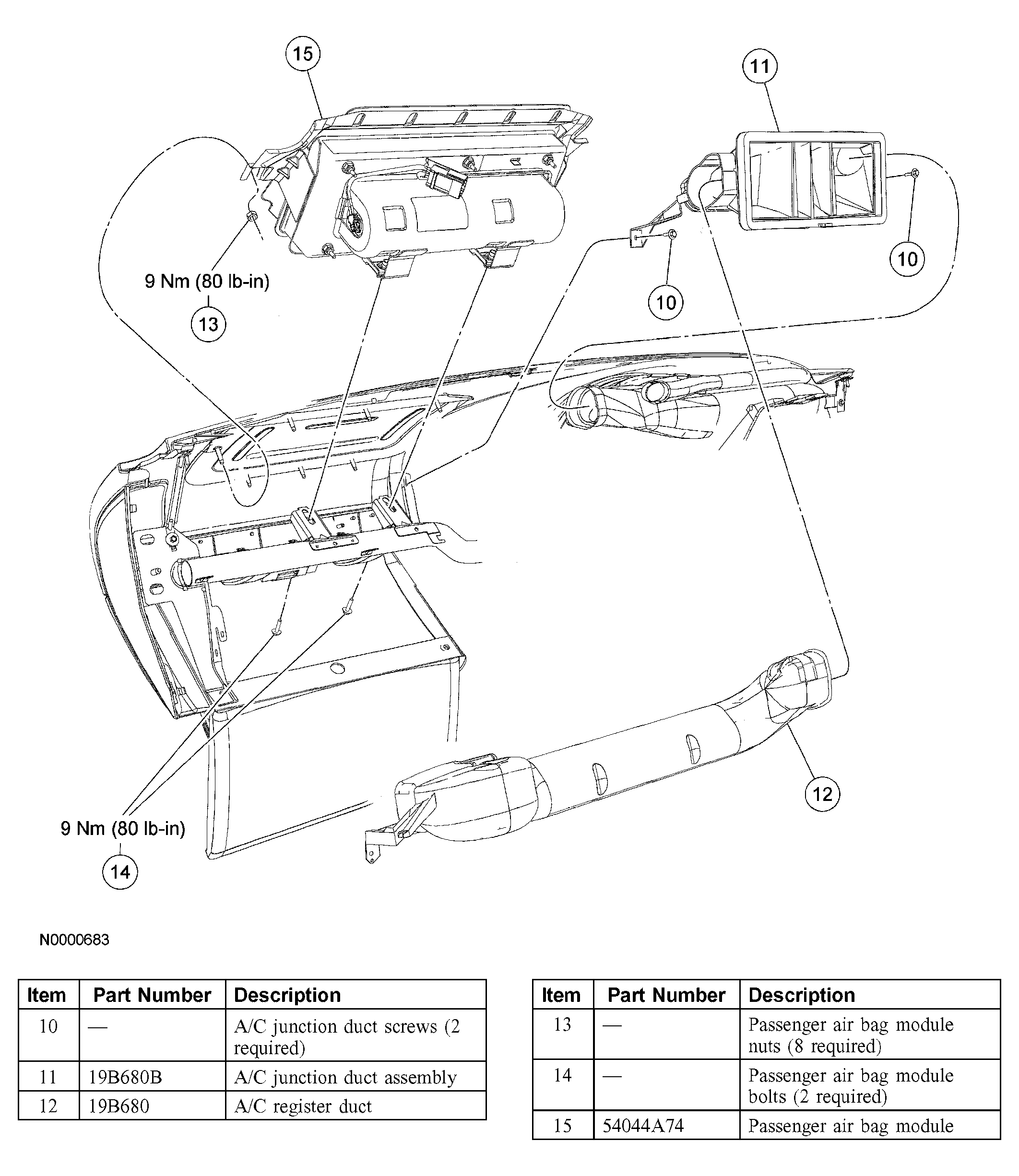

Fig 2: Exploded View Of Passenger Air Bag Module Component (2 Of 2)

Courtesy of FORD MOTOR CO.
