Wheel Speed Sensor - Rear: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

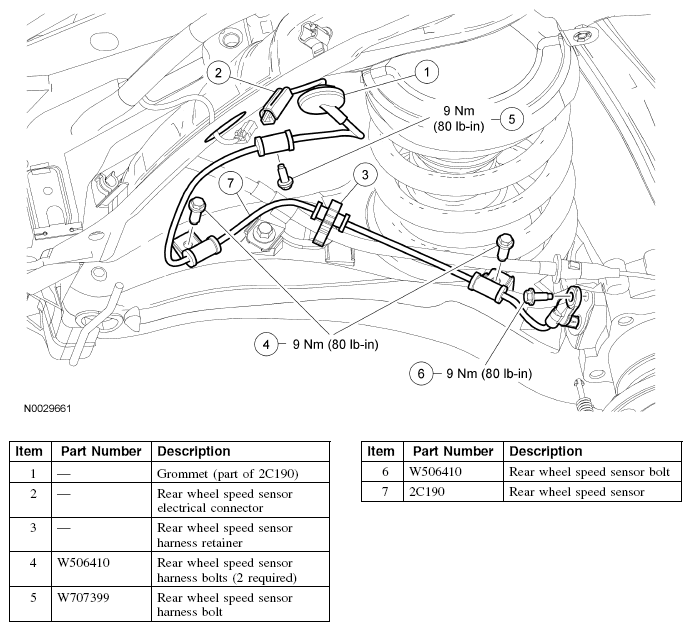

Fig 1: Wheel Speed Sensor Replacement Components - Rear With Torque Specifications

Courtesy of FORD MOTOR CO.
