Oil Pump: Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Position the oil pump and install the bolts.

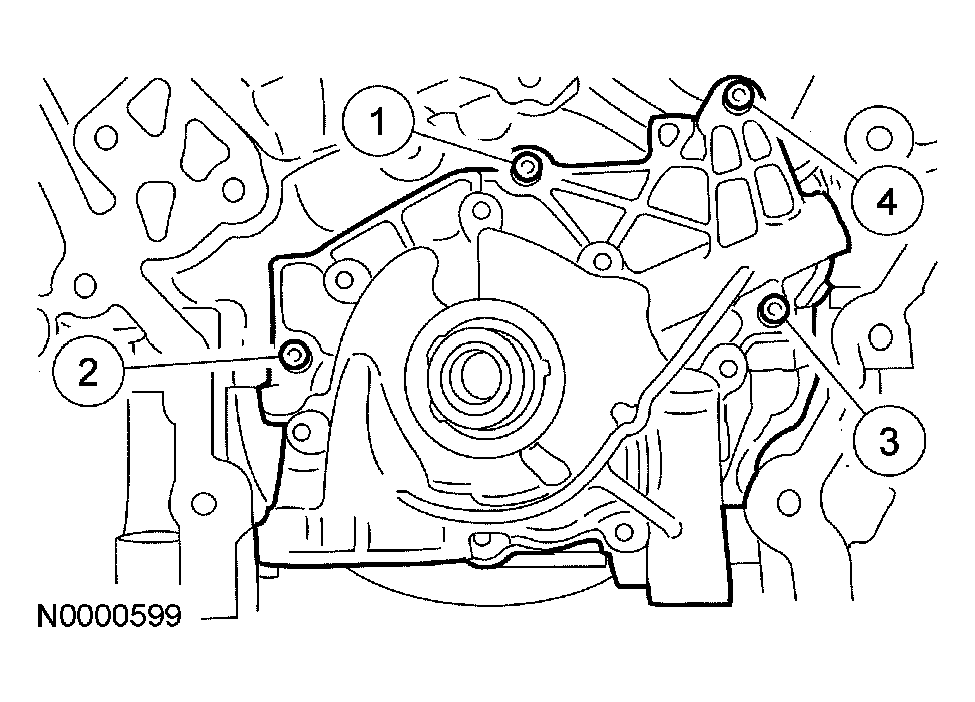

- Tighten in the sequence shown to 10 Nm (89 lb-in).
- Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW and OIL PUMP SCREEN AND PICKUP TUBE .
- Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
