Section 1210 (Cruise Control System)
›
Diagnosis And Testing
›
Speed Control
›
Connector Circuit Reference
›
Clockspring C2274a
Clockspring C2274a
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

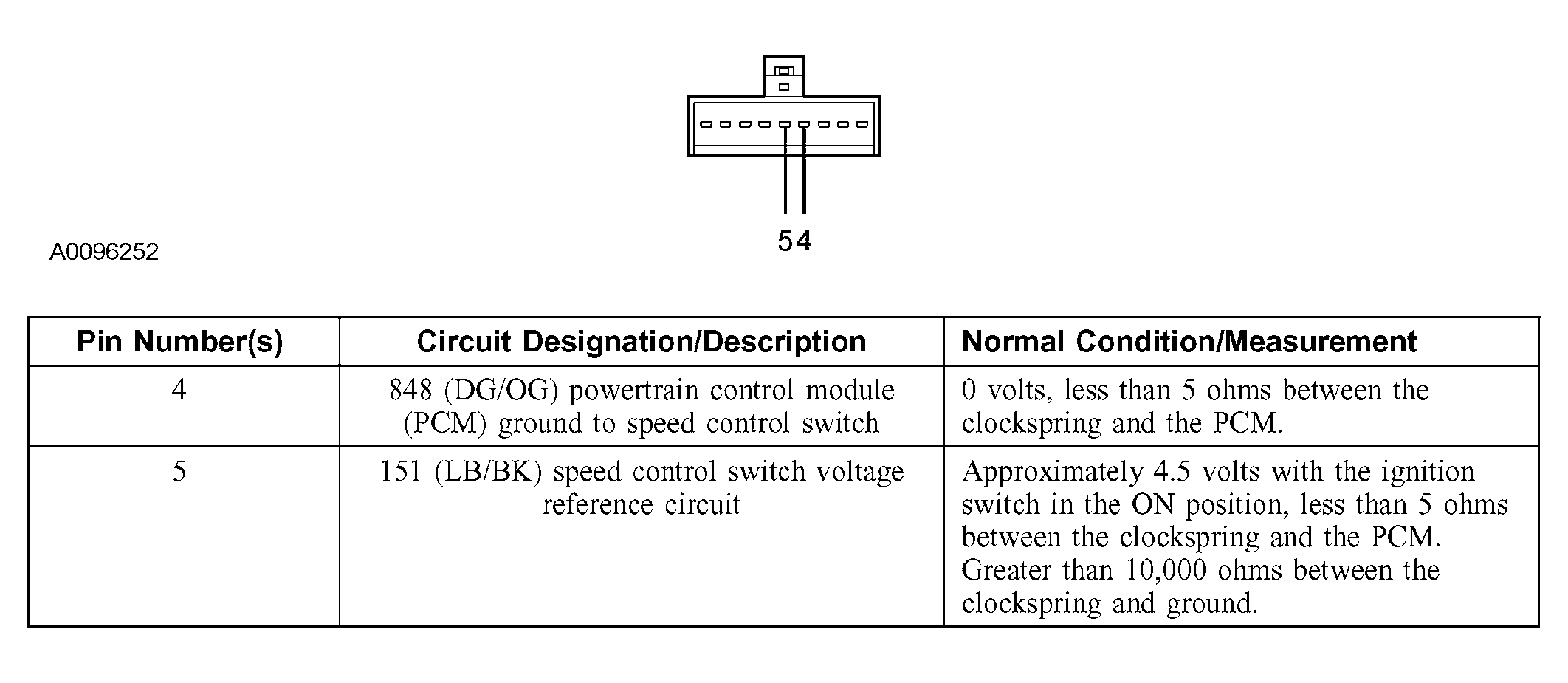

Fig 1: Identifying Clockspring C2274a Pins
Courtesy of FORD MOTOR CO.
