Section 1216 (Audio Unit System)
›
Removal And Installation
›
Audio Unit
›
Notes
Audio Unit: Notes
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

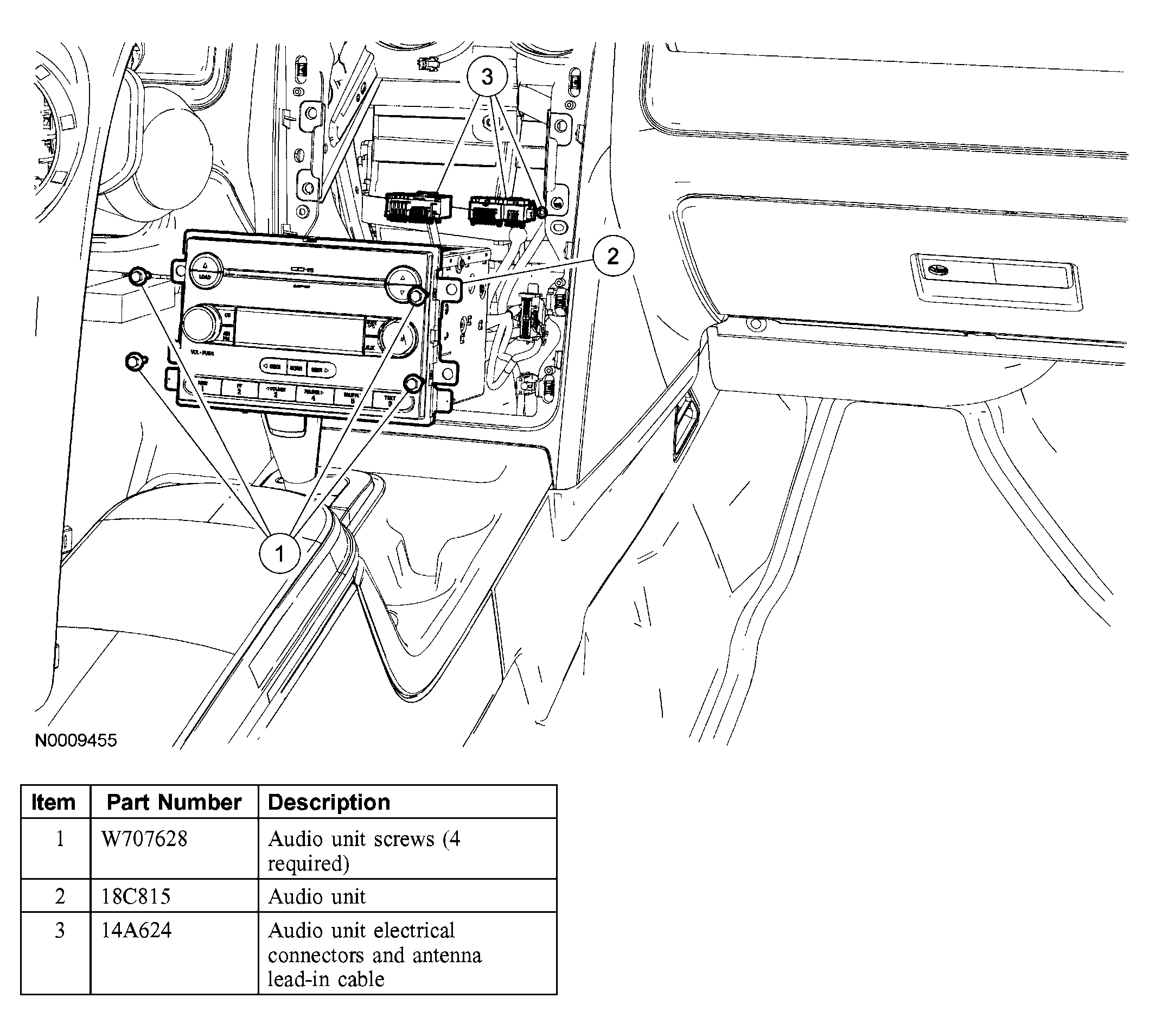

Fig 1: Removing/Installing Audio Unit
Courtesy of FORD MOTOR CO.
