Lumbar Control Switch C361

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

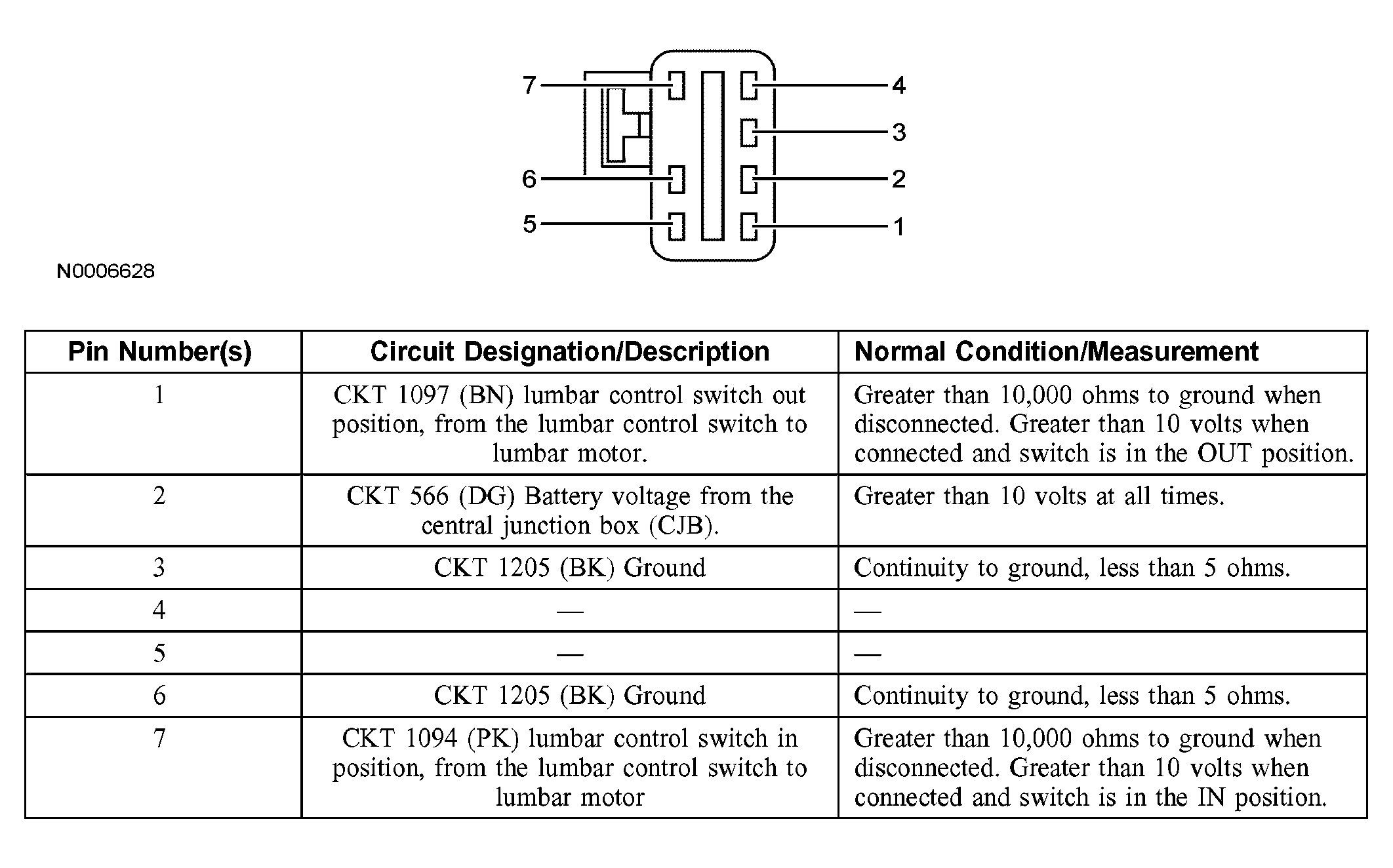

Fig 1: Identifying Lumbar Control Switch C361 Connector Terminals
G03953744Courtesy of FORD MOTOR CO.
