In-Vehicle Repair: Flywheel: Removal
WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- With vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
- Remove the transmission. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION - MTX75 .
- Remove the clutch assembly. For additional information, refer to CLUTCH - MTX75 TRANSAXLE .

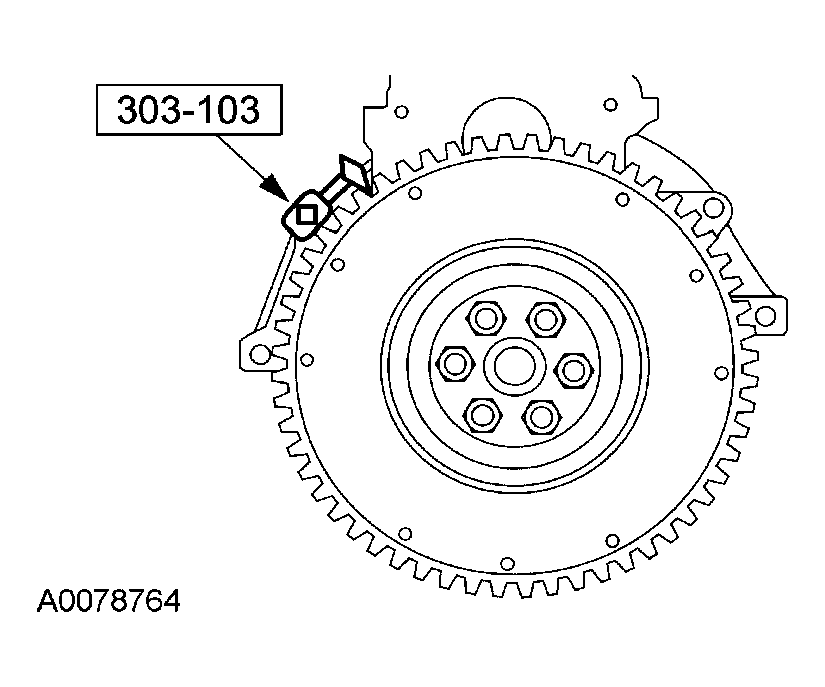

- Install the special tool and remove the bolts and the flywheel.
