Intake Manifold: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fan motor and shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the lower intake manifold bolt.

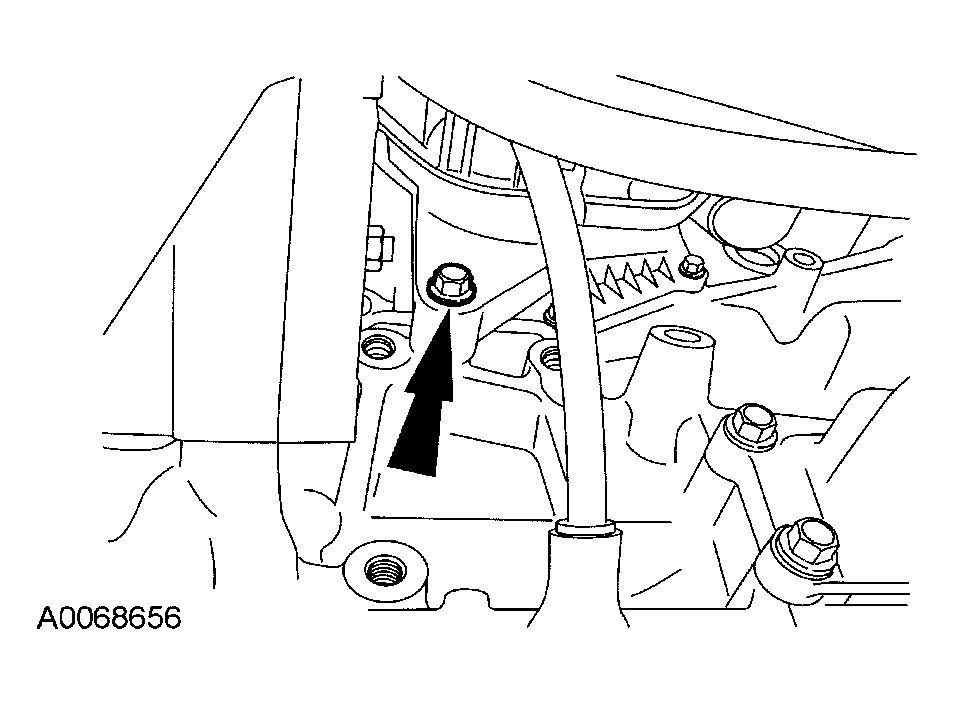

    Fig 1: Removing Lower Intake Manifold Bolt
    G04035370Courtesy of FORD MOTOR CO.
  3. Remove the accelerator control snow shield.

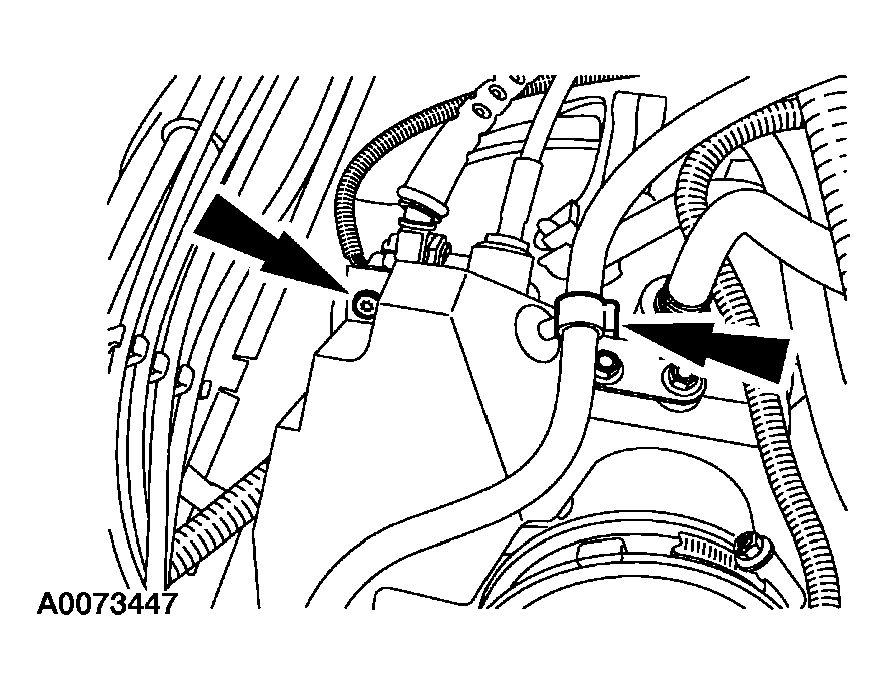

    Fig 2: Removing Accelerator Control Snow Shield
    G04035371Courtesy of FORD MOTOR CO.
  4. Remove the air cleaner outlet tube.
    • Loosen the retaining clamps.
    • Remove the emissions breather tube.
    • Remove the air cleaner outlet tube.

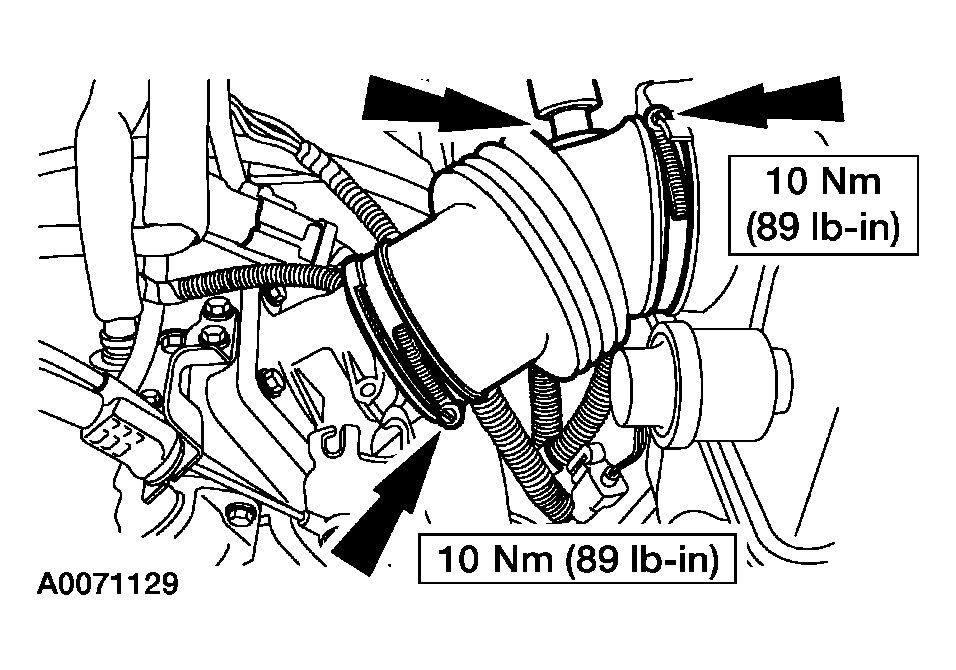

    Fig 3: Removing Air Cleaner Outlet Tube
    G04035372Courtesy of FORD MOTOR CO.
  5. Disconnect the throttle position (TP) sensor electrical connector and position the wiring harness aside.

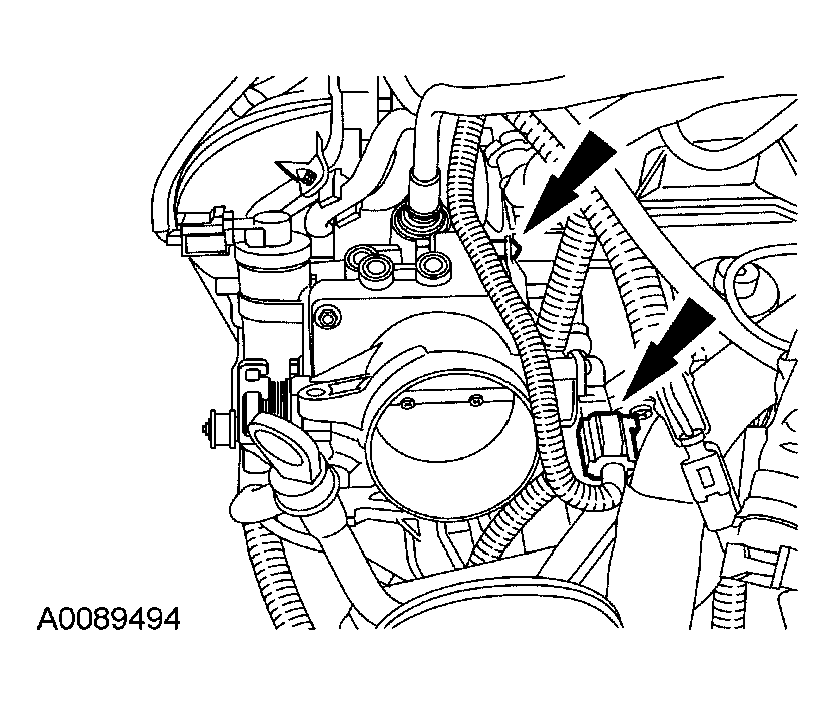

    Fig 4: Disconnecting Throttle Position Sensor Electrical Connector
    G04035373Courtesy of FORD MOTOR CO.
  6. Disconnect the idle air control (IAC) valve electrical connector and position the wiring harness aside.

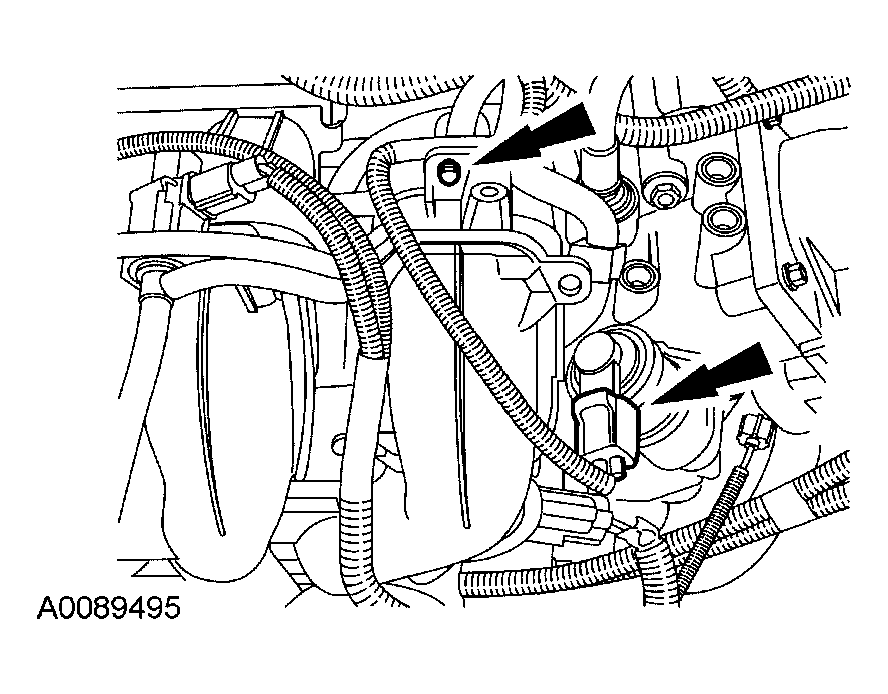

    Fig 5: Disconnecting Idle Air Control Valve Electrical Connector
    G04035374Courtesy of FORD MOTOR CO.
  7. Disconnect the throttle cables from the intake manifold.
    1. Disconnect the accelerator cable and speed control cable (if so equipped) from the throttle linkage.
    2. Remove the bolts from the accelerator cable bracket and position aside.

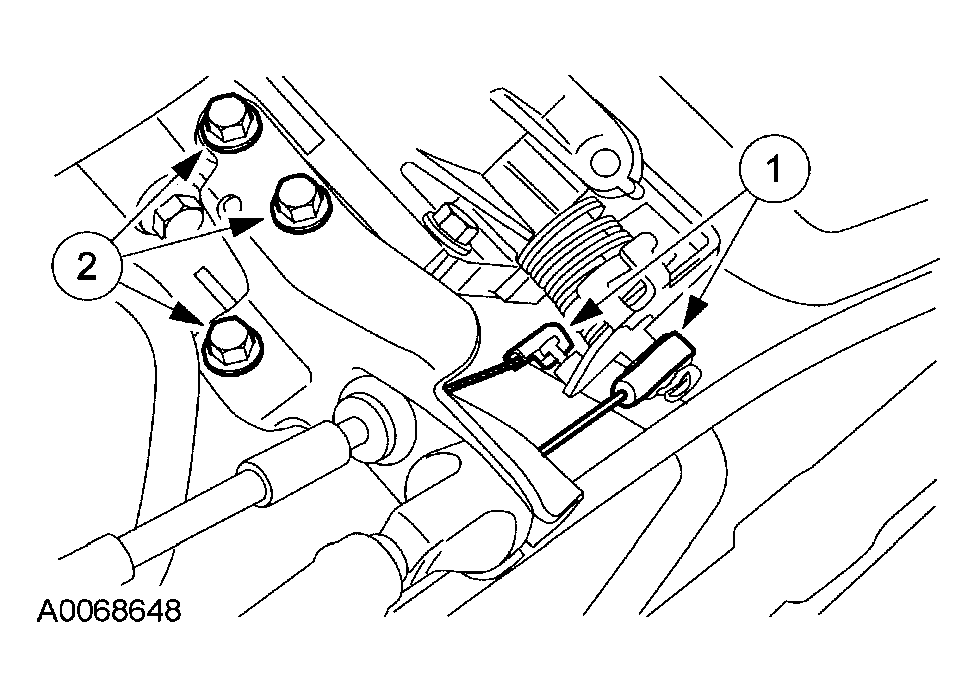

    Fig 6: Removing Bolts From Accelerator Cable Bracket
    G04035375Courtesy of FORD MOTOR CO.
  8. Remove the evaporative emissions hoses.

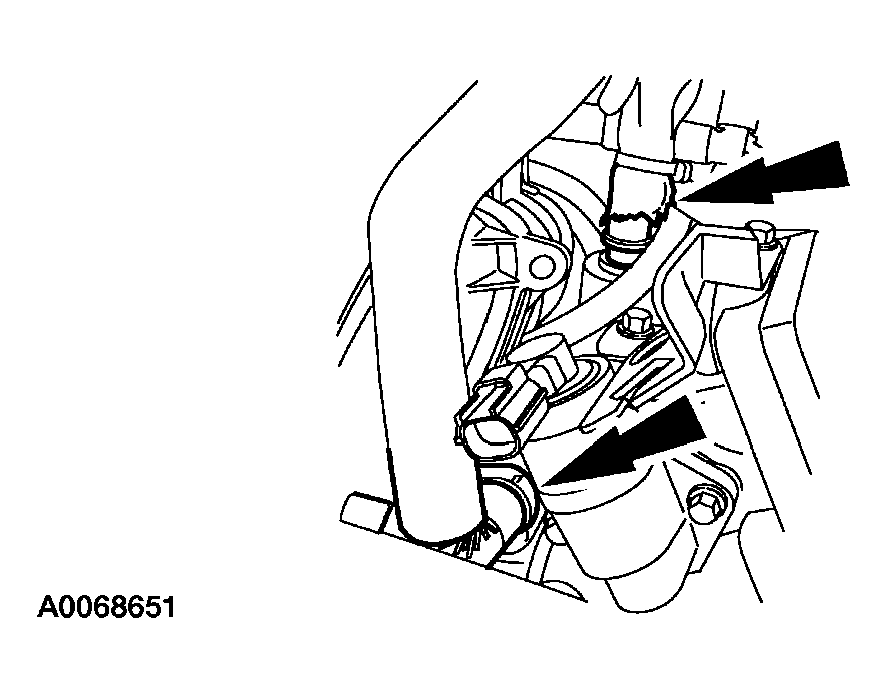

    Fig 7: Removing Evaporative Emissions Hoses
    G04035376Courtesy of FORD MOTOR CO.
  9. Disconnect the temperature manifold absolute pressure (TMAP) sensor electrical connector.

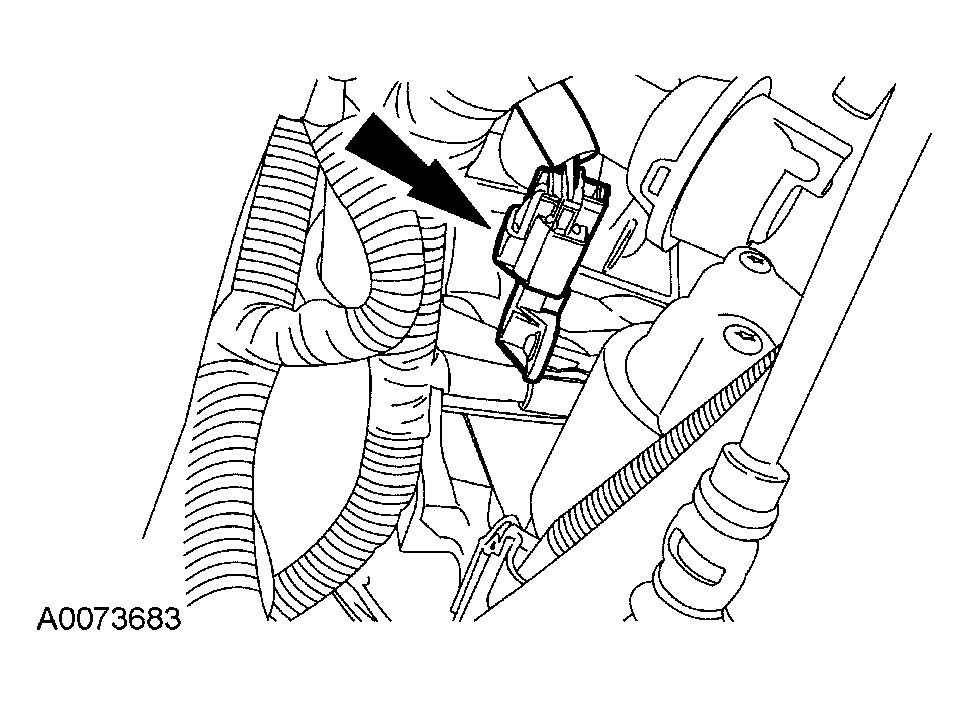

    Fig 8: Disconnecting Temperature Manifold Absolute Pressure Sensor Electrical Connector
    G04035377Courtesy of FORD MOTOR CO.
  10. Disconnect the electrical connectors and position the wiring harness aside.

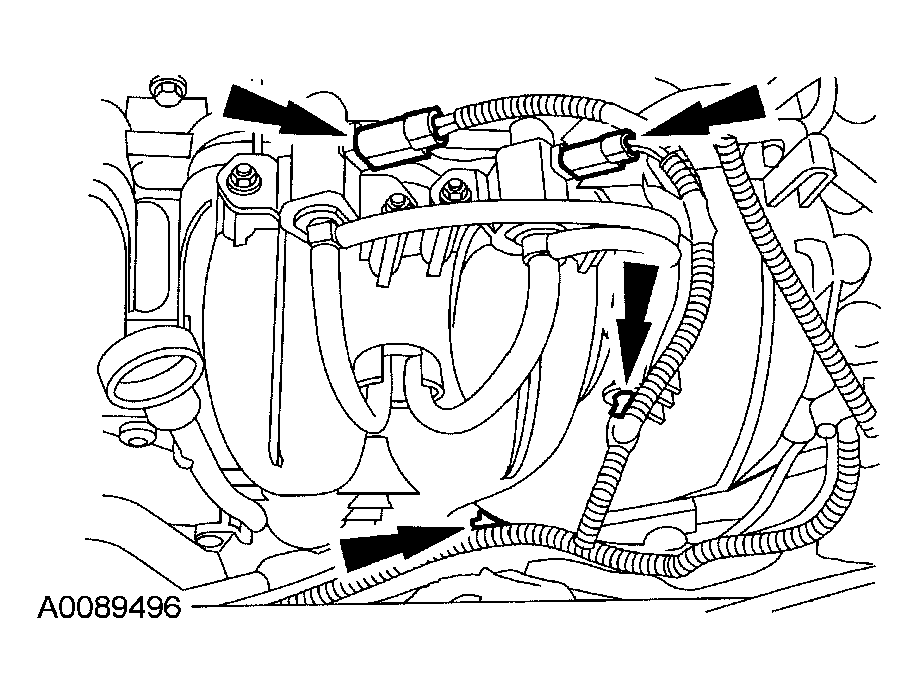

    Fig 9: Disconnecting Electrical Connectors And Position Wiring Harness
    G04035378Courtesy of FORD MOTOR CO.
  11. Disconnect the outward intake manifold runner control (IMRC) actuator electrical connector.

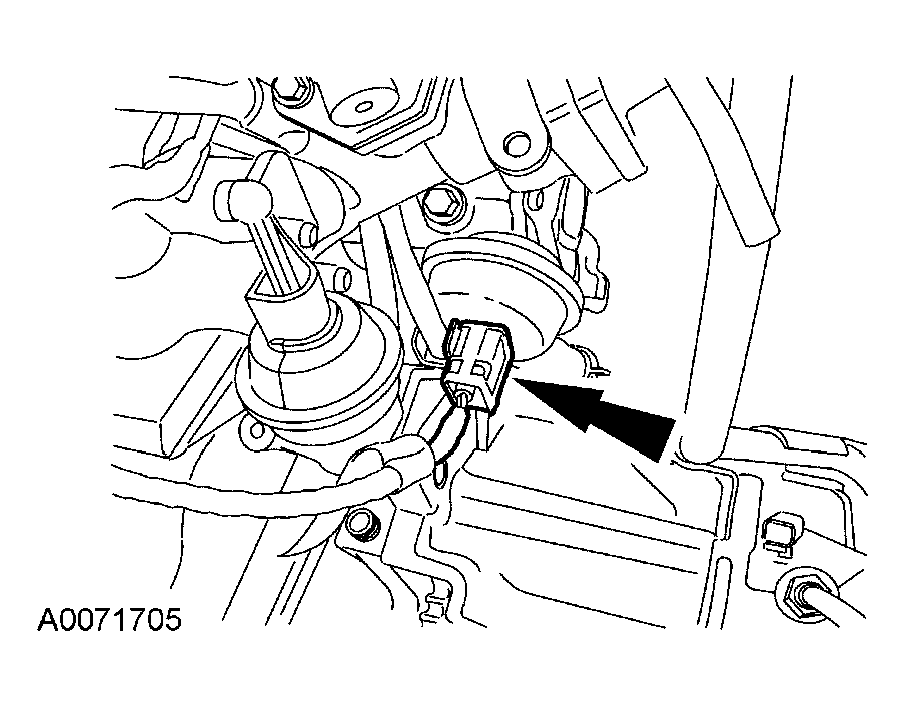

    Fig 10: Disconnecting Outward Intake Manifold Runner Control Actuator Electrical Connector
    G04035379Courtesy of FORD MOTOR CO.
  12. Disconnect the vacuum hose from the fuel pressure regulator.

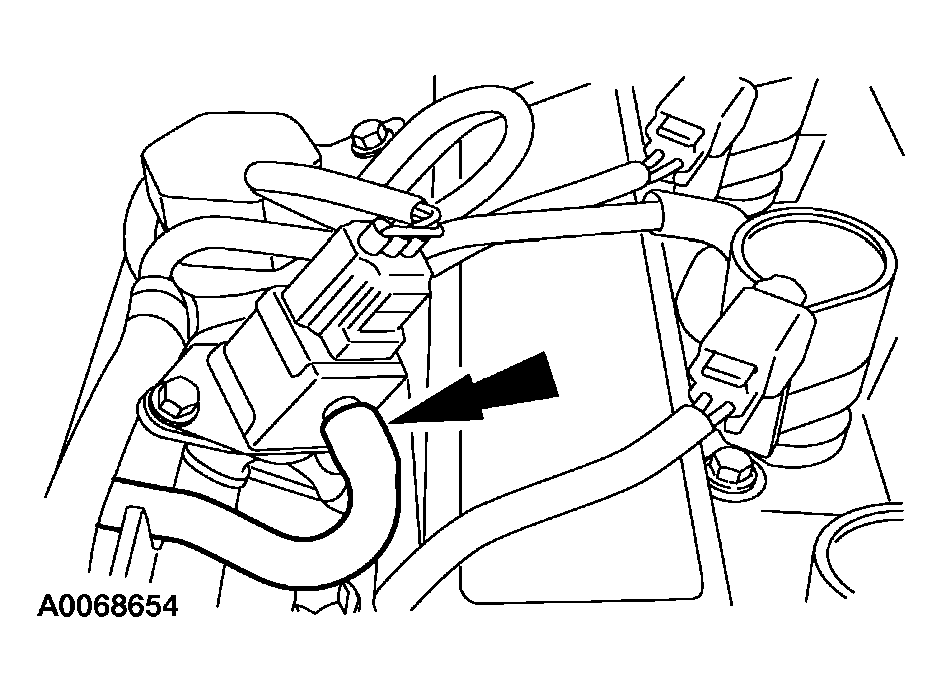

    Fig 11: Disconnecting Vacuum Hose From Fuel Pressure Regulator
    G04035380Courtesy of FORD MOTOR CO.
  13. Loosen the fuel injection supply manifold retainers.

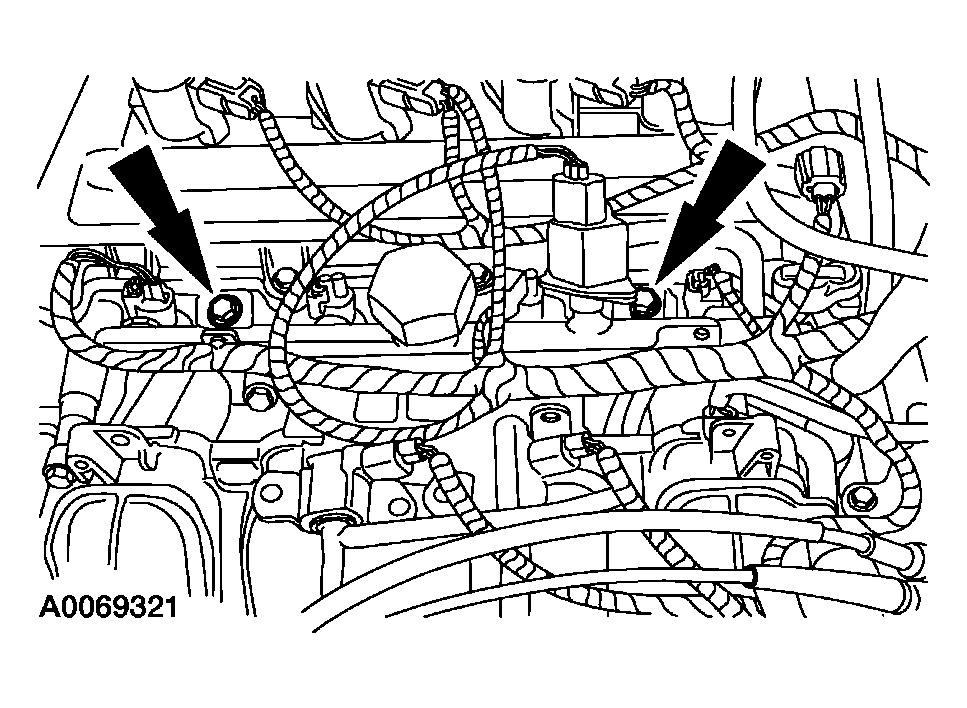

    Fig 12: Loosening Fuel Injection Supply Manifold Retainers
    G04035381Courtesy of FORD MOTOR CO.
  14. Disconnect the power brake booster vacuum tube.
    • Disconnect the quick release coupling and pull out the line.

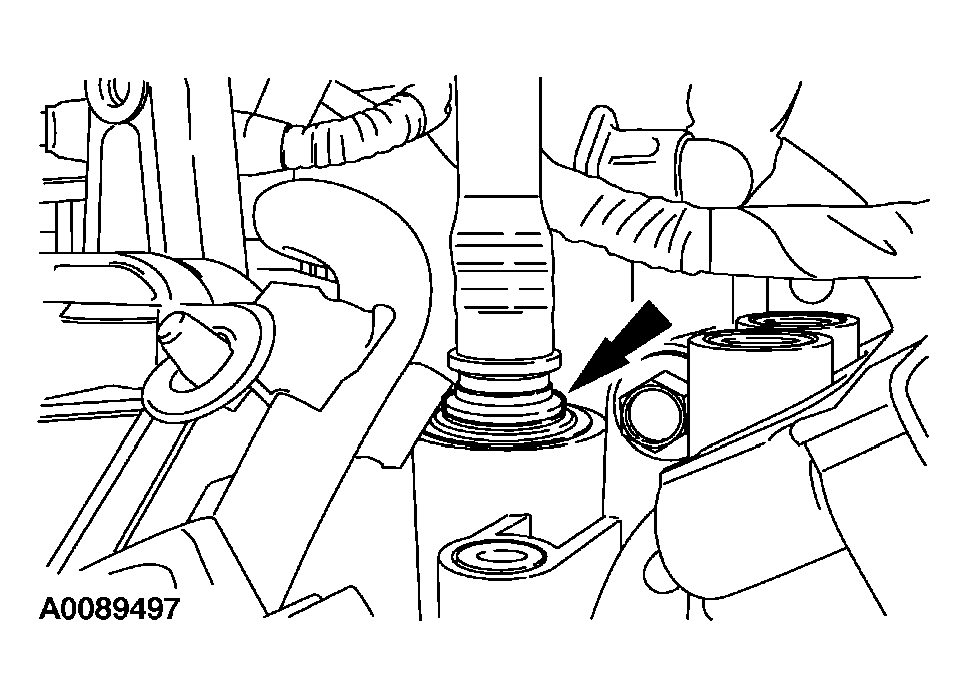

    Fig 13: Disconnecting Quick Release Coupling
    G04035382Courtesy of FORD MOTOR CO.
  15. Remove the two oil level indicator tube bolts.

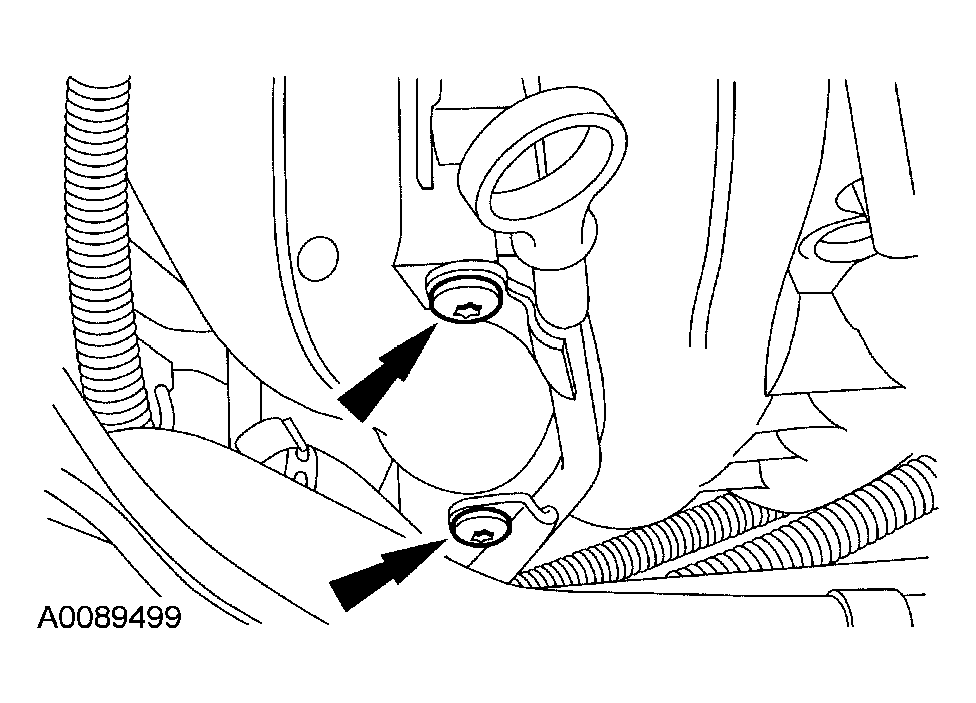

    Fig 14: Removing Oil Level Indicator Tube Bolts
    G04035383Courtesy of FORD MOTOR CO.
  16. NOTE: Engine shown removed for clarity.
    NOTE: There are two different size bolts used. Mark the location of the bolts to ensure installation in the correct location.

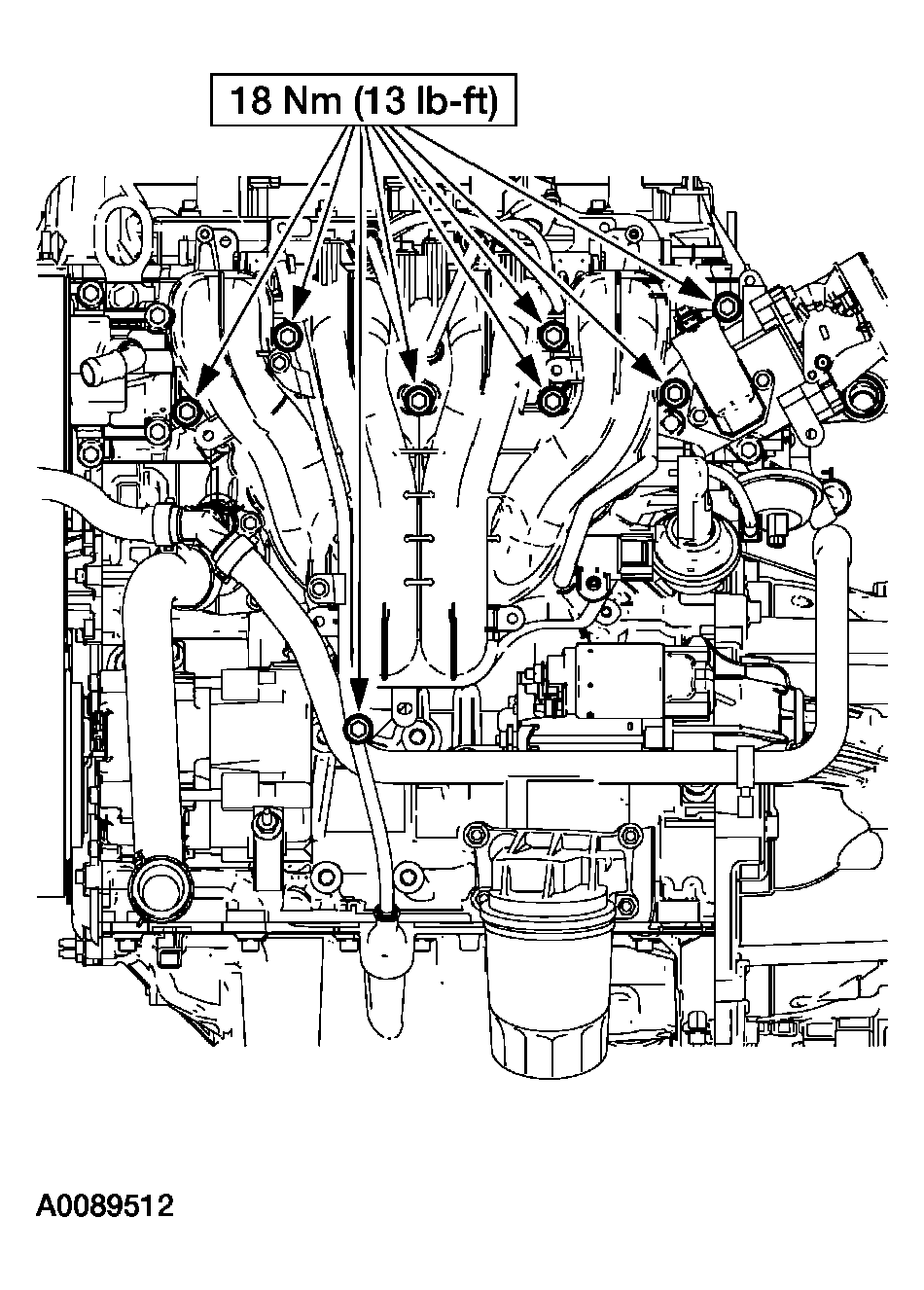

    Fig 15: Removing Intake Manifold Bolts
    G04035384Courtesy of FORD MOTOR CO.
  17. Remove the seven intake manifold bolts.
  18. Raise the intake manifold enough to gain clearance to disconnect the knock sensor (KS) wiring harness.

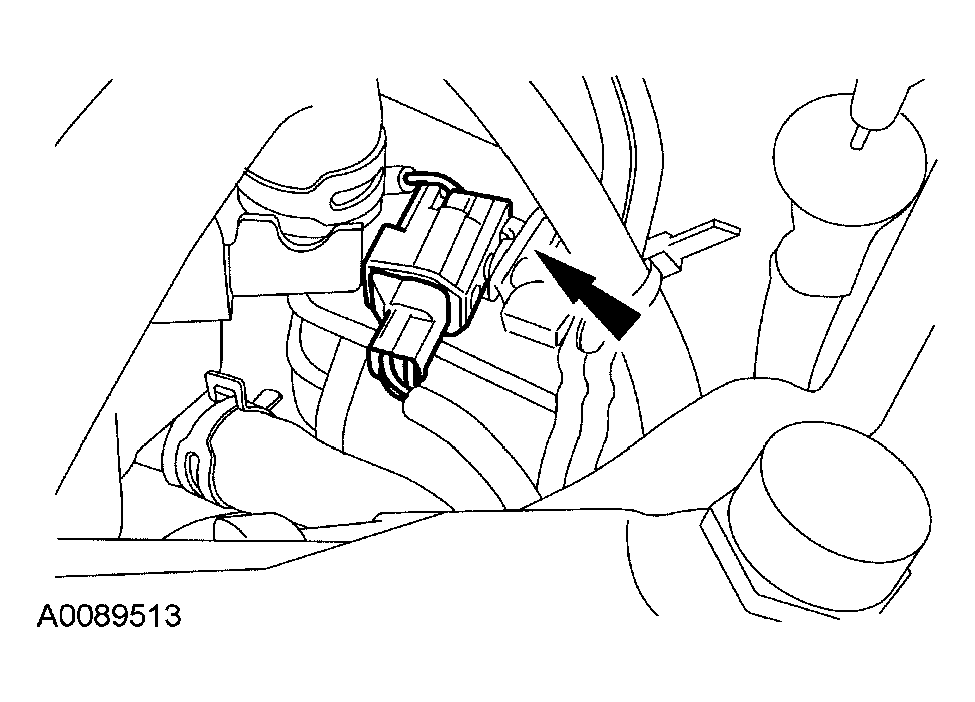

    Fig 16: Disconnecting Knock Sensor Wiring Harness
    G04035385Courtesy of FORD MOTOR CO.
  19. Disconnect the positive crankcase ventilation (PCV) hose.

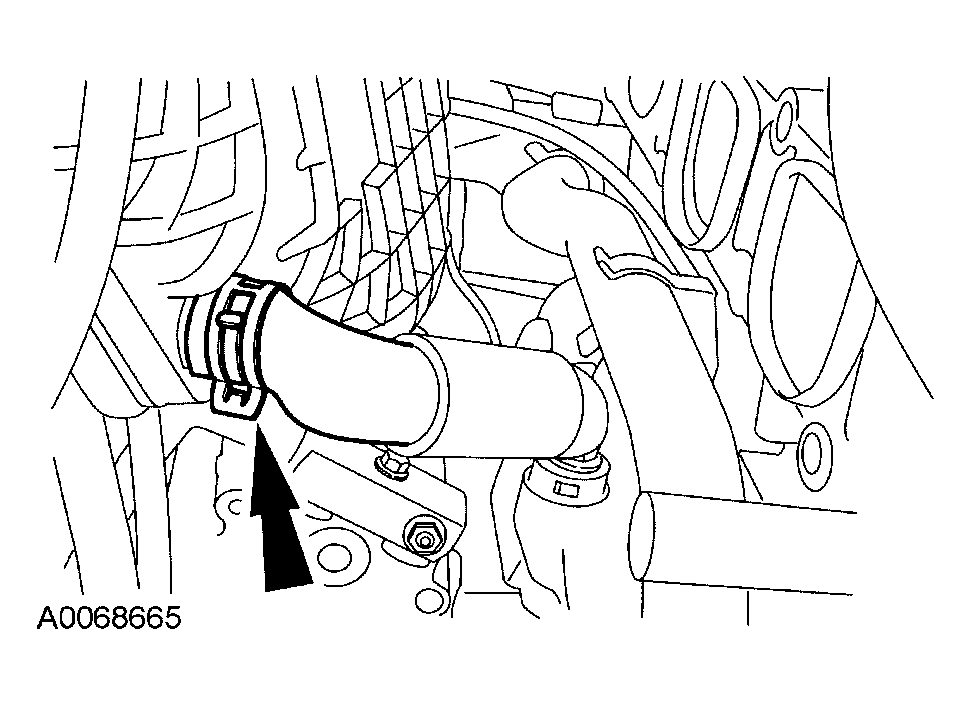

    Fig 17: Disconnecting Positive Crankcase Ventilation Hose
    G04035386Courtesy of FORD MOTOR CO.
  20. Remove the exhaust gas recirculation (EGR) tube.
    Fig 18: Removing Exhaust Gas Recirculation Tube
    G04035387Courtesy of FORD MOTOR CO.
  21. Remove the intake manifold.
