Valve Cover: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

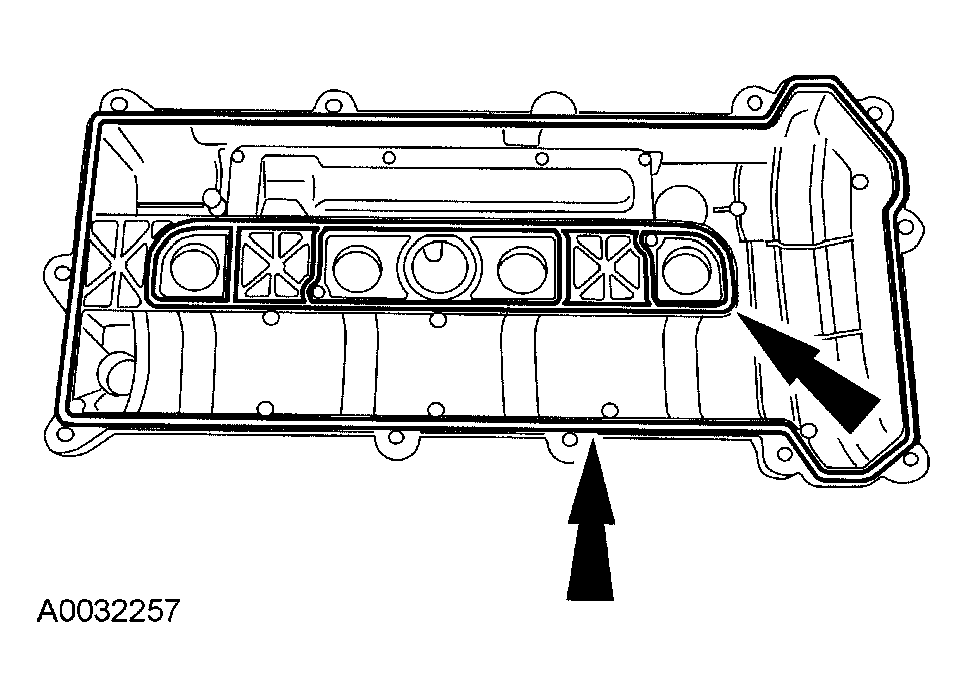

  1. Inspect the valve cover gaskets for damage. Install new gaskets if necessary.
    Fig 1: Inspecting Valve Cover Gaskets
    G04035420Courtesy of FORD MOTOR CO.

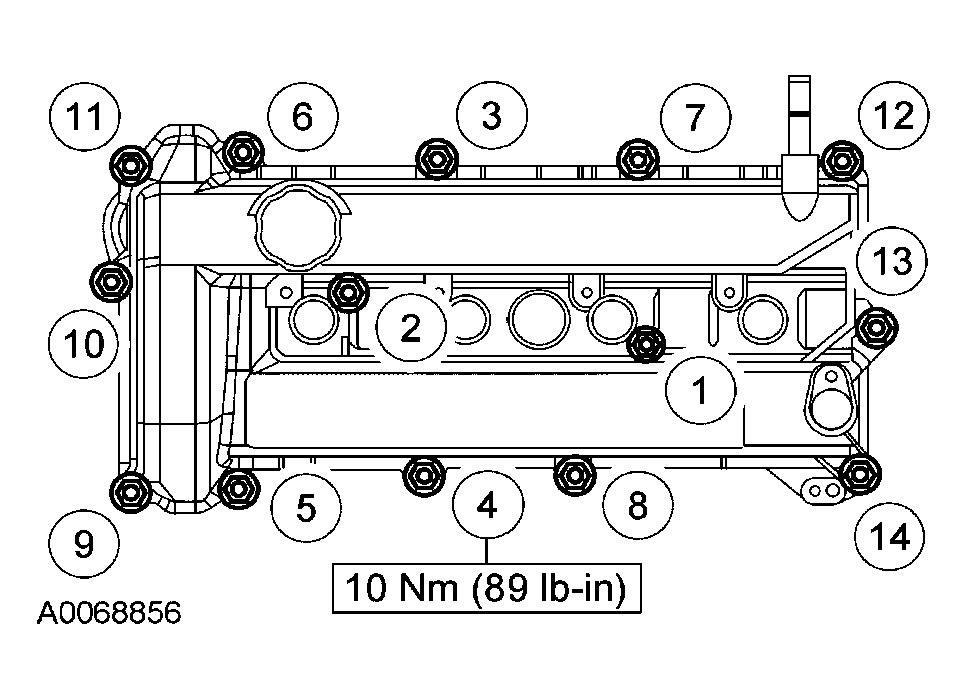

  2. Install the valve cover and bolts. Tighten the bolts in the sequence shown.
    Fig 2: Installing Valve Cover And Bolts
    G04035421Courtesy of FORD MOTOR CO.

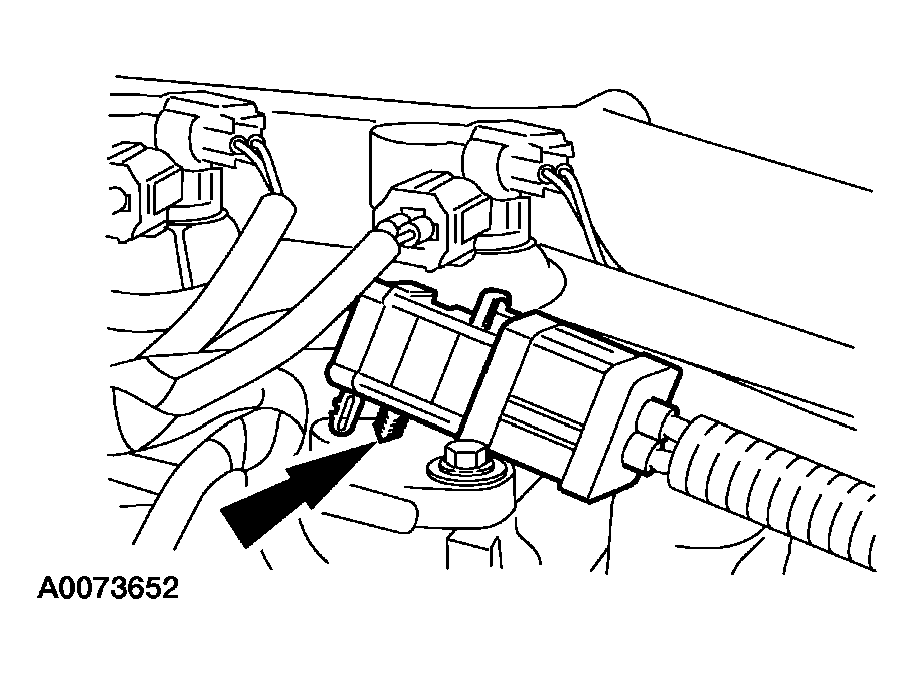

  3. Reposition the fuel injection supply wiring harness.
    Fig 3: Positioning Fuel Injection Supply Wiring Harness
    G04035422Courtesy of FORD MOTOR CO.

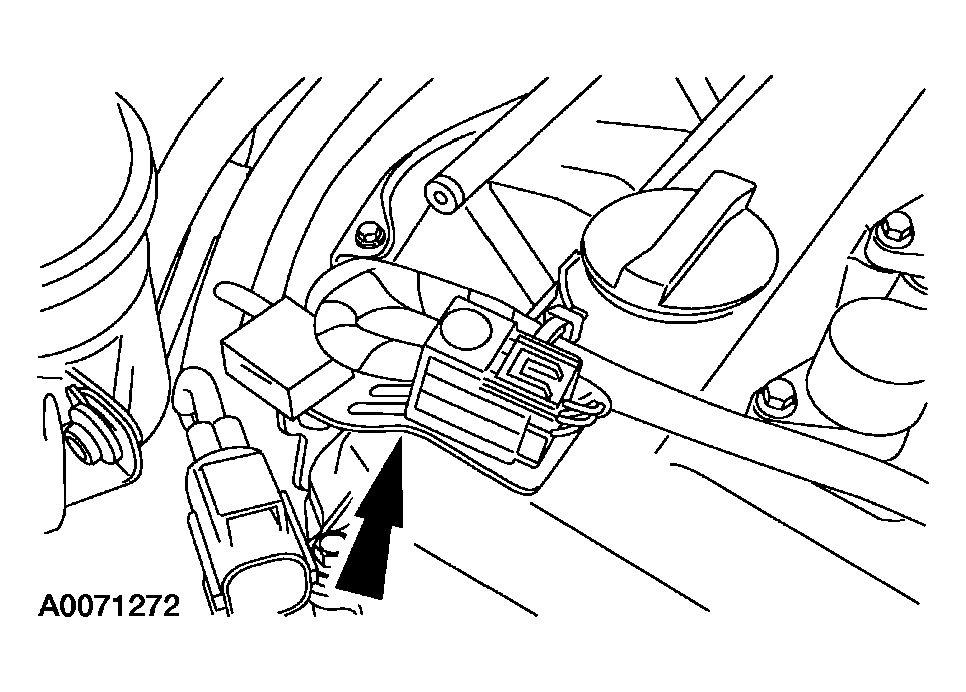

  4. Install the bracket and bolt.
    • Install the two wire connectors on the bracket.
    Fig 4: Installing Wire Connectors On Bracket
    G04035423Courtesy of FORD MOTOR CO.

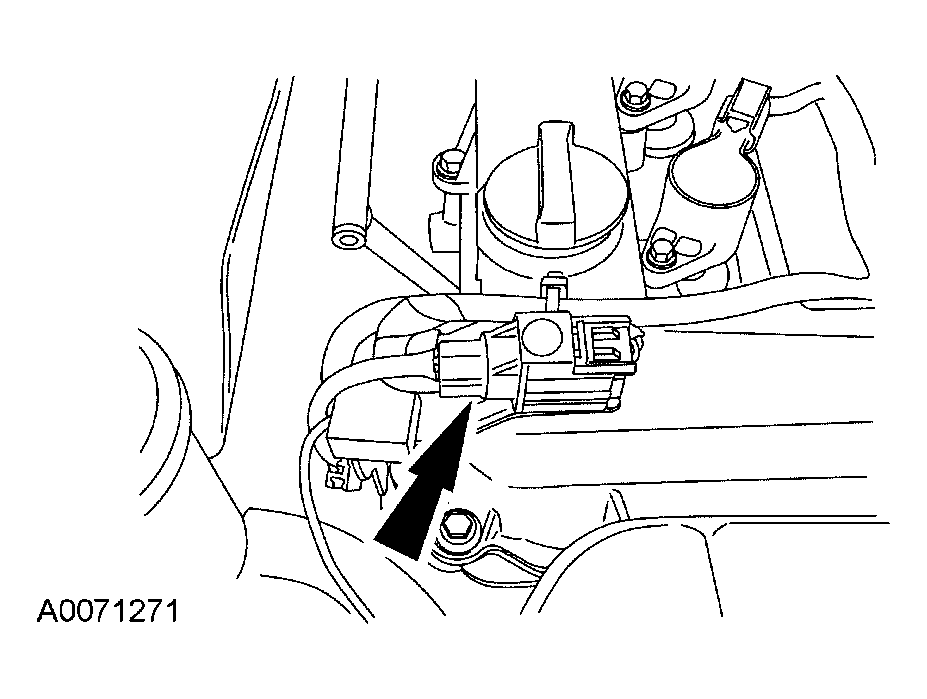

  5. Connect the upper HO2S electrical connector.
    Fig 5: Connecting Upper Ho2S Electrical Connector
    G04035424Courtesy of FORD MOTOR CO.

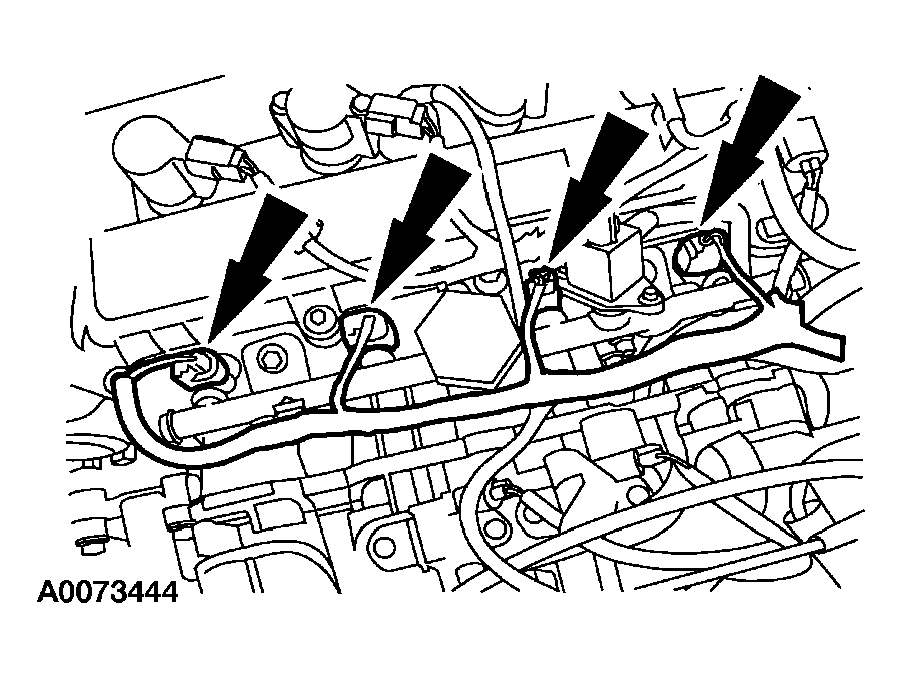

  6. Connect the fuel injector electrical connectors.
    Fig 6: Connecting Fuel Injector Electrical Connectors
    G04035425Courtesy of FORD MOTOR CO.

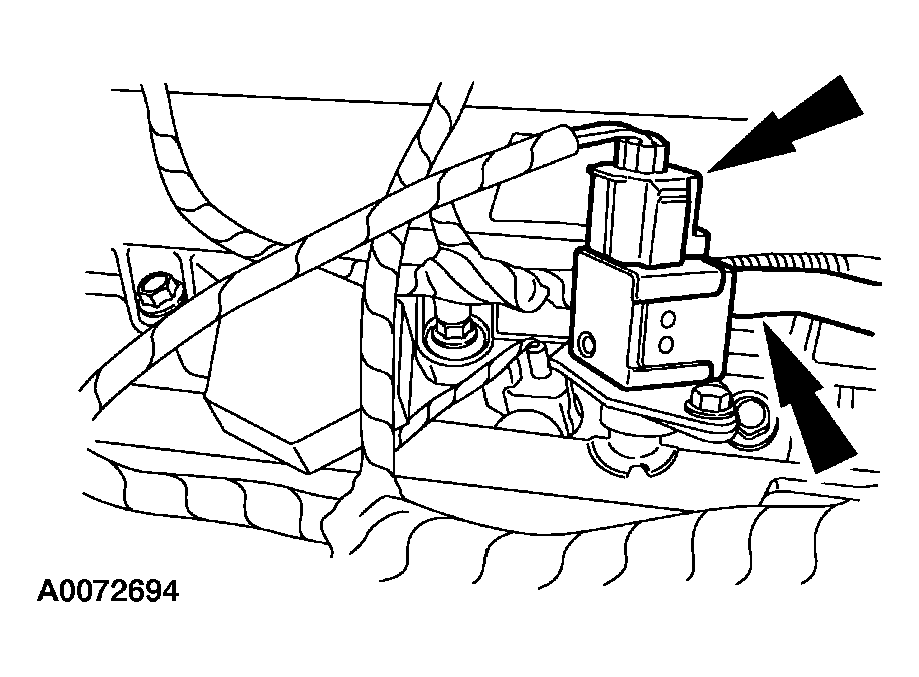

  7. Connect the fuel pressure regulator electrical connector and the vacuum hose.
    Fig 7: Connecting Fuel Pressure Regulator Electrical Connector And Vacuum Hose
    G04035426Courtesy of FORD MOTOR CO.

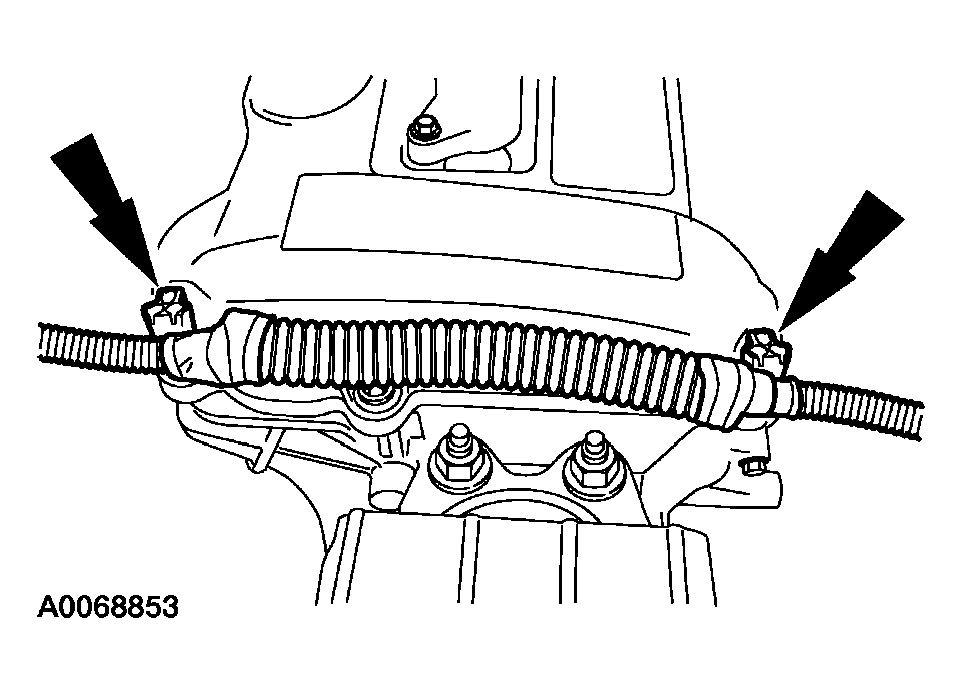

  8. Install the wiring harness retainers on the valve cover studs.
    Fig 8: Installing Wiring Harness Retainers On Valve Cover Studs
    G04035427Courtesy of FORD MOTOR CO.

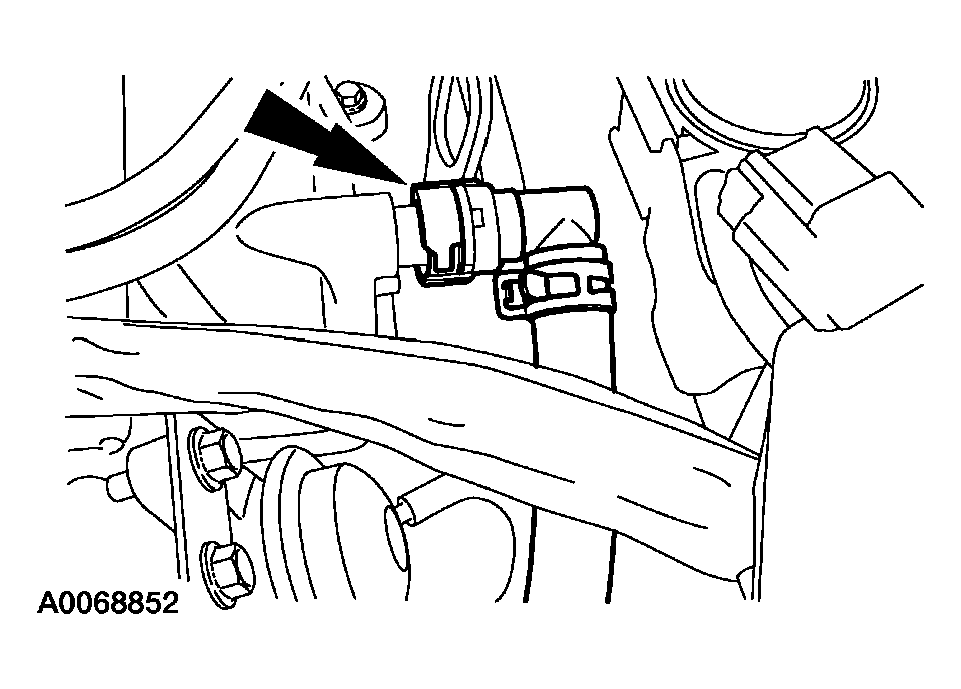

  9. Install the breather tube on the valve cover.
    Fig 9: Installing Breather Tube On Valve Cover
    G04035428Courtesy of FORD MOTOR CO.
  10. Install the coil-on-plug assemblies.
      NOTE: Push the coil assemblies down firmly until the boot seal has sealed the access hole.
    1. Install the coil assemblies.
    2. Install the coil assembly bolts.
    Fig 10: Installing Coil Assembly Bolts
    G04035429Courtesy of FORD MOTOR CO.

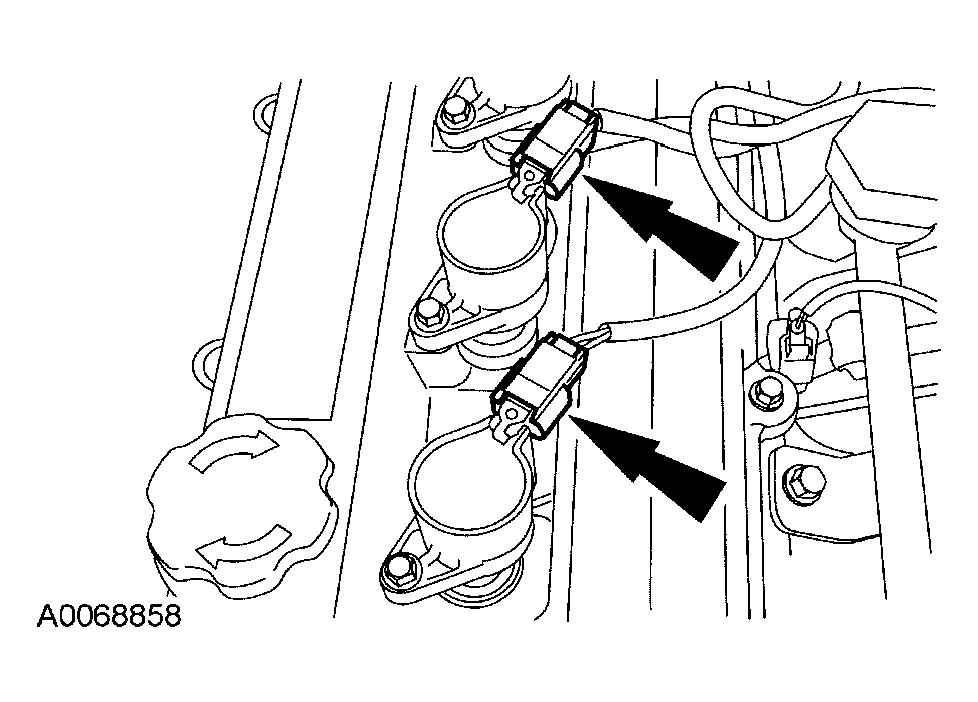

  11. Connect the ignition coil electrical connectors.
    Fig 11: Connecting Ignition Coil Electrical Connectors
    G04035430Courtesy of FORD MOTOR CO.

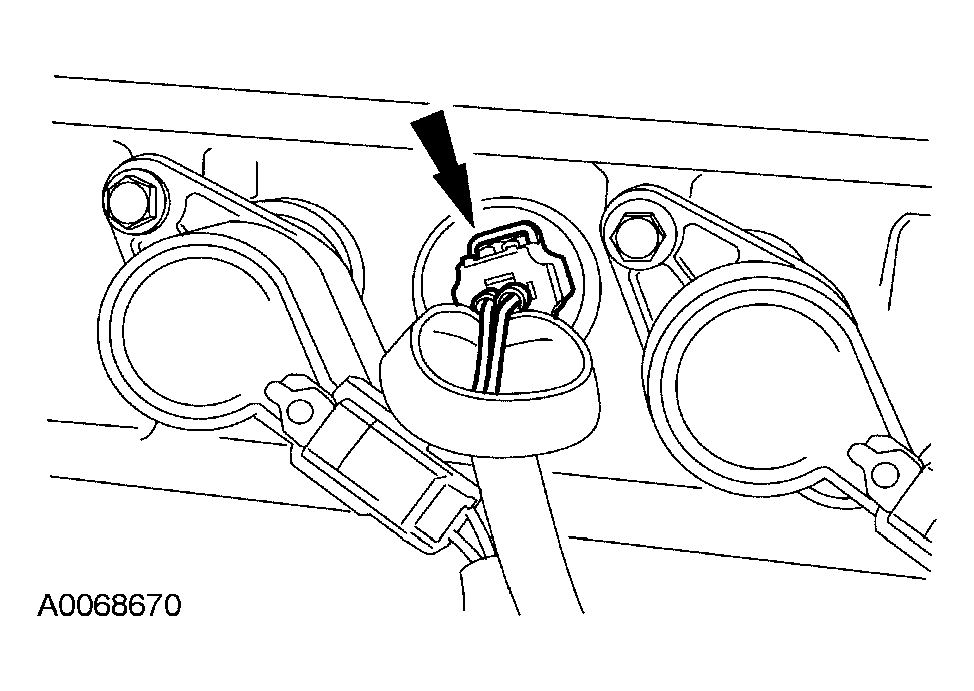

  12. Connect the cylinder head temperature (CHT) sensor electrical connector.
    Fig 12: Connecting Cylinder Head Temperature Sensor Electrical Connector
    G04035431Courtesy of FORD MOTOR CO.

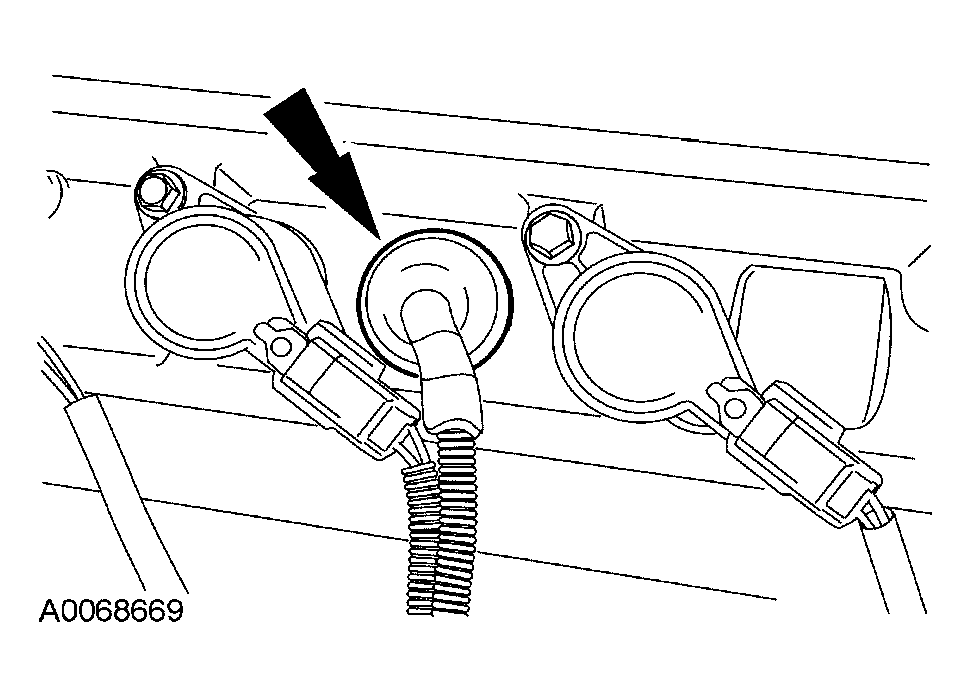

  13. Position the CHT boot.
    Fig 13: Positioning CHT Boot
    G04035432Courtesy of FORD MOTOR CO.

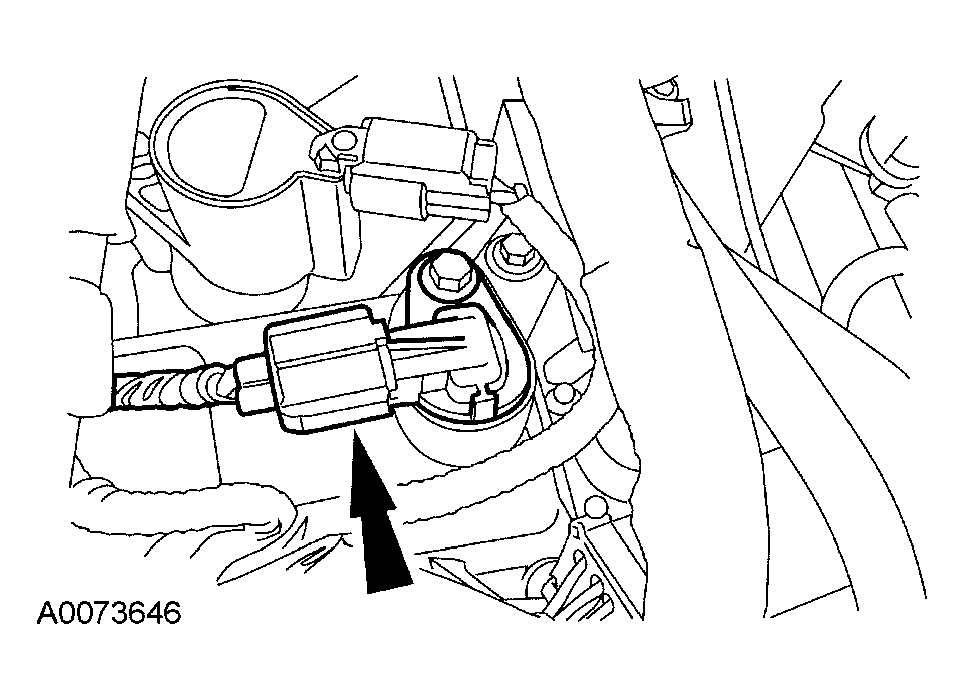

  14. Connect the camshaft position (CMP) sensor electrical connector.
    Fig 14: Connecting Camshaft Position Sensor Electrical Connector
    G04035433Courtesy of FORD MOTOR CO.
  15. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
