Fuel Temperature Sensor - 3.0L (4V): Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
FUEL TEMPERATURE SENSOR SPECIAL TOOL SPECIFICATIONS - 3.0L (4V)

G03976133
Disconnect Tool, Spring Lock coupling (1/2 inch) 310-D004 (D87L-9280-B) or equivalent
FUEL TEMPERATURE SENSOR MATERIAL SPECIFICATIONS - 3.0L (4V)

Item Specification
SAE 5W-20 Premium Synthetic Blend XO-5W20-QSP or equivalent WSS-M2C930-A

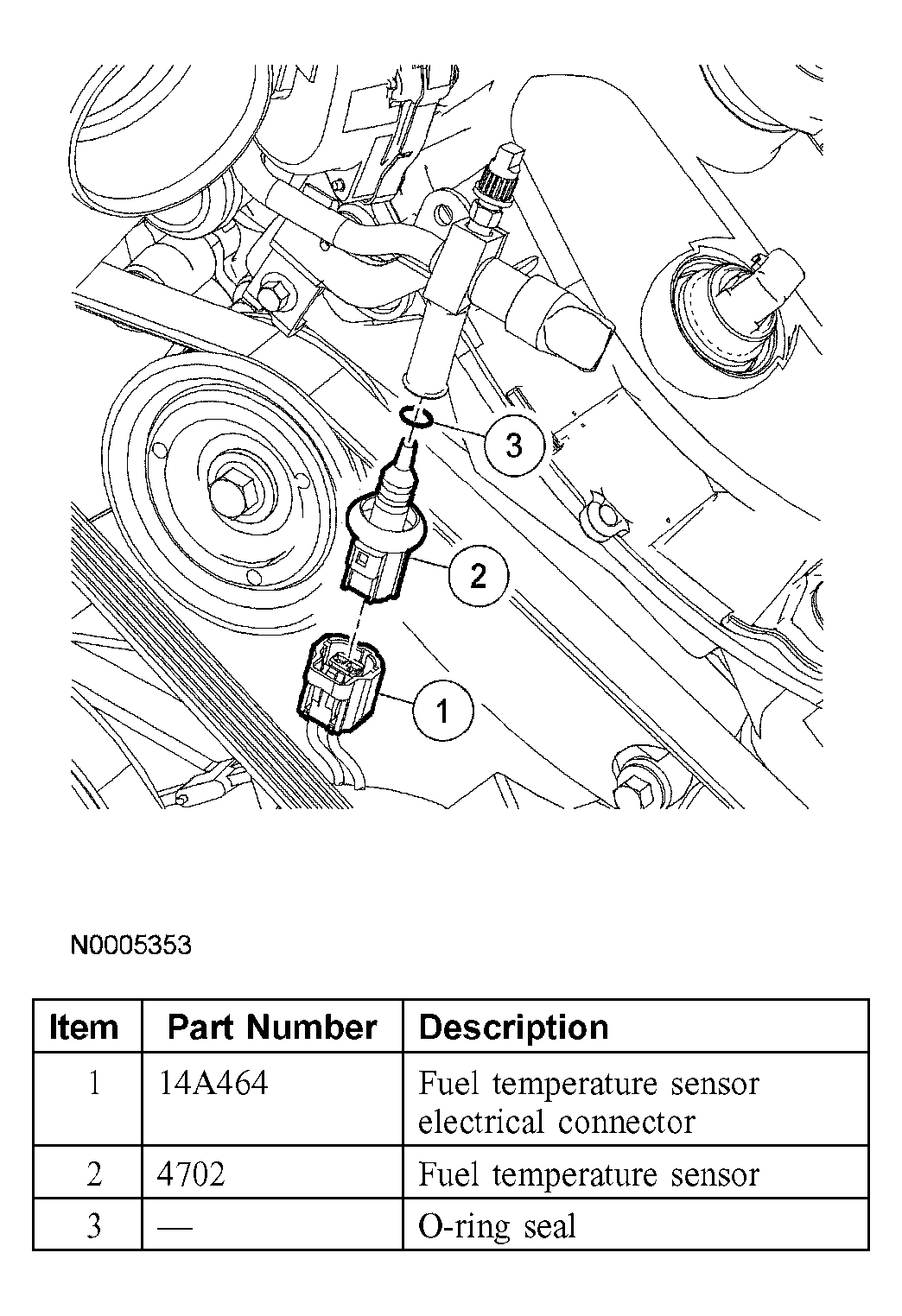

Fig 1: Exploded View Of Fuel Temperature Sensor - 3.0L (4V)
G03997130Courtesy of FORD MOTOR CO.
