Axle Pivot Bushing: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The new pivot bushing must be free of grease, oil or other contamination.

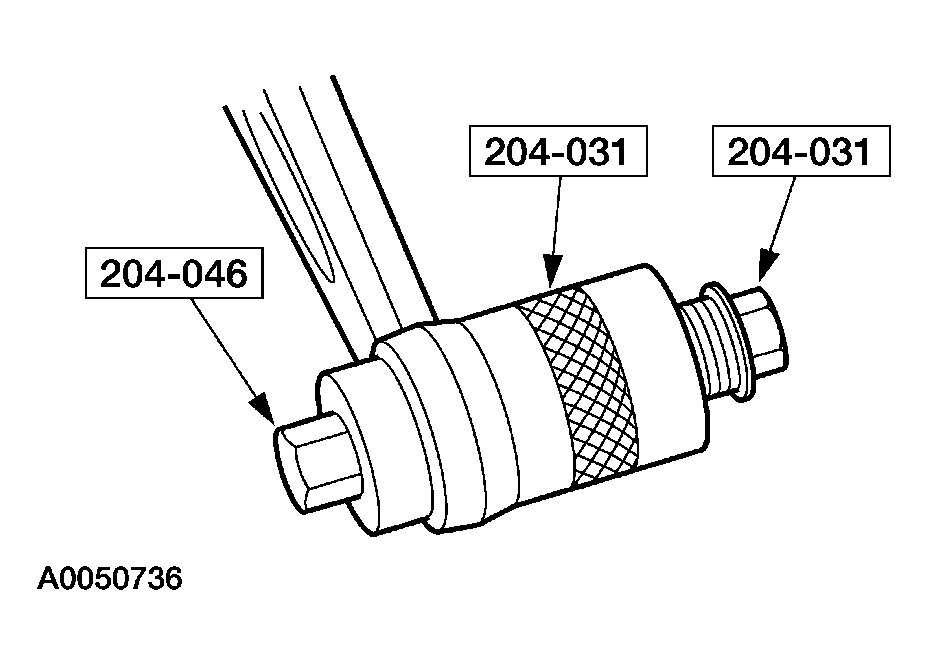

Fig 1: Positioning New Pivot Bushing On Front Axle

Courtesy of FORD MOTOR CO.

Position the new pivot bushing.
- Position the special tools and the new pivot bushing on the front axle.
Press the new pivot bushing into the front axle, leaving the specified clearance between the pivot bushing flange and the front axle.

Fig 2: Identifying Clearance Between Pivot Bushing Flange And Front Axle
Courtesy of FORD MOTOR CO.
Position the front axle, bolt and nut into the pivot bracket. Tighten the nut hand-tight.

Fig 3: Positioning Front Axle, Bolt And Nut Into Pivot Bracket
Courtesy of FORD MOTOR CO.
Install the front coil spring. For additional information, refer to SPRING .
Lower the vehicle and, with the vehicle weight on the suspension, tighten the axle pivot nut.

Fig 4: Tightening Axle Pivot Nut
Courtesy of FORD MOTOR CO.
